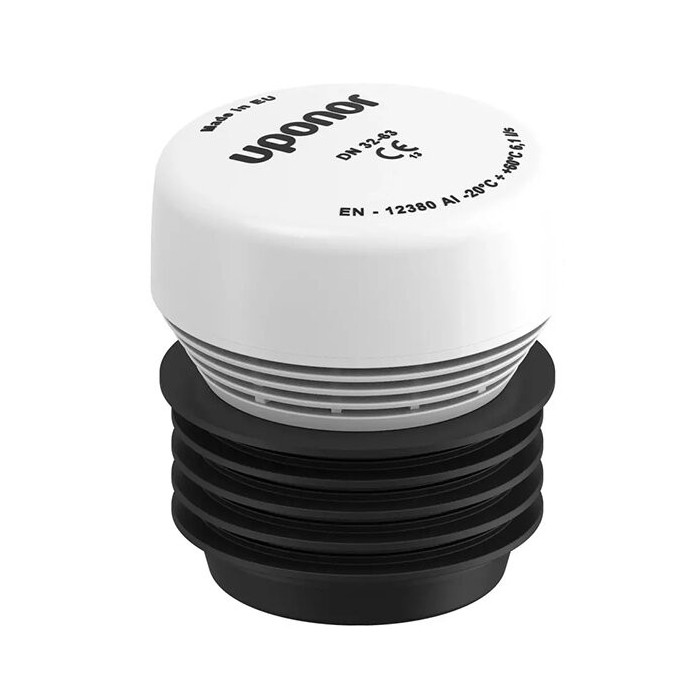

Vacuum valve (suction) UPONOR Hypair 32-63, 1134572
SKU:
1134572
20.00 €
/pcs.
vnt.
vnt.
16,53 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Vacuum valve (vent) UPONOR Hypair 32-63, 1134572

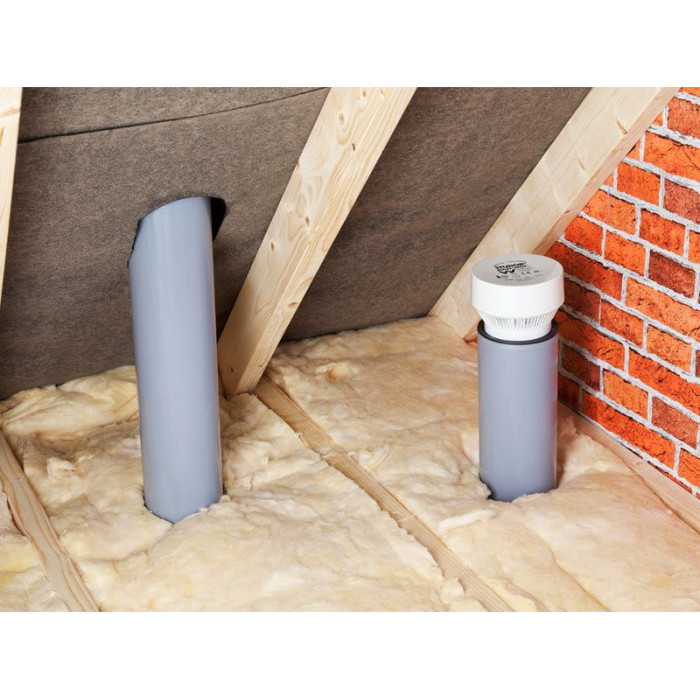

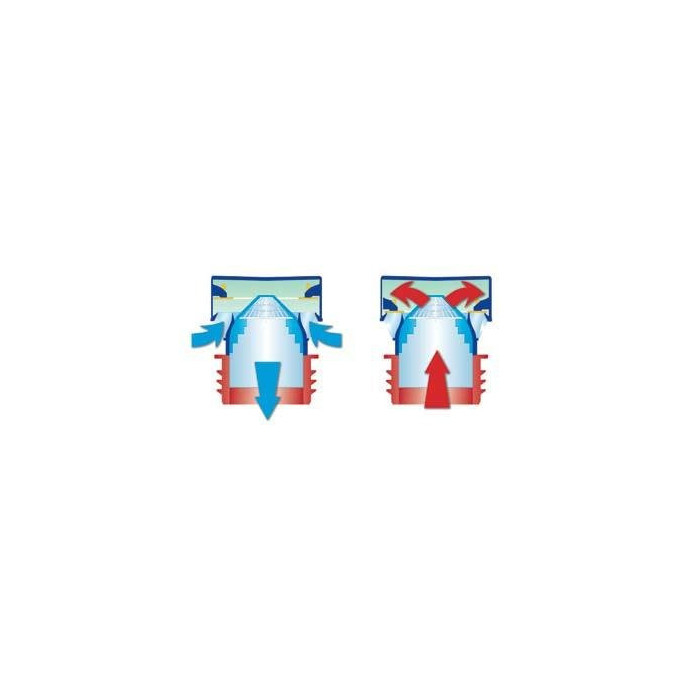

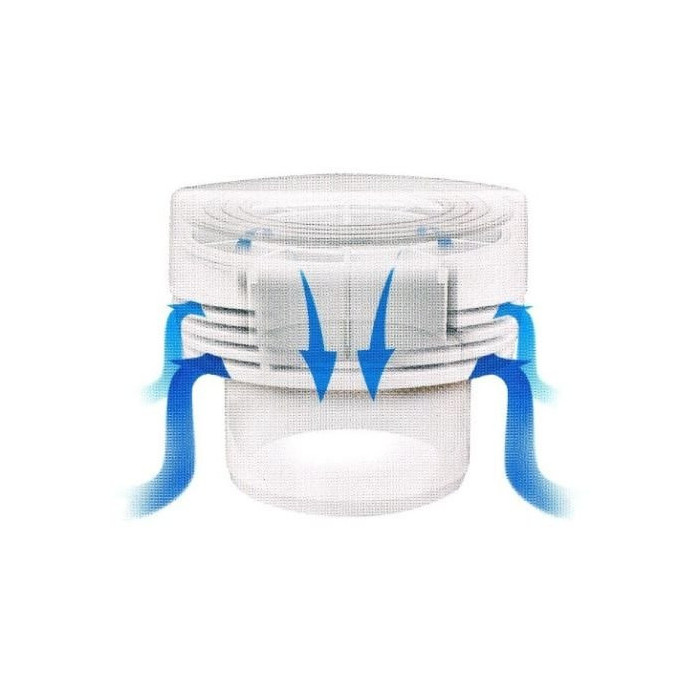

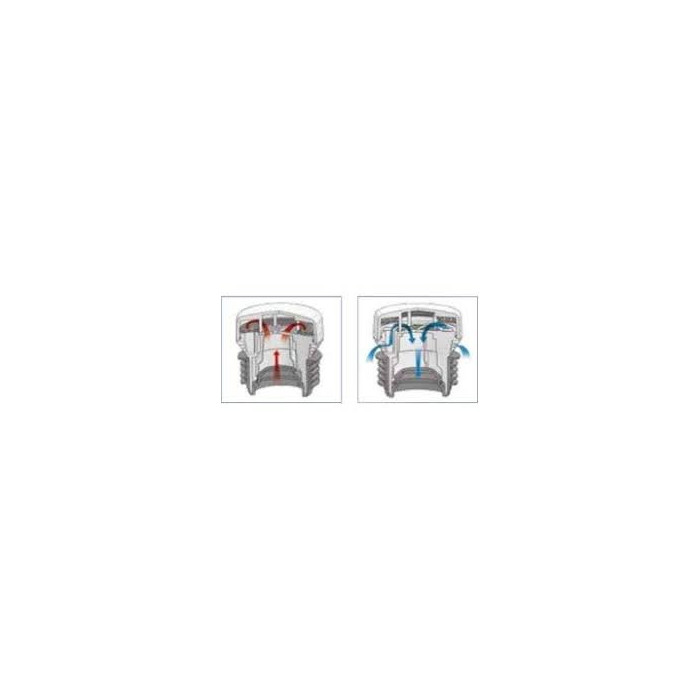

Air Vacuum valves are parts of sewage systems that replace conventional ventilation pipes. This way, the stack ends in the room or attic, saving materials (ventilation pipe, its casing when transitioning to the roof structure), reducing labor costs, maintaining the roof's airtightness, and avoiding the possibility of system freezing. When the pressure in the pipe is greater than or equal to the room pressure, the valve is closed and does not release odors from the sewage pipe into the room. When the pressure in the pipe decreases, the valve opens and allows air into the system.
Technical specifications:
- Air flow: 6.1 l/s
- Diameter: 32-63 (32, 40, 50, 63 mm outer pipe diameter)
- Color: white
- Material: ABS
- Dimensions: total height 78 mm, diameter 70 mm, inlet part into the pipe 35 mm
- Ambient temperature can range from cold -20°C to 60°C

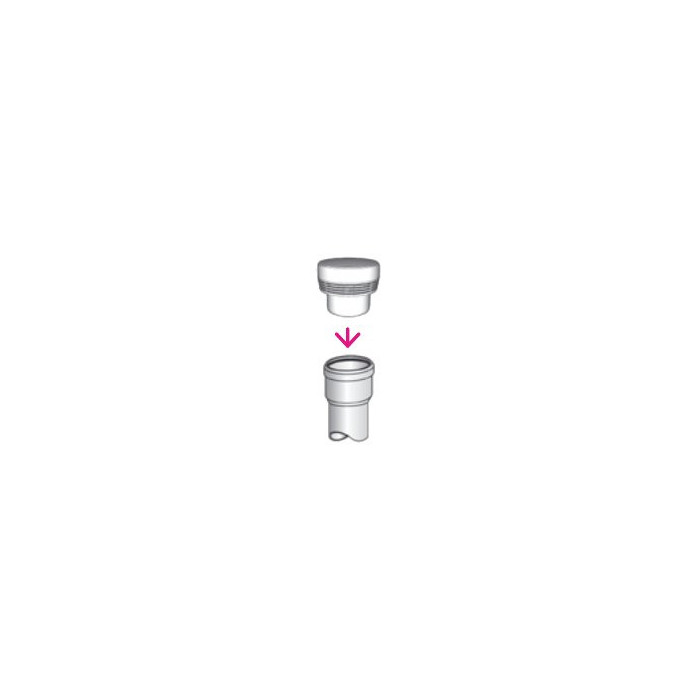

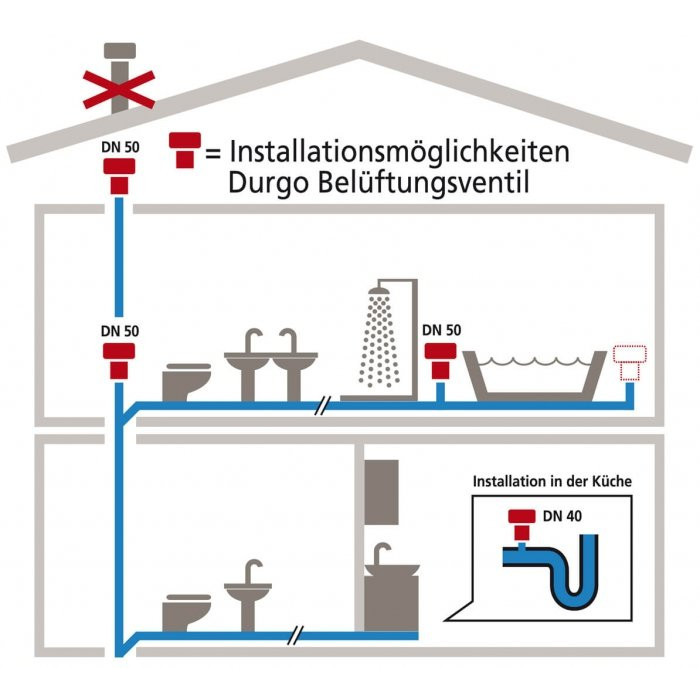

- Installation at the cut end of the pipe, in places where air can easily access and be inspected. In rooms where the temperature is below 60°C, the upper part of the valve packaging must be left.
- Cannot be installed outdoors, above the roof
- Meets the requirements of standard EN 12380
Warranty: 2 years
Manufacturer: UPONOR (Germany)
