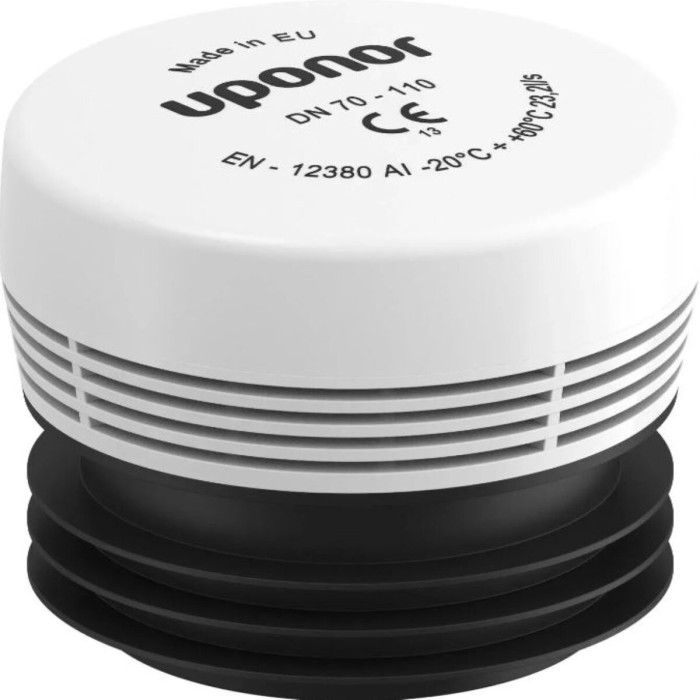

Vacuum valve (suction) UPONOR Hypair 70-110, 1134571
SKU:
1134571
39.99 €
/pcs.
vnt.
vnt.
33,05 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Vacuum valve (vent) UPONOR Hypair 70-110, 1134571

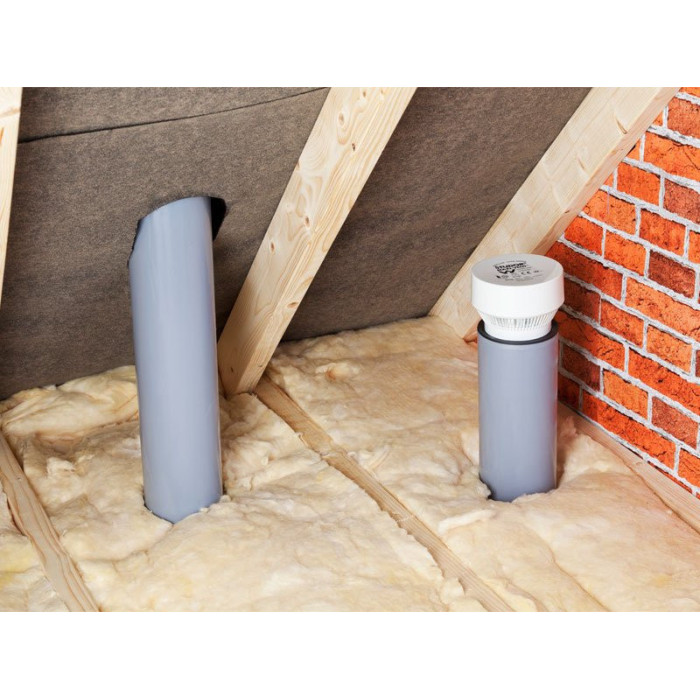

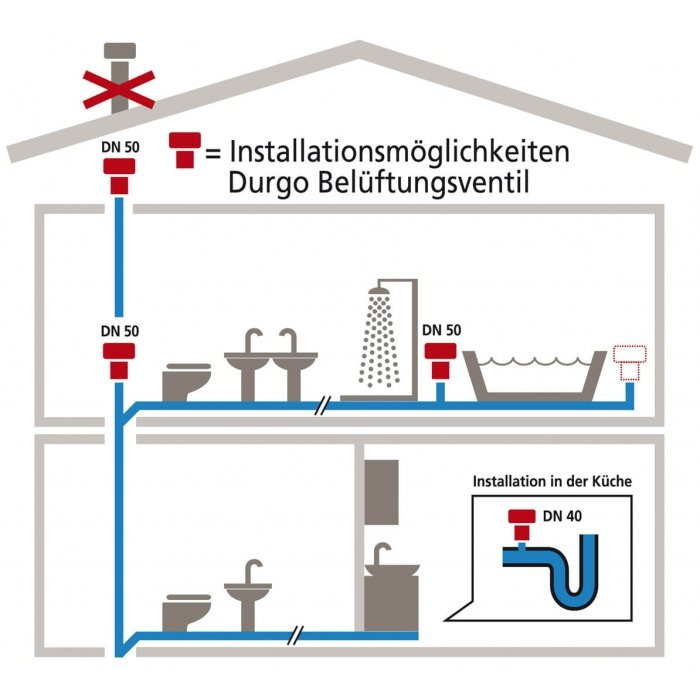

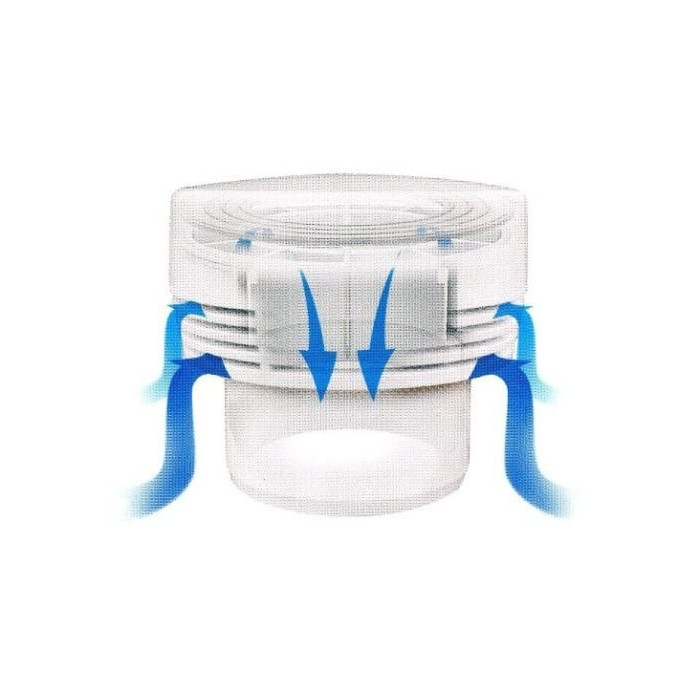

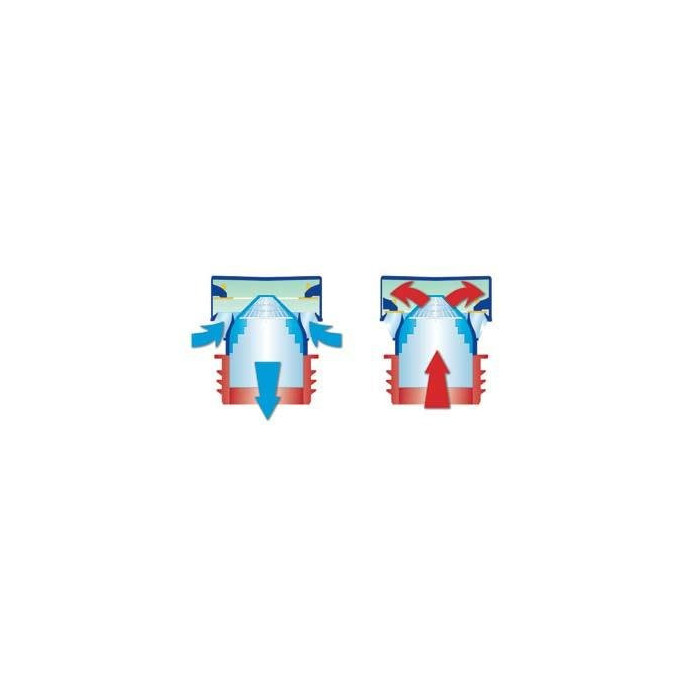

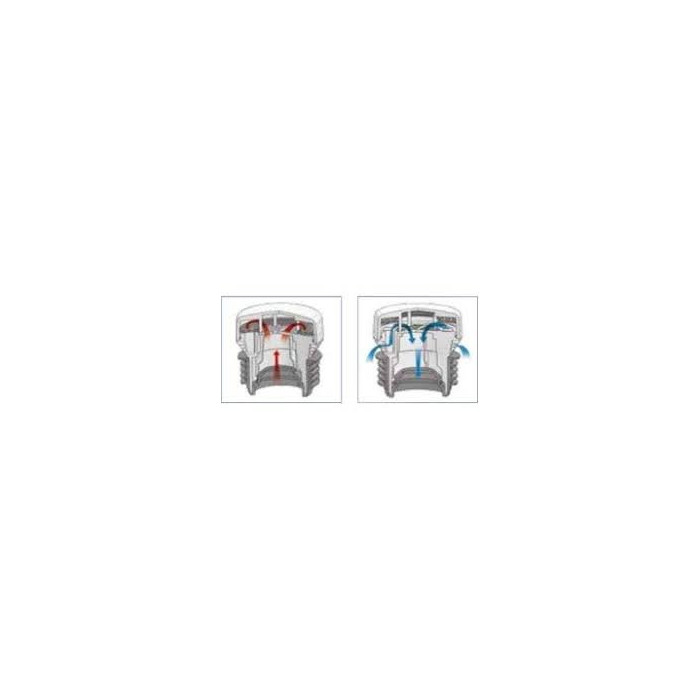

Air Vacuum valves are components of sewage systems that replace conventional ventilation pipes. This way, the stack ends in the room or attic, saving materials (ventilation pipe, its casing when transitioning to the roof structure), reducing labor costs, maintaining the roof's airtightness, and avoiding the possibility of system freezing. When the pressure in the pipe is greater than or equal to the room pressure, the valve is closed and does not release odors from the sewage pipe into the room. When the pressure in the pipe decreases, the valve opens and allows air into the system.
Technical specifications:
- Air flow: 25.4 l/s
- Diameter: 70-110 (75, 90, 110 mm external pipe diameter)
- Color: white
- Material: ABS
- Dimensions: total height 108 mm, diameter 125 mm, inlet part into the pipe 46 mm
- Ambient temperature can range from cold -20°C to 60°C

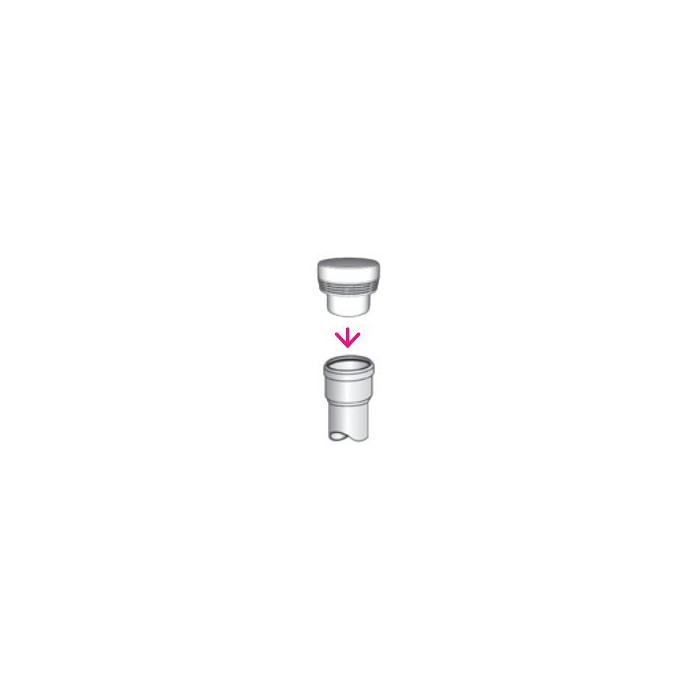

- Installation at the cut end of the pipe, in places where air can easily access and can be inspected. In rooms where the temperature is below 60°C, the upper part of the valve packaging must be left open.
- Do not install outdoors, above the roof
- Meets the requirements of standard EN 12380
Warranty: 2 years
Manufacturer: UPONOR (Germany)
