Elbow is secured with UPONOR Q&E evolution 20 x 1/2""
SKU:
1023035
8.01 €
/pcs.
vnt. 10.02 €
vnt. 10.02 €
6,62 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |

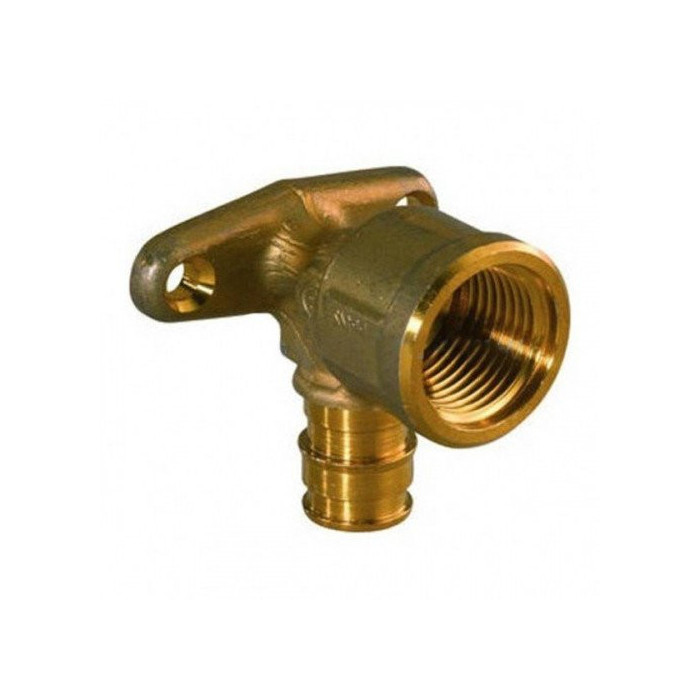

Elbow fitting UPONOR Q&E evolution 20 x 1/2"
Technical specifications:
- Maximum working temperature: 20° - +120°C
- Maximum working pressure: 10 bar
- Thread: 1/2" internal, 2 fixing points
- Connection can be installed with UPONOR pipe expansion tool
- Standard: UNI EN 10226-1
- Material: brass
- Certificates: German DVGW, WRAS
- Installation: first, the ring is placed on the pipe, the end of the pipe is expanded with the pipe expansion tool, the fitting is pushed into the pipe
- Purpose: for drinking water, plumbing, heating systems
- To install this fitting, you will additionally need one red, blue, or white ring
- Suitable for UPONOR manufacturer pipes: Aqua Pipe, Radi Pipe, Combi Pipe, with diameter and wall thickness: DN 20 x 2.0 mm, 20 x 2.8 mm
Areas of use include both new installations and repairs, upgrades, and equipment replacements.
More information is available in the downloadable files.
Manufacturer: UPONOR (Germany)
Product images are for illustrative purposes only and are examples. Video links in the product description are for informational purposes only, and the information provided may differ from the actual product. The colors, inscriptions, parameters, dimensions, sizes, functions, and/or any other characteristics of original products may appear differently due to their visual properties, so please refer to the product specifications listed in the product descriptions. If you have any questions, please contact us via email or phone listed in the contact section.
1023035
Data sheet
| Connection diameter | 20 mm |
|---|---|
| Commodity | Elbow fastening |
| Substance | Brass |
| Jungties skersmuo | 20 mm |
| Prekė | Alkūnė tvirtinama |
| Medžiaga | Žalvaris |
