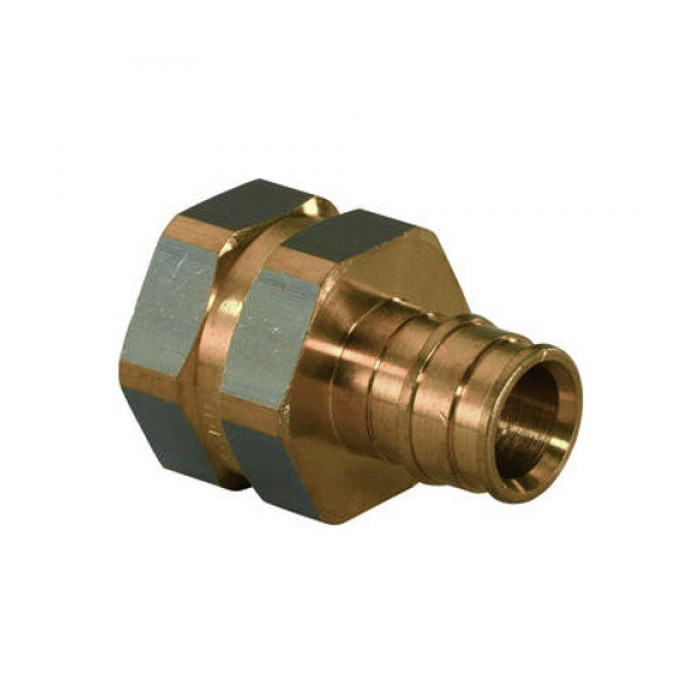

UPONOR Q&E 25 x 1"" middle connector
SKU:
1023013
15.58 €
/pcs.
vnt. 19.48 €
vnt. 19.48 €
12,88 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
UPONOR Q&E 25 x 1" internal connector
Technical specifications:
- Maximum operating temperature: 20° - +120°C
- Maximum operating pressure: 10 bar
- The connector can be installed with the UPONOR pipe expansion tool
- Standard: UNI EN 10226-1
- Thread: 1" internal
- Material: brass
- Certificates: German DVGW, WRAS
- Installation: first, slide the ring onto the pipe, expand the end of the pipe with the pipe expansion tool, insert the connector into the pipe
- Purpose: for drinking water, plumbing, heating systems
- To install this connector, optionally you will need one red, blue, or white ring additionally
- Suitable for UPONOR manufacturer pipes: Aqua Pipe, Radi Pipe, Combi Pipe, with a diameter and wall thickness: DN 25 x 2.3 mm, 25 x 3.5 mm
Areas of use include both new installations and repairs, upgrades, and equipment replacements.
More information is available in the downloadable files.
Manufacturer: UPONOR (Germany)
