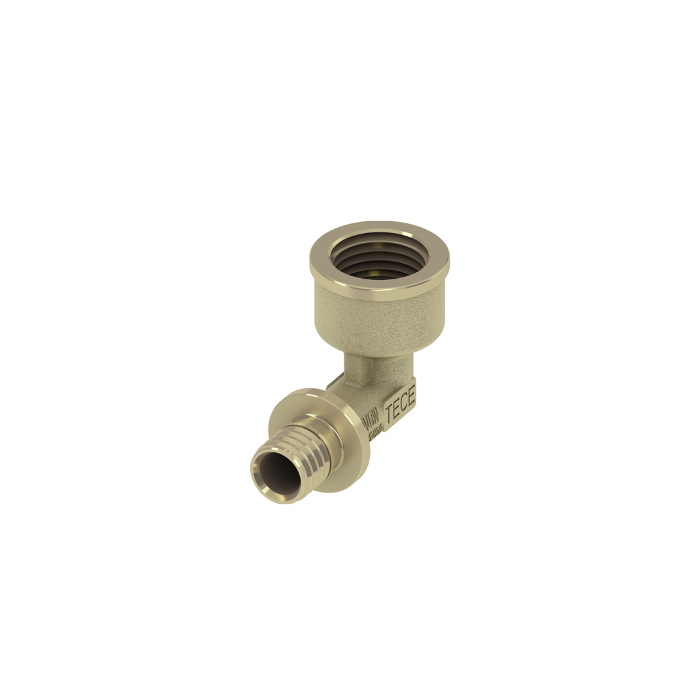

Brass elbow TECEflex 20 x 3/4"" middle, 768002
SKU:
768002
8.48 €
/pcs.
vnt. 11.31 €
vnt. 11.31 €
7,01 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Brass elbow TECEflex 20 x 3/4" inside, 768002
TECEflex - universal pipe system DN 14-63 mm:
The universal pipe system "TECEflex" is designed for the installation of water supply, heating, and compressed air systems
TECEflex - a time-tested connection
TECEflex - the pipe connection technology - is an axial pressing system. Millions of connections made leave no doubt about the reliability and durability of the system. Multi-layer (PE-Xc/AL/PE) and PE-Xc pipes are connected using simple pipe expansion and ring tightening tools. And this has not changed for 25 years.
TECEflex - incorrect connection control. Impossible to miss.
If the connection is made incorrectly, a leak will appear immediately after the system is filled. In other systems, due to poorly made connections, leaks may not appear immediately:
1. Clearly visible incomplete connection. The ring is not tightened all the way.
2. A leak appears immediately after filling the system.
3. Correctly made connection. No leak, the ring is fully tightened on the fitting part and THIS IS CLEARLY NOTICED.
Bronze - for future engineering systems...
From December 1, 2013, only bronze fittings can be used in water supply systems installed in Germany and the Netherlands. It is only a matter of time before this will also be the case with us. The new material fully meets the tightened requirements for engineering systems. It complies with the currently valid standards:
- Water supply systems DIN 1988 / DIN EN 806
- Gas supply systems DVGW TRGI 2008
- Heating systems
- Compressed air systems
PPSU - plastic fittings for heating and water supply
As an alternative to brass fittings, cheaper fittings made of PPSU can also be used. PPSU is a plastic that is particularly resistant to mechanical impact and shocks. DVGW recommended "TECEflex" PPSU fittings are resistant to corrosion, shocks, pressure, temperature effects, and are also durable. Impeccable hygiene properties guarantee excellent use of these fittings. PPSU fittings are applied in heating and water supply systems.
Standard brass
An inexpensive metal alternative to bronze - fittings made from standard brass. Fittings can be used without restrictions in heating and compressed air systems, with certain restrictions in drinking water systems. They can also be used for gas installations.
Technical parameters:
-
Diameter: 20 x 3/4" internal thread
- Purpose: for capping end points, installed with TECE PE-Xc/Al/PE-RT multi-layer pipes and PE-Xc 5S pipes
- Color: brass
- Material: brass
NOTE: additionally, a tightening ring must be purchased according to the connection diameter: 20 mm - 1 pc
Manufacturer: TECE (Germany)
Product images are for illustrative purposes only and are examples. The video links in the product description are for informational purposes only, so the information provided may differ from the actual product. The colors, inscriptions, parameters, dimensions, sizes, functions, and/or any other properties of the original products may appear differently than in reality due to their visual characteristics, so please refer to the product specifications listed in the product descriptions. If you have any questions, please contact us via email or phone listed in the contact section.
768002
Data sheet
| Connection diameter | 20 mm |
|---|---|
| Commodity | Elbow with internal thread |
| Substance | Brass |
| Jungties skersmuo | 20 mm |
| Prekė | Alkūnė su vidiniu sriegiu |
| Medžiaga | Žalvaris |
