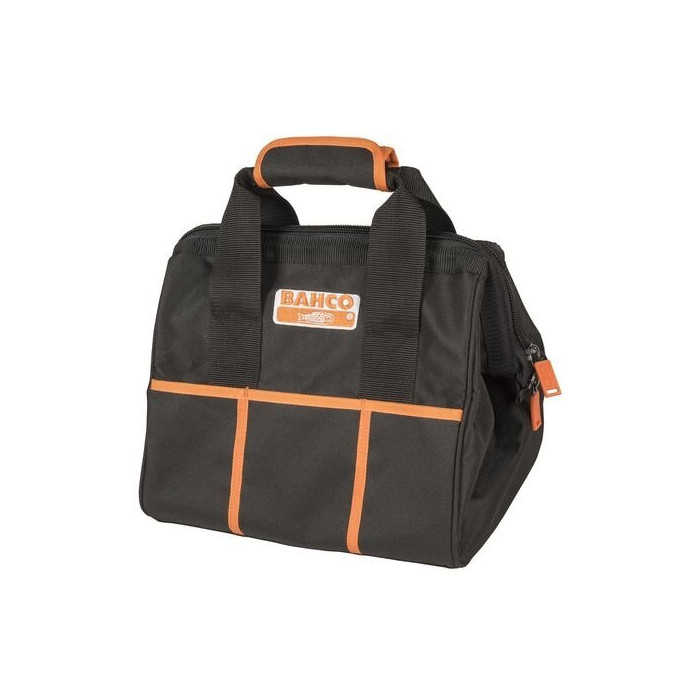

Closed textile bag with handles BAHCO 330 mm
SKU:
4750FB6-13
21.95 €
/pcs.
vnt. 29.42 €
vnt. 29.42 €
18,14 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Hydraulic tank without insulation KAMEN SH1na1; kvs 3.5 m3/h; up to 40 kW
Typically, a hydraulic tank is used in systems that have multiple heating circuits (e.g., for convector heaters and underfloor heating) with different requirements, and each of them has a separate pump. Modern installations are also increasingly using various heat sources, such as an automatic pellet boiler, or a gas boiler and a heat pump, etc. The installation is such that each system can operate independently, and the pumps do not interfere with each other's operation.
Hydraulic tanks have a very simple design and control device, but they play an extremely important role in heating systems. It is a closed space, usually made of steel, to which the connecting sockets of the primary circuit (heat source/sources) are welded on one side, and the secondary circuit (installation side) on the other. The primary side supplies heat to the hydraulic tank, while the secondary side is its receiver.
Technical specifications:
- Connection - Dn 1"
- Thermometer connection diameter - Dn 1 1/2"
- Max. pressure - Dn 6 bar
- Max operating temperature - 110 °C
- Kvs - 3.8 m³/h
- Designed for systems up to 70 kW
- Water capacity 2.8 l
- Glycol concentration 50% maximum
- Expansion tank body - steel
- Without insulation
- In the package, there is an automatic air vent and a discharge valve
The hydraulic tank is most commonly used in systems that have multiple heating circuits (e.g., for convector heaters and underfloor heating) with different requirements, and each of them has its own pump. In modern installations, various heat sources are also increasingly used, such as an automatic pellet boiler and a fireplace with a water circuit, or a gas boiler and a heat pump, etc. Each such system can operate independently, and the circulation pumps do not interfere with each other's operation.
Warranty: 2 years
Manufacturer: KAMEN (Poland)
