Circulating pump Grundfos Alpha1 L 25/1-4 130 mm
SKU:
99160578
170.01 €
/pcs.
vnt. 206.91 €
vnt. 206.91 €
140,50 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |

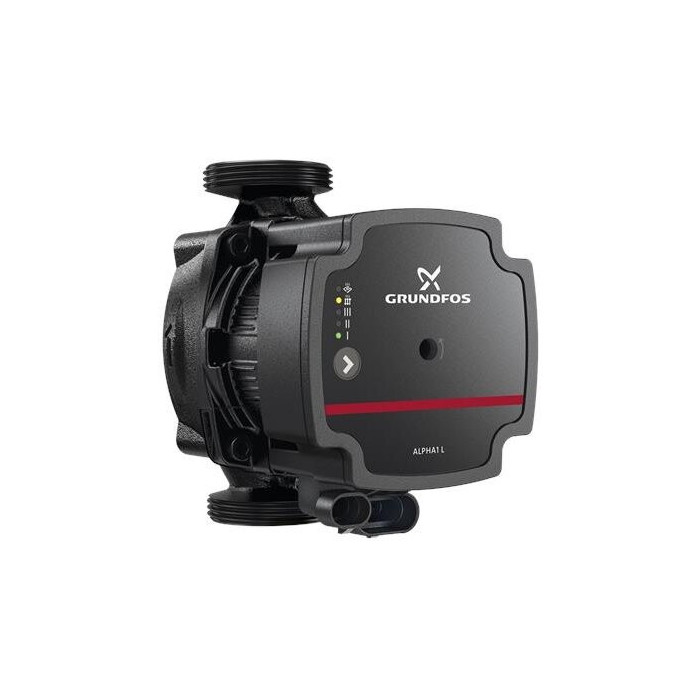

Circulating pump GRUNDFOS Alpha1 L 25/1-4 130 mm
Construction:
Wet rotor circulating pump with threaded connection, EC motor resistant to blocking currents, and integrated electronic power control device.
The GRUNDFOS Alpha1 L pump housing is made of cast iron alloy, the impeller is made of polypropylene, and the shaft is made of stainless steel with metal-impregnated carbon fiber sliding bearings.
Usage:
- All water heating systems, air conditioning, and industrial circulating devices
- The control mode can be selected depending on the application - radiator or underfloor heating
Technical specifications:
- Energy efficiency coefficient (EVEK) <0.20
- Working medium temperature: -10 C - +95 C
- Power supply voltage: 1-230 V, 50 Hz
- Protection class: IP x 2 D
- Threaded connections: 1" x 1 1/2"
- Maximum working pressure: 10 bar
- 1-4 - pressure created by the pump (m)
- 130 - installation length mm
Permissible working media:
- Flow rate max. Qmax: 2.5 m3/h
- Max. lifting height Hmax: 4 m
Note: connections for the pump are sold separately, you can find them below under related products
More information in downloadable files.
Warranty: 2 years
Manufacturer: GRUNDFOS (Germany)
