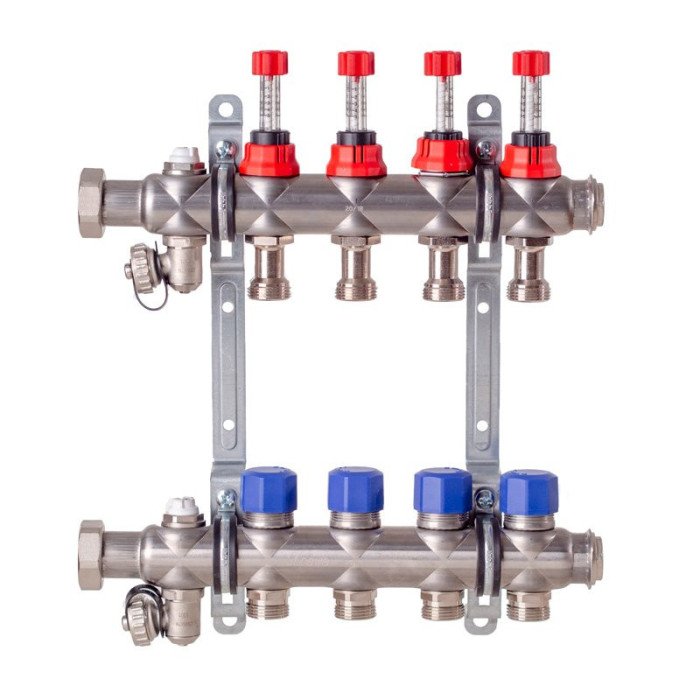

MEPA adjustable underfloor heating manifold 4 circuits with flow meters
SKU:
631040
109.88 €
/pcs.
vnt. 169.04 €
vnt. 169.04 €
90,81 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Adjustable floor heating collector MEPA 4 circuits with flow meters
The collector is made of high-quality stainless steel. The flow meters (flow indicators) integrated into the flow line are used to manually or electronically adjust and visually monitor the instantaneous coolant flow.
Advantages:
- With flow meters (flow indicators). The flow meters can be adjusted manually, they are made in Germany, ensuring a long service life and good water permeability
- Complete set. The collector is assembled, which greatly speeds up the installation
- High-quality stainless steel. Stainless steel is superior to brass because the metal is stronger, ensuring a longer service life
- Additional stainless steel reinforcement. The collector is additionally reinforced at the flow meters, valves, and discharge outlets, ensuring a long service life and multiple uses
- Ease of installation. The collector is universal, can be connected from either the left or right side
- Connection. On the sides with a free nut 1" internal, there is no need to buy more expensive dismountable valves
- Collector venting. Manual or automatic venting options are available
- Mountings. Metal brackets are sturdy and convenient for installation.
- Adjustment. The collector can be adjusted manually or with installed electric drives
- German quality. Made in Germany
- Wide range. The possibility to adapt other MEPA products such as mixing units, electric drives, room thermostats, and other floor heating equipment.
Technical specifications:
- With flow meters (flow indicators)
- Number of circuits - 4 circuits
- Supply branch with integrated precise adjustment valves
- Return branch with integrated valves for electric drive
- Collector length: 295 mm
- Floor heating pipes are connected to the collector nipples (circuits) using 3/4" eurocone connections, which you will find below in related products.
- Includes 3/4" nipples, caps, brackets, discharge valves, optionally with manual or automatic venting
Warranty: 10 years
More information in downloadable files.
Manufacturer: MEPA (Germany)
