We regulate the MEPA 14-loop floor heating manifold with flow meters.
SKU:
631140
373.06 €
/pcs.
vnt. 573.94 €
vnt. 573.94 €
308,31 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |

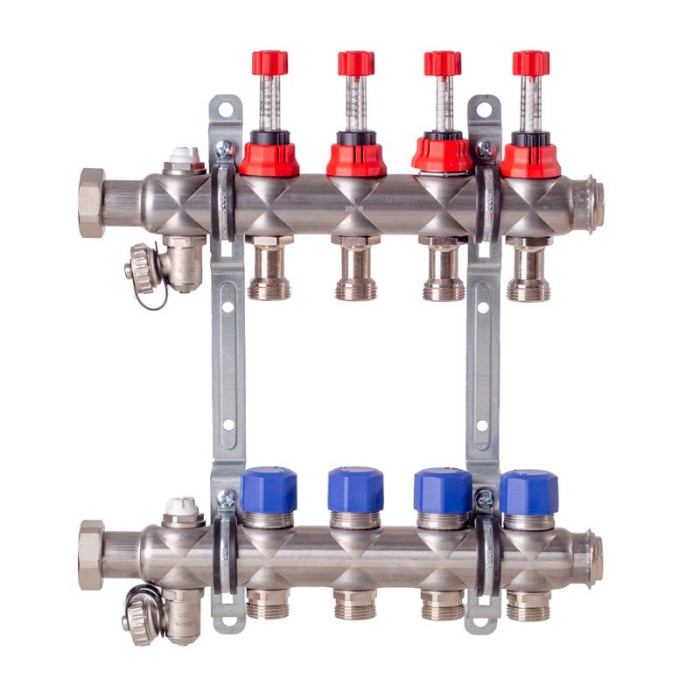

Adjustable floor heating collector MEPA 14 circuits with flow meters
The collector is made of high-quality stainless steel. The flow meters (flow gauges) integrated into the flow line are used to manually or electronically adjust and visually monitor the instantaneous coolant flow.
Advantages:
- With flow meters (flow gauges). The flow meters can be adjusted manually, they are made in Germany, ensuring a long service life and good water permeability
- Complete set. The collector is assembled, which greatly speeds up installation
- High-quality stainless steel. Stainless steel is superior to brass, as the metal is stronger, ensuring a longer service life
- Additional stainless steel reinforcement. The collector is additionally reinforced at the flow meters, valves, and discharge outlets, ensuring a long service life and multiple uses
- Ease of installation. The collector is universal, can be connected from either the left or right side
- Connection. On the sides with a free nut 1" internal, there is no need to buy more expensive dismountable valves
- Collector venting. Manual or automatic venting options are available
- Mountings. Metal brackets are sturdy and convenient for installation.
- Adjustment. The collector can be adjusted manually or with installed electric drives
- German quality. Made in Germany
- Wide range. The possibility to adapt other MEPA products such as mixing units, electric drives, room thermostats, and other floor heating equipment.
Technical specifications:
- With flow meters (flow gauges)
- Number of circuits - 14 circuits
- Supply branch with integrated precise control valves
- Return branch with integrated valves for electric drive
- Collector length: 745 mm
- Floor heating pipes are connected to the collector nipples (rings) using 3/4" eurocone connections, which you will find below under related products.
- Includes 3/4" nipples, caps, brackets, discharge valves, optionally with manual or automatic venting
Warranty: 10 years
More information in the downloadable files.
Manufacturer: MEPA (Germany)
Product images are for illustrative purposes only and are representative. The video links in the product description are for informational purposes only, and the information provided may differ from the actual product. The colors, inscriptions, parameters, dimensions, sizes, functions, and/or any other properties of the original products may appear differently than in reality due to their visual characteristics, so please refer to the product specifications listed in the product descriptions. If you have any questions, please contact us via the email or phone numbers provided in the contact section.
