MEPA floor adjustable underfloor heating manifold 3 circuits with flow meters included with mixing unit
SKU:
631030-PK
333.05 €
/pcs.
vnt. 512.39 €
vnt. 512.39 €
275,25 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |

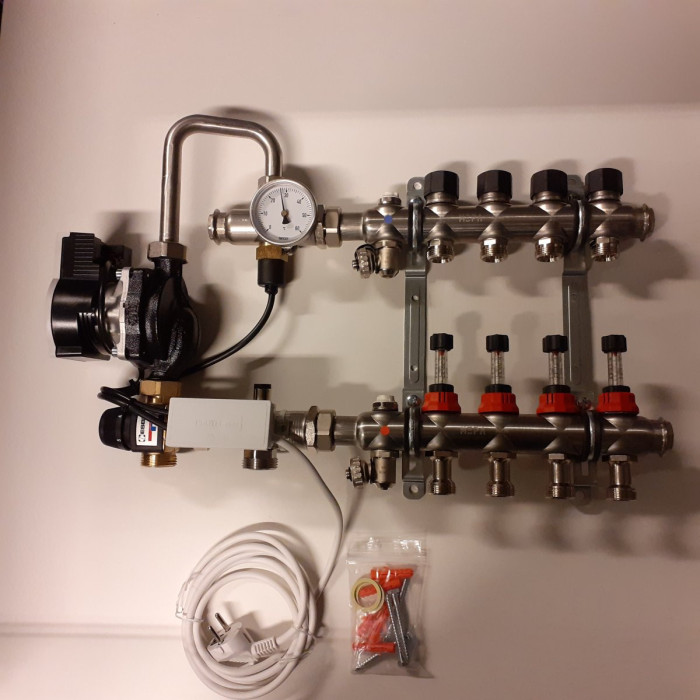

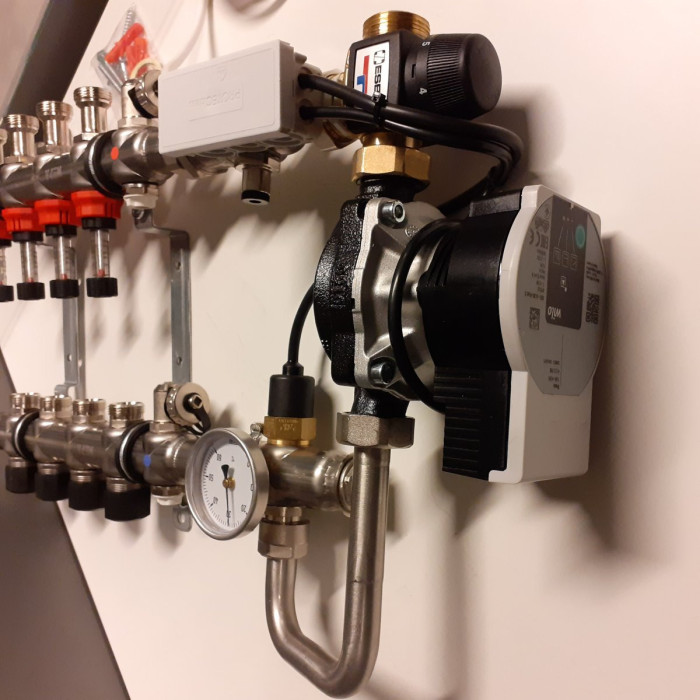

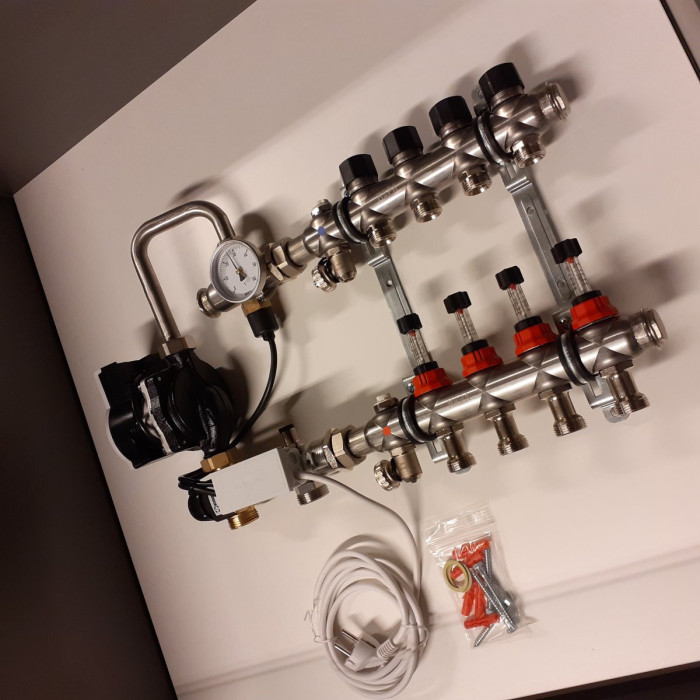

Adjustable floor heating collector MEPA floor 3 circuits with flow meters included with mixing unit
The collector is made of high-quality stainless steel. Flow meters (debitometers) integrated into the flow line are used to manually or electronically adjust and visually monitor the instantaneous coolant flow.
Advantages:
- With flow meters (debitometers). Debitometers can be adjusted manually, they are made in Germany, ensuring long service life and good water permeability
- Complete set. The collector is assembled, which greatly speeds up installation
- High-quality stainless steel. Stainless steel is superior to brass as the metal is stronger, ensuring a longer service life
- Additional stainless steel reinforcement. The collector is additionally reinforced at the debitometers, valves, and outlets, ensuring long service life and multiple uses
- Ease of installation. The collector is universal, can be connected from both the left and right sides
- Connection. On the sides with a free nut 1" internal, there is no need to buy more expensive detachable valves
- Collector venting. Manual or automatic venting options are available
- Mountings. Metal brackets are sturdy and convenient for installation.
- Adjustment. The collector can be adjusted manually or with installed electric drives
- German quality. Made in Germany
- Wide range. Ability to adapt other MEPA products for mixing units, electric drives, room thermostats, and other underfloor heating equipment.
- Bypass function. The underfloor heating mixing unit has a bypass function that protects the system from overheating.
Technical specifications:
- With flow meters (debitometers)
- Number of circuits - 3 circuits
- Supply branch with integrated precise adjustment valves
- Return branch with integrated valves for electric drive
- Collector length: 195 mm
- Underfloor heating pipes are connected to the collector nipples (rings) using 3/4" eurocone connections, which you will find below in related products.
- Includes 3/4" nipples, blind plugs, brackets, drain valves, optionally with manual or automatic venting

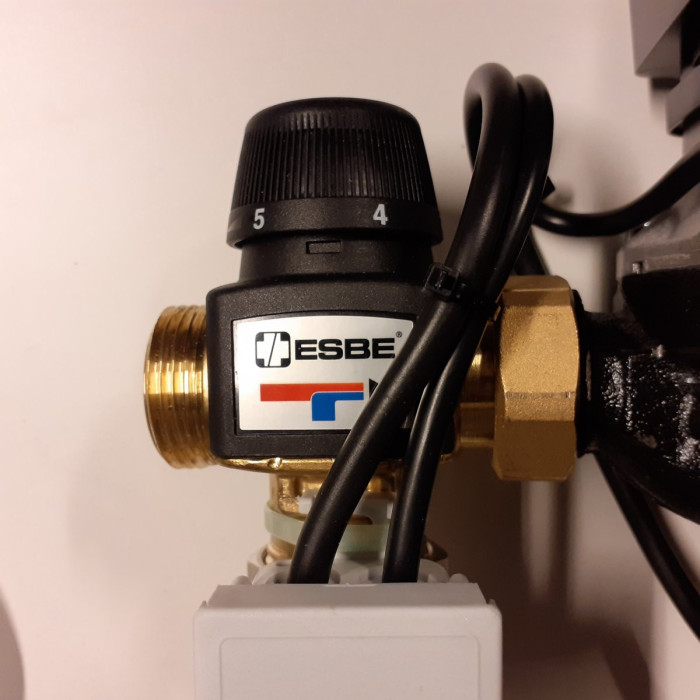

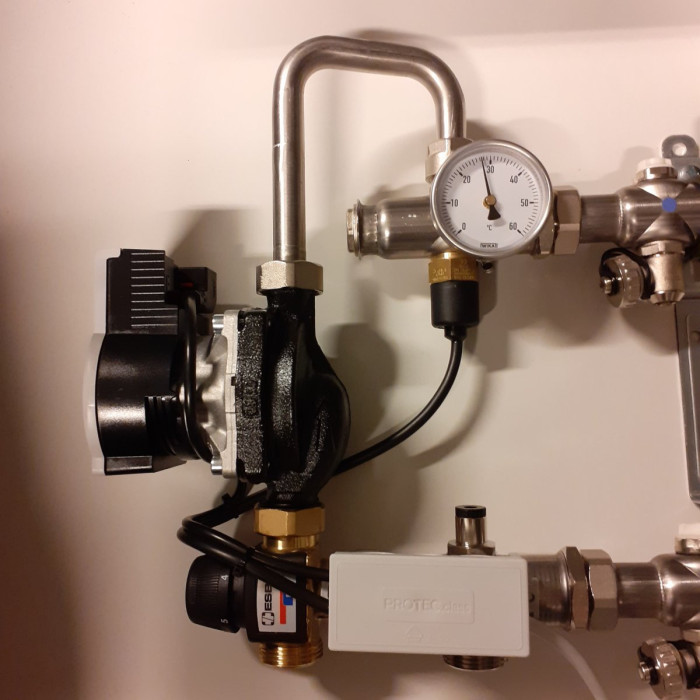

- The mixing unit consists of: electronic Wilo pump, Esbe three-way valve, bypass system, pump unit.
Warranty: 10 years
More information in the downloadable files.
Manufacturer: MEPA (Germany)
