MEPA floor adjustable underfloor heating manifold 5 circuits with flow meters included with mixing unit
SKU:
631050-PK
366.05 €
/pcs.
vnt. 563.16 €
vnt. 563.16 €
302,52 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Adjustable floor heating collector MEPA floor 5 circuits with flow meters included with mixing unit
The collector is made of high-quality stainless steel. Flow meters (flow meters) integrated into the flow line are used to manually or electronically adjust and visually monitor the instantaneous coolant flow.
Advantages:
- With flow meters (flow meters). The flow meters can be adjusted manually, they are made in Germany, ensuring a long service life and good water permeability
- Complete set. The collector is assembled, which greatly speeds up installation
- High-quality stainless steel. Stainless steel is superior to brass because the metal is stronger, ensuring a longer service life
- Additional stainless steel reinforcement. The collector is additionally reinforced at the flow meters, valves, and outlets, ensuring a long service life and multiple uses
- Ease of installation. The collector is universal, it can be connected from either the left or right side
- Connection. On the sides with a free nut 1" internal, there is no need to buy more expensive detachable valves
- Collector venting. Manual or automatic venting options are available
- Mountings. Metal brackets are sturdy and convenient for installation.
- Adjustment. The collector can be adjusted manually or with the installation of electric drives
- German quality. Made in Germany
- Wide range. The possibility to adapt other MEPA products for mixing units, electric drives, room thermostats, and other underfloor heating equipment.
- Bypass function. The underfloor heating mixing unit has a bypass function that protects the system from overheating.
Technical specifications:
- With flow meters (flow meters)
- Number of circuits - 5 circuits
- Supply branch with integrated precise control valves
- Return branch with integrated valves for electric drive
- Collector length: 195 mm
- Underfloor heating pipes are connected to the collector nipples (rings) using 3/4" eurocone connections, which you will find below in related products.
- Includes 3/4" nipples, caps, brackets, drain valves, optionally with manual or automatic venting

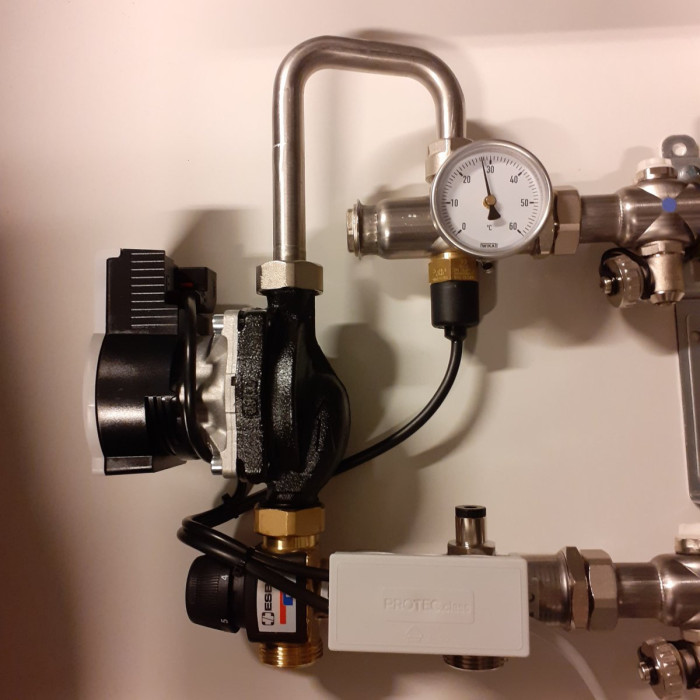

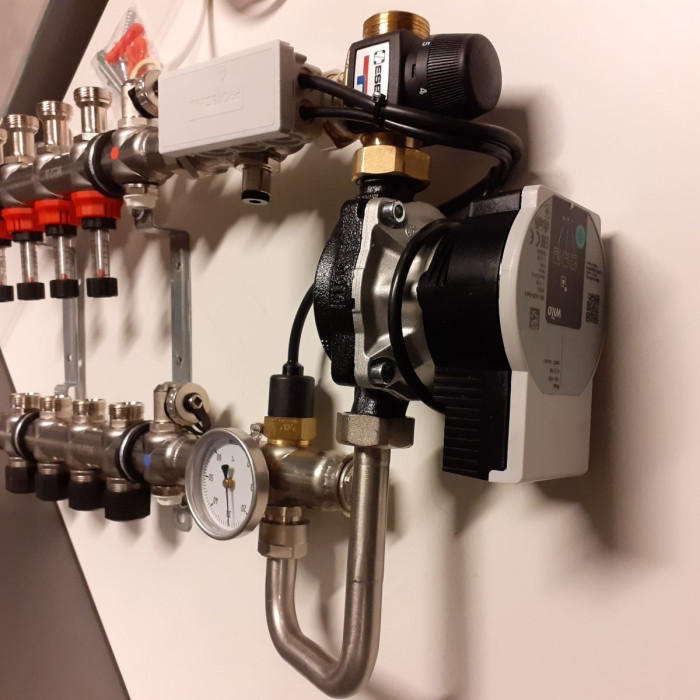

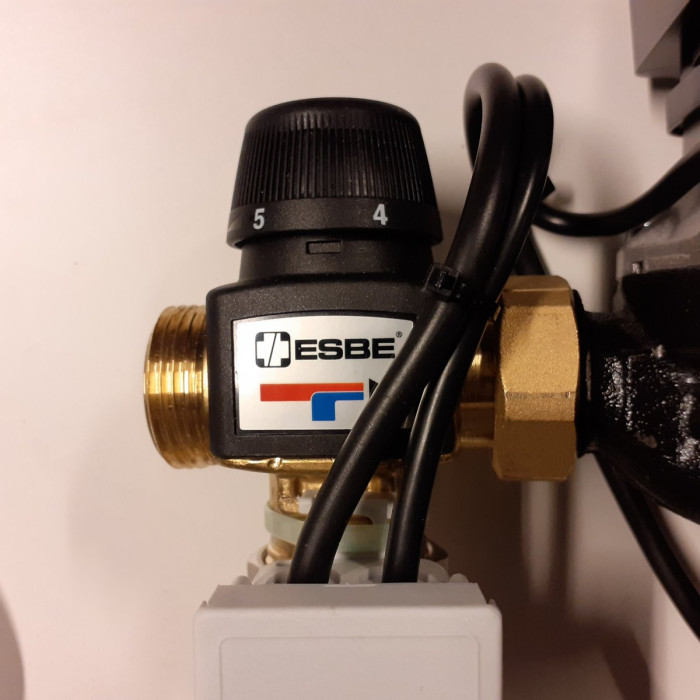

- The mixing unit consists of: electronic Wilo pump, Esbe three-way valve, bypass system, pump unit.
Warranty: 10 years
More information in downloadable files.
Manufacturer: MEPA (Germany)
Product images are for illustrative purposes only and are examples. Video links in the product description are for informational purposes only, so the information provided may differ from the actual product. The colors, inscriptions, parameters, dimensions, sizes, functions, and/or any other properties of original products may appear differently than in reality due to their visual characteristics, so please refer to the product specifications listed in the product descriptions. If you have any questions, please contact us via email or phone listed in the contact section.
