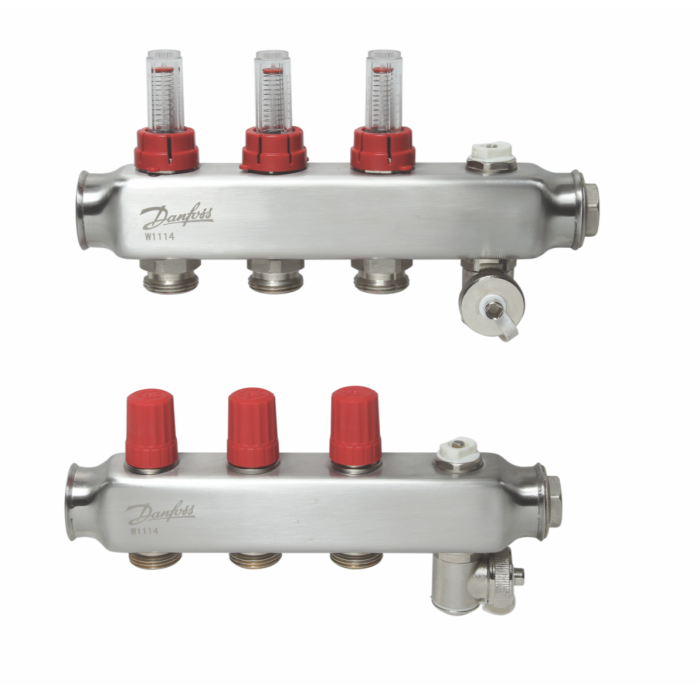

DANFOSS adjustable underfloor heating manifold 3 circuits with flow meters
SKU:
088U0753
105.27 €
/pcs.
vnt. 175.45 €
vnt. 175.45 €
87,00 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Adjustable stainless steel floor heating manifold DANFOSS 3 circuits with flow meters
The manifold is made of high-quality stainless steel. Integrated flow meters in the flow line are used to manually or electronically adjust and visually monitor the instantaneous coolant flow.
Advantages:
- With flow meters. The flow meters can be adjusted manually, they are made in Germany, ensuring long service life and good water permeability.
- Complete set. The manifold is assembled, which greatly speeds up installation.
- High-quality stainless steel. Stainless steel is superior to brass because the metal is stronger, ensuring a longer service life.
- Additional stainless steel reinforcement. The manifold is additionally reinforced at the flow meters, valves, and discharge outlets, ensuring long service life and multiple uses.
- Ease of installation. The manifold is universal, allowing connections from both the left and right sides.
- Connection. On the sides with 1" internal.
- Manifold venting. Manual or automatic venting options are available.
- Mountings. Metal brackets are sturdy and convenient for installation.
- Adjustment. The manifold can be adjusted manually or with installed electric drives.
- Wide range. Ability to adapt other DANFOSS products such as mixing units, electric drives, room thermostats, and other floor heating equipment.
Technical specifications:
- With flow meters
- Number of circuits - 3 circuits
- Material: stainless steel
- Supply branch with integrated precise adjustment valves
- Return branch with integrated valves for electric drive
- Manifold length: 290 mm
- Floor heating pipes are connected to the manifold nipples (rings) using 3/4" eurocone fittings, which can be found below under related products.
- Includes 3/4" nipples, caps, brackets, discharge valves, optionally with manual or automatic venting.
Technical description
https://assets.danfoss.com/documents/84757/AI195986472412lt-LT0401.pdf
Warranty: 2 years
Manufacturer: DANFOSS (Denmark)
Product images are for illustrative purposes only and are representative. Video links in the product description are for informational purposes only, and the information provided may differ from the actual product. The colors, inscriptions, parameters, dimensions, sizes, functions, and/or any other properties of original products may appear differently due to their visual characteristics, so please refer to the product specifications listed in the product descriptions. If you have any questions, please contact us via email or phone listed in the contact section.
088U0753
Data sheet
