Installation box OVENTROP 1022731
SKU:
1022731
105.00 €
/pcs.
vnt.
vnt.
86,78 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |

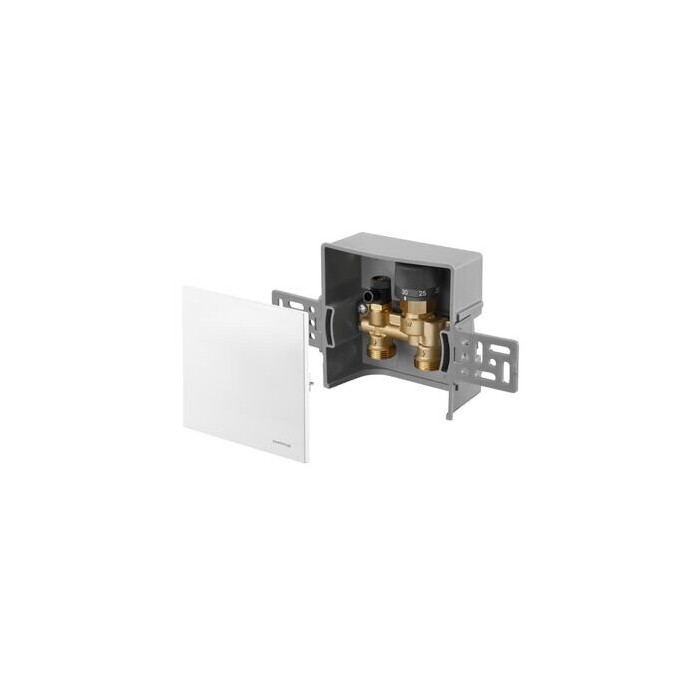

Installation box OVENTROP 1022731
Technical specifications:
- Number of rings - 1 ring
- Material: brass
- Control based on water temperature
- Operating temperature: 10-50℃
- Max pressure: 10 bar
- Underfloor heating pipes are connected to the collector nipples (rings) using 3/4" eurocone fittings, which you can find below in related products. (Suitable for 16, 17, 18, 20 diameter eurocones)
- Includes 3/4" nipples, caps, box, manual actuator
The "Unibox" return temperature controller is used for rooms up to 20 m², such as bathrooms, for surface temperature control. The "Unibox" is particularly suitable for installing surface temperature controllers in heating systems used in conjunction with radiators. The "Unibox" consists of a wall-mounted box with a thermostatic valve, integrated return flow temperature limiter, discharge and drain valve, and a cover with an integrated manual actuator. The "Unibox E RTL" cover is closed. The set value range is adjustable from 10 °C to 50 °C for "Unibox RTL" and from 20 °C to 40 °C for "Unibox E-RTL". The cover with an integrated manual actuator allows compensation for the angle and depth of the recessed box mounted in the wall.
Warranty: 2 years
More information in the downloadable files.
Manufacturer: OVENTROP (Germany)
Product images are for illustrative purposes only and are representative. Video links in the product description are for informational purposes only, and the information provided may differ from the actual product. The colors, inscriptions, parameters, dimensions, sizes, functions, and/or any other properties of original products may appear differently due to their visual characteristics, so please refer to the product specifications listed in the product descriptions. If you have any questions, please contact us via email or phone listed in the contact section.
