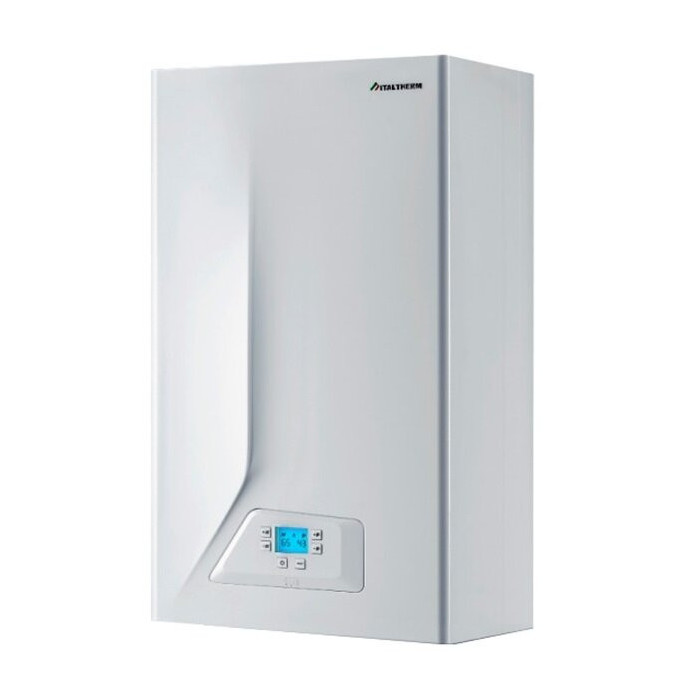

Gas condensing boiler ITALTHERM City Class 35 K with instant water preparation
SKU:
301001439
1,168.00 €
/pcs.
vnt. 1,579.00 €
vnt. 1,579.00 €
965,29 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Gas condensing boiler ITALTHERM City Class 35 K with instant water heating
For heating and hot water preparation

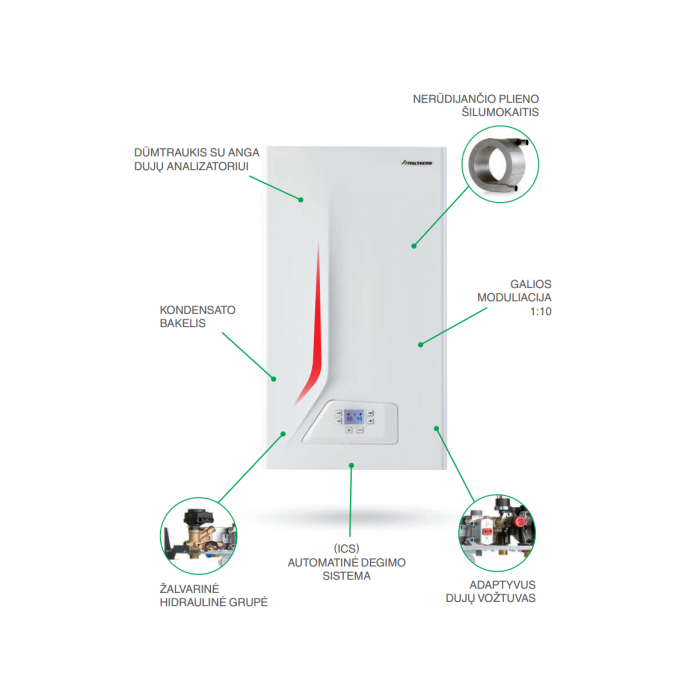

Advantages:
- Stainless steel heat exchanger
- Certified “Range rated“
- I.C.S – automatic combustion system
- High-efficiency modulating circulation pump (ERP)
- Power modulation 1:10
- Brass hydraulic group!
- 6 NOx class according to UNI EN 15502-1
- Electrical protection class IP X5D
- “Bypass”
- Automatic three-way valve
- Flow regulator

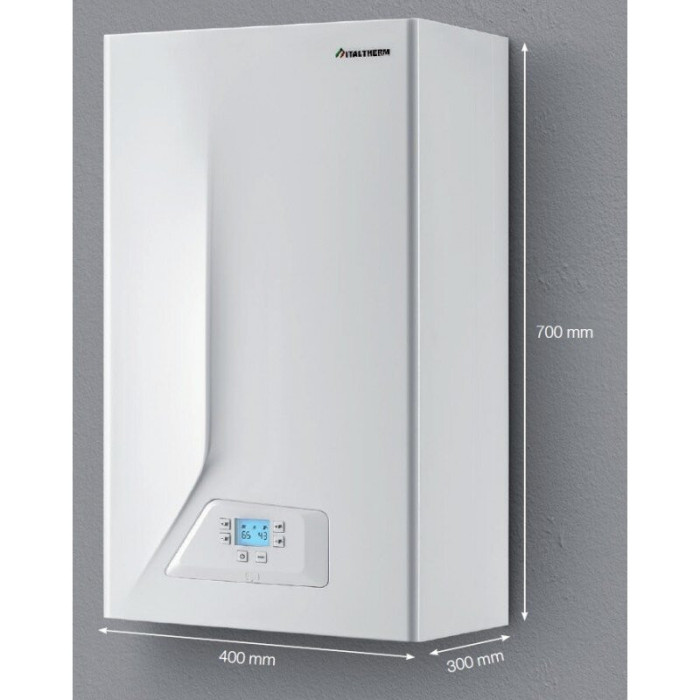

- Boiler dimensions (mm): 700 x 400 x 300
- “Gas adaptation” function (“City Class” boilers can operate with all types of gas, no need to change nozzles)
- “Holiday program” function
- “Frost protection” function
- “Chimney cleaning” function
- Ability to connect a room thermostat (wired or wireless)
- Ability to connect an outdoor thermostat
- Easy boiler maintenance
- Can connect and control separate heating system zones (e.g. radiator and underfloor heating with additional accessories)
- Water filter easily removable
- Design: Giorgetto Giugiaro. Compact and elegant.

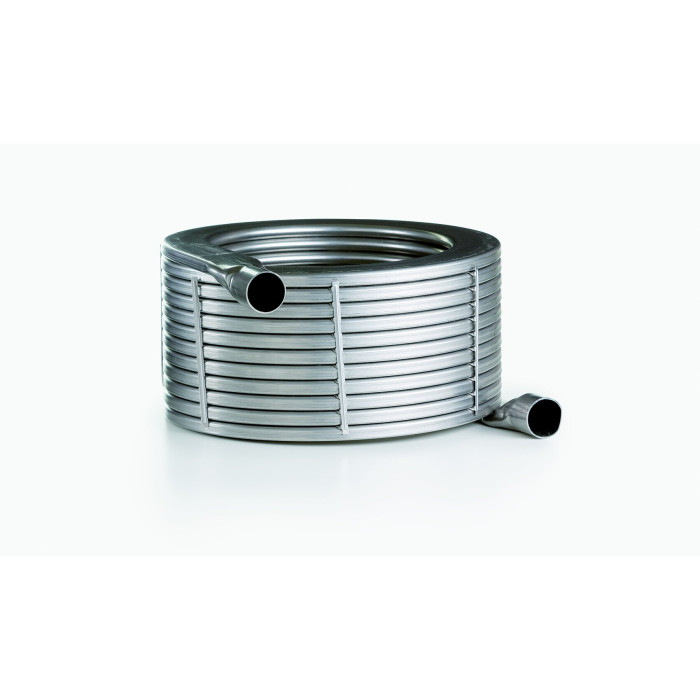

STAINLESS STEEL HEAT EXCHANGER
The employees of “Italtherm” designed a stainless steel heat exchanger with an extremely high water flow capacity: the internal part of the heat exchanger was increased by 4 times compared to other competitors.
Thanks to the new heat exchanger, “City Class” has better heat transfer and provides better protection against heat exchanger scaling, making “City Class” condensing boilers ideal for replacing boilers in old systems.
The design of the new heat exchanger ensures:
- high flow
- low hydraulic load losses
- easy cleaning and technical maintenance of the boiler.
ICS - AUTOMATIC COMBUSTION SYSTEM
The engineers of “Italtherm” developed the “ICS – automatic combustion system”, which turns the “City Class” boiler into a smart boiler that automatically controls, adjusts, and adapts.
“ICS – automatic combustion system” controls combustion parameters and regulates gas flow so that the boiler always receives the correct air-to-gas ratio, thus achieving:
- lower gas consumption
- lower CO / CO2 emissions
- faster boiler adjustment

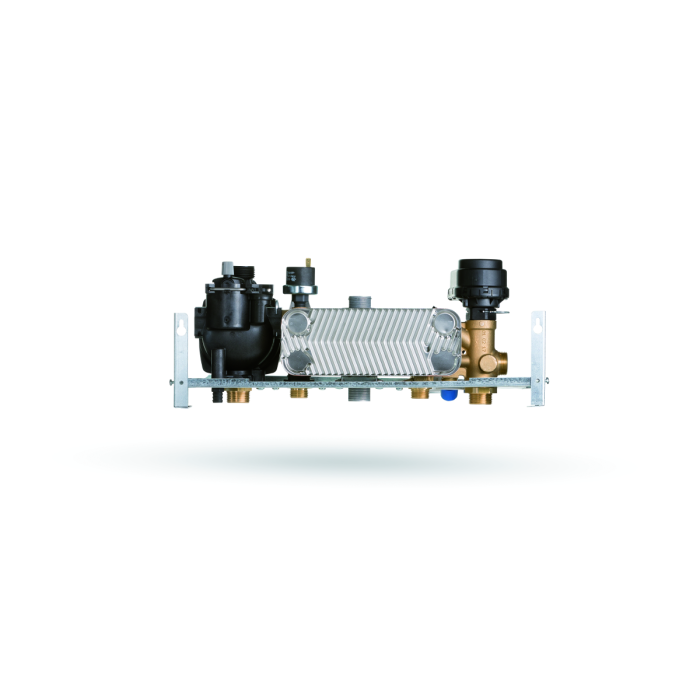

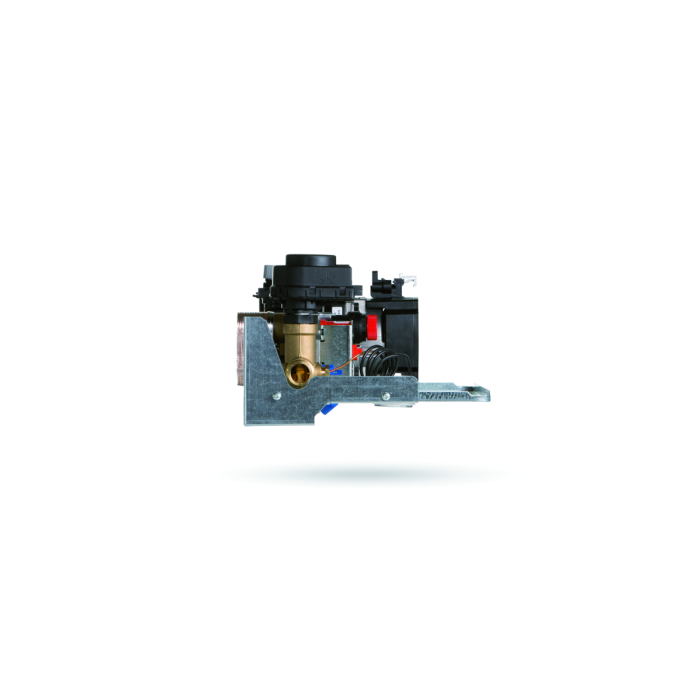

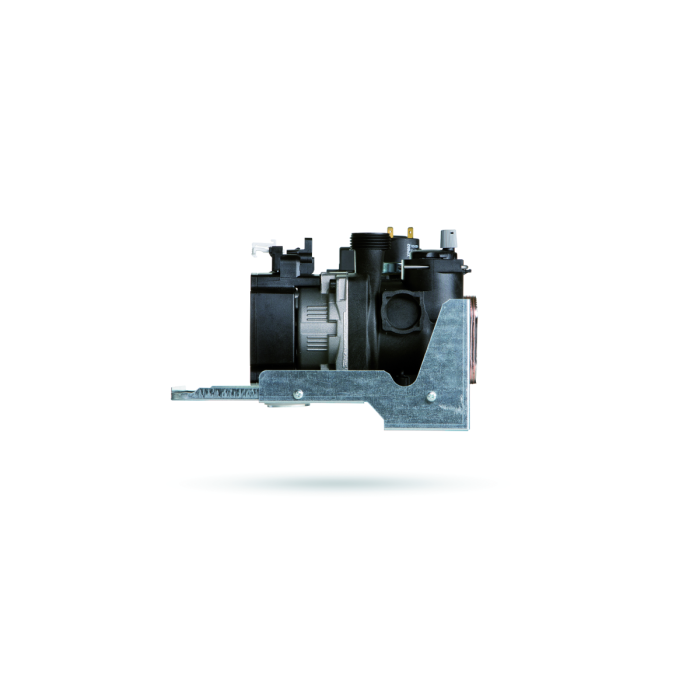

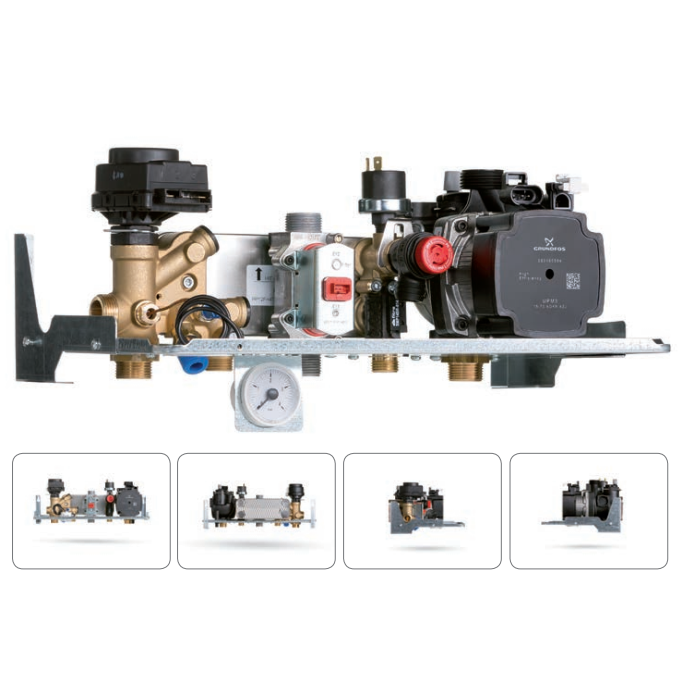

BRASS HYDRAULIC GROUP
“Italtherm” aims to ensure the highest reliability and durability of its products, which is why it uses brass in the hydraulic group.
The new brass hydraulic group is equipped with:

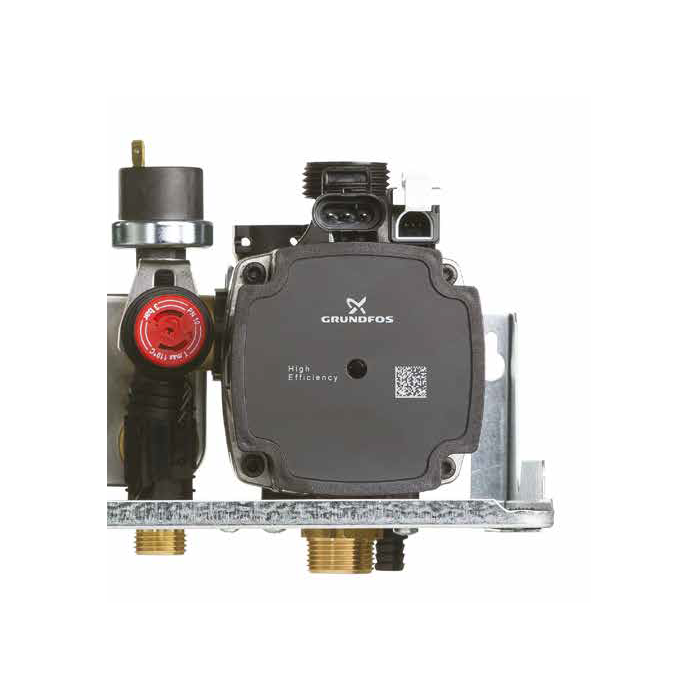

- high-efficiency pump (with Erp labeling)
- three-way valve
- by-pass” bypass circuit valve
- boiler/system water refill tap
- check valve
- flow regulator
- NTC DHW sensor
TECHNICAL DATA
Gas boiler Italtherm City Class 25K, 25 kW. The boiler is designed for heating rooms and preparing hot water. The boiler features a stainless steel heat exchanger, which has an extremely high water flow capacity, better heat transfer, and better protection against heat exchanger scaling. Italtherm City Class 25K with ICS - automatic combustion system, which turns the boiler into a smart one. The system controls combustion and regulates gas flow to achieve the correct air-to-gas ratio. As a result, the boiler has lower gas consumption, lower CO/CO2 emissions, and faster adjustment. The integrated gas adaptation function allows Italtherm City Class boilers to operate with all types of gas (no need to change nozzles). The Italtherm City Class 25K boiler can connect and control separate heating system zones, and it is also possible to connect outdoor and room thermostats. A 5-year warranty is provided for the heat exchanger and a 2-year warranty for the electronic part.
Features:
- Low energy consumption
- High-quality device
- Environmentally friendly
- Max power used - 35 kW
- Instant hot water preparation
- Gas type - G20
- Main heat exchanger made of stainless steel
- Expansion vessel - 8 l
- ICS - automatic combustion system
- Gas adaptation function
- Frost protection
- Chimney cleaning function
- Holiday program function
- Ability to connect room/outdoor thermostat
- Ability to connect and control separate heating system zones

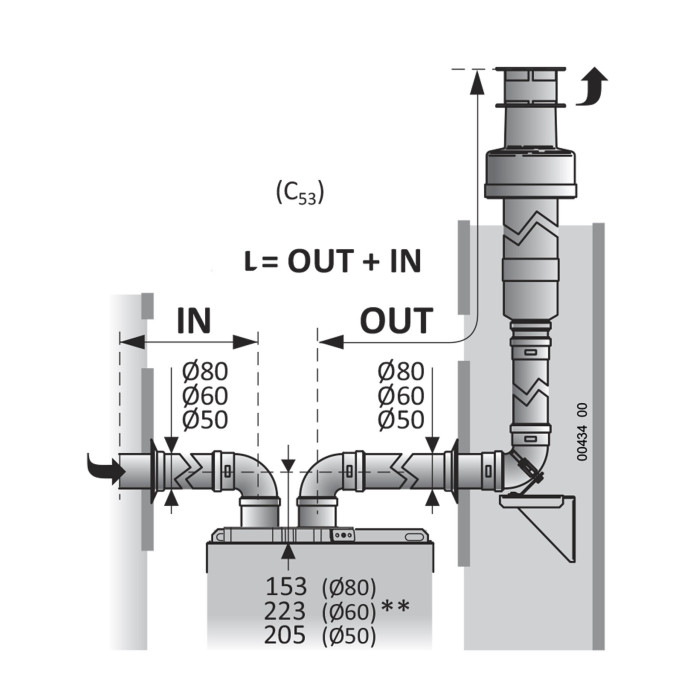

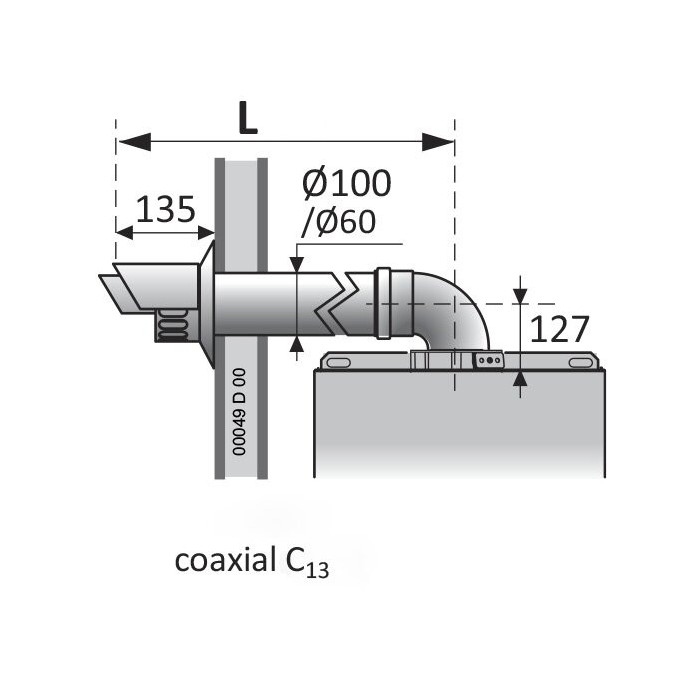

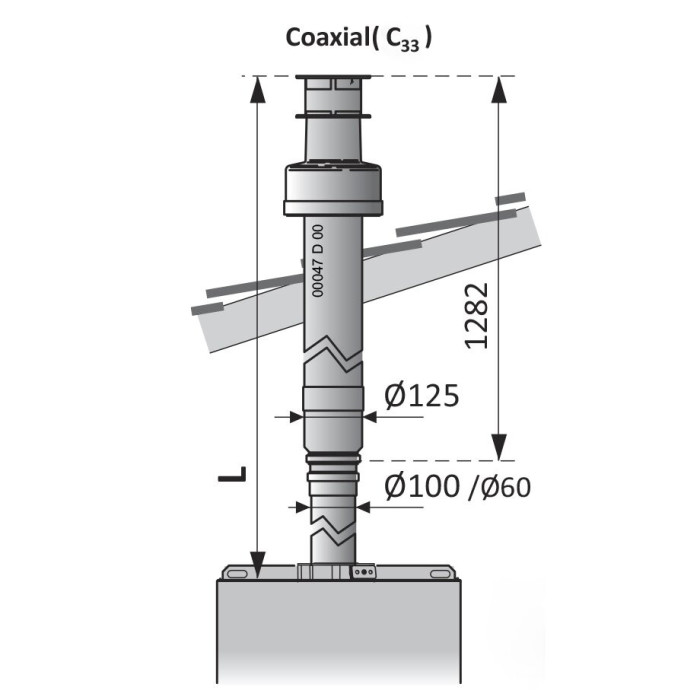

- Flue gas pipe connection - Ø60/100 mm
- Weight - 34.2 kg
Product parameters:
- Boiler type Gas condensing boiler
- Boiler fuel type Natural gas
- Max power, kW 33.2 kW
- Heat exchanger power, kW up to 33.2 kW
- Water preparation Instant
- Hot water preparation 33.2 kW
- Useful efficiency coefficient, % 91 %
- Max working pressure, bar 3 bar
- Chimney diameter, mm 100 mm
- Chimney coaxial connection (2 options), mm 60 mm
- Voltage, V 220 V
- Power consumption, W 86 W
- Boiler installation Wall-mounted
- Boiler material Steel
- Boiler length (depth), mm 400 mm
- Boiler height, mm 700 mm
- Boiler width, mm 300 mm
- Boiler weight, kg 34.2 kg
- Max. power range from 31 to 40 kW
Warranty: 5 years
Manufacturer: ITALTHERM (Italy)
