Elektra female elbow FRIATEC 40 x 90°, PN16
SKU:
612095
16.21 €
/pcs.
vnt.
vnt.
13,40 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |

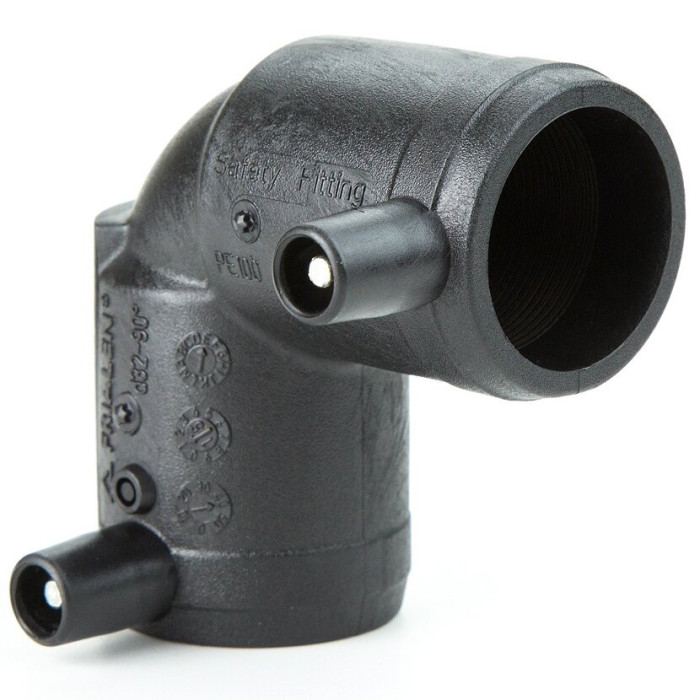

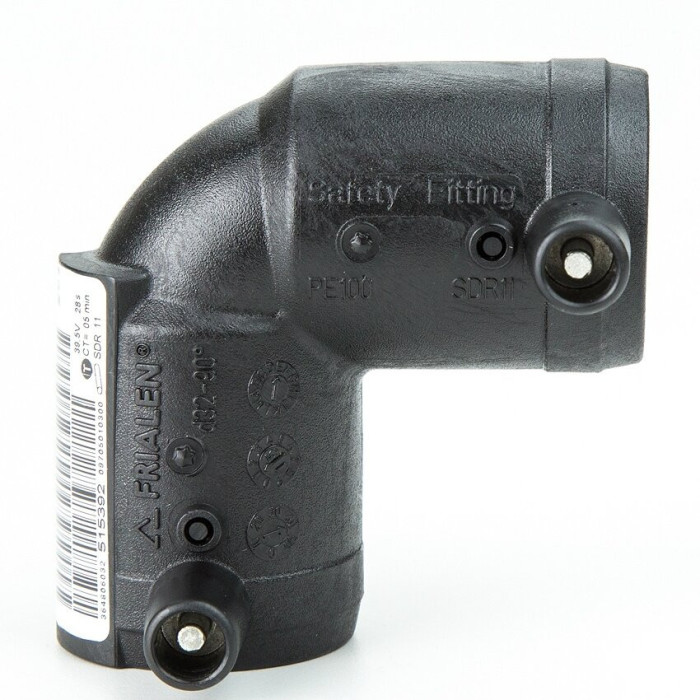

Elektra welding elbow FRIATEC 40 x 90°, PN16
With open spirals to ensure optimal heat transfer to the pipe, deep, wide welding zones, and cold zones at the ends and in the middle prevent molten polyethylene from leaking. Can be installed without brackets.
Good reasons to use FRIALEN-Albows W90°:
- Deep joint depth for easier pipe alignment (no need for holding clamps)
- Especially wide fusion zones
- Maximum stability due to high wall thickness
- Cold zones on the front side of the fitting and in the middle
- Open heating coil for direct heat transfer to the pipe
- Small annular gap for optimal joining pressure to form in the melting zone
- Contacts safe to touch
- Fusion indicator for visual synthesis control
- Durable batch marking
- Individually packaged for protection against dirt
- Additional barcode for joint traceability (tracking coding)

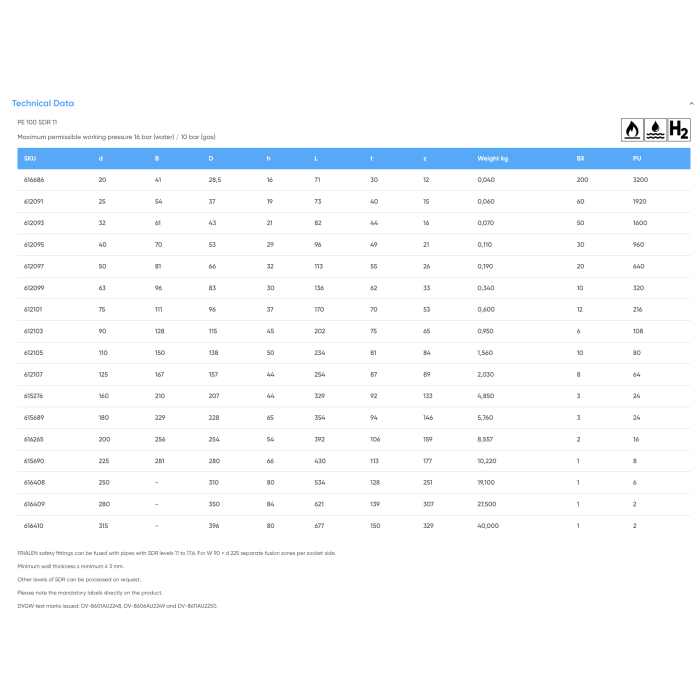

Technical specifications:
- External joint diameter: 40 mm;
- Color: black
- Material: PE100 (SDR11)
- Maximum pressure: PN16 for water and PN10 for gas
- Application: for water and gas
FRIALEN-Safety Fittings can be connected with SDR 11-17.6 pipe stages. Minimum wall thickness s min ≥ 3 mm. Other SDR stages available on request. Please pay attention to the labeling directly on the product, which is mandatory. DVGW registration no.: DV-8601AU2248, DV-8606AU2249, and DV-8611AU2250
Areas of application
FRIALEN-Elbow W90° is used for all directional changes in HD-PE pipes.
Assembly instructions
The fusion of pipe ends with FRIALEN-Albows W90° occurs using the FRIALEN melting method – impermeable and longitudinally strong.
The pipe ends are prepared according to the general installation instructions (see "Joining instructions" in the "FRIALEN-Safety Fittings for home connections and distribution pipes up to d 225" section). This includes removing the oxide skin and cleaning the pipe ends.
Manufacturer: FRIATEC (Germany)
Product images are for illustrative purposes only and are exemplary. Video links in the product description are for informational purposes only, and the information provided may differ from the actual product. The colors, inscriptions, parameters, dimensions, sizes, functions, and/or any other properties of original products may appear differently due to their visual characteristics, so please refer to the product specifications listed in the product descriptions. If you have any questions, please contact us via email or phone listed in the contact section.
612095
Data sheet
