Grilles SYSTEMAIR 200 x 100, Nova-L-1-2
SKU:
41304
14.64 €
/pcs.
vnt.
vnt.
12,10 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |

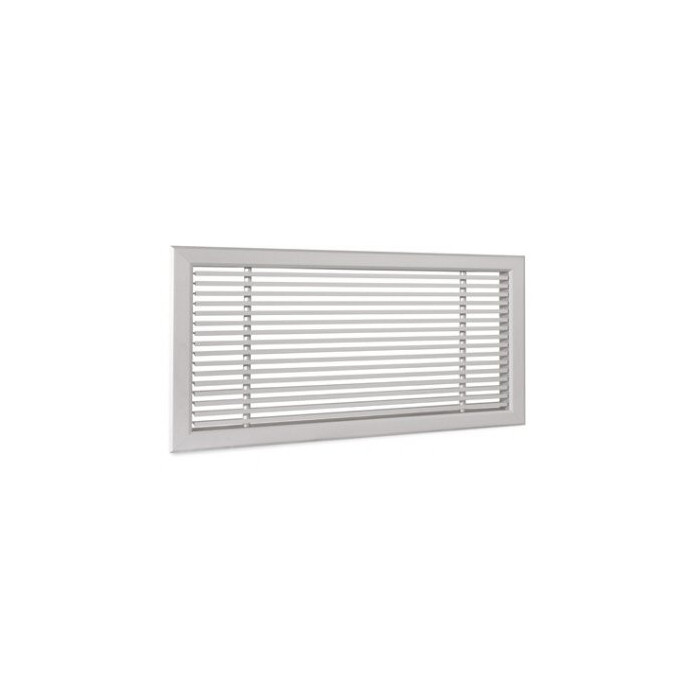

Grilles SYSTEMAIR 200 x 100, Nova-L-1-2
NOVA-L is a rectangular aluminum grille with one or two rows of blades. The first row is always fixed, while the second is adjustable. NOVA-L grilles are very suitable for air supply and exhaust in spaces where appearance is a priority. If needed, the grilles can be divided into several parts and installed from a linear grille line. To achieve balanced air distribution throughout the grille, it is recommended to use a valve or ventilation box.
Design
NOVA-L grilles are made of anodized aluminum profiles or painted using powder coating (RAL 9010 - white). Other colors can be selected upon request.
Dimensions: width 200 mm, height 100 mm
Grille Blades
Single or double row grilles can be either horizontal or vertical. The second row of grille blades is always perpendicular to the first row. The shape of the front blades and the axial pitch are selectable, see Fig. 8 or order codes. The blades of the second row are always of type "4", with a pitch of 20 mm.
Accessories
NOVA-R1, -R2, -R3, -R4 - valves
NOVA-UR - mounting frame
ODEN - pressure chamber
PB-NOVA - pressure chamber
Installation

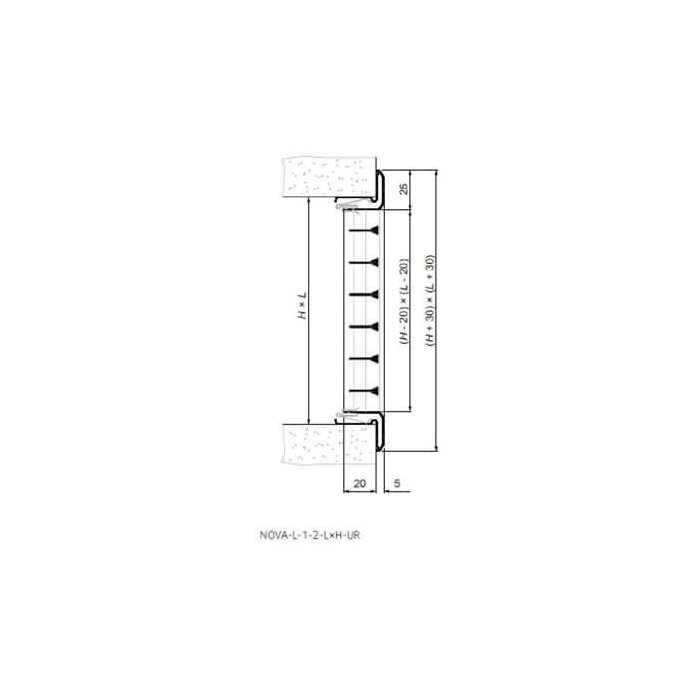

NOVA-L grilles can be directly mounted into a rectangular duct using recessed screws ("1" type installation); into the wall using a mounting frame and spring clips ("2" type installation + UR), if suitable, they can also be mounted into the wall or ceiling using a mounting frame and mounting mechanism ("4" type installation).
More information in downloadable files.
Manufacturer: SYSTEMAIR (Sweden)
Product images are for illustrative purposes only and are representative. Video links in the product description are for informational purposes only, and the information provided may differ from the actual product. The colors, inscriptions, parameters, dimensions, sizes, functions, and/or any other features of the original products may appear differently than in reality due to their visual characteristics, so please refer to the product specifications listed in the product descriptions. If you have any questions, please contact us via email or phone listed in the contact section.
41304
Data sheet
