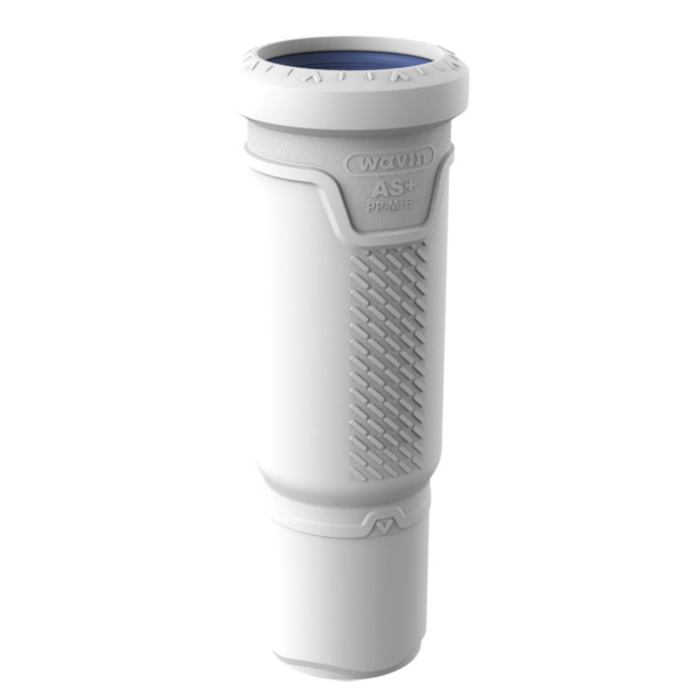

Low-noise long internal sewage (compensating sleeve) WAVIN AS+ 50
SKU:
3080023
8.28 €
/pcs.
vnt. 12.73 €
vnt. 12.73 €
6,84 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Low-noise internal sewage repair coupling WAVIN AS+ 50
Diameter: outer 50 mm
Working length: 184.2 mm
Total length: 311 mm
Wall thickness: 3.0 mm
Name: AS+
Wavin AS+ - a fully equipped low-noise internal sewage system, manufactured in Germany from Astolan - a plastic material that replaces cast iron. Manufactured high-quality pipes with an outer diameter of 50, 75, 90, 110, 160, and 200 mm, as well as all necessary connecting and fitting parts. Compared to cast iron systems, systems made from Wavin AS+ products are installed faster, as socket connections are used.
Wavin AS+ products are resistant to hot water and meet DIN 1986 requirements - can withstand 20° C temperature for a short time and 90°C for a long time. These products can be used for wastewater with a pH of 2 to 12.
Simple, quick, and economical installation
Wavin AS+ products, compared to cast iron systems, are lightweight, making them easy to lift or transport. Pipe parts are connected using practically tested socket joints, and pipes are easy to cut, making installation easy and quick. Time is saved, and costs are reduced.
Durable noise insulation material
Wavin AS+ products are very strong, corrosion-resistant, and do not accumulate deposits. Optimal conditions for long-term operation.
No problems with hot and greasy water
Wavin AS+ products are highly resistant to hot and greasy water (for example, from food preparation establishments)
Application
Suitable for individual houses, multi-storey buildings, administrative buildings, hospitals, hotels. Can be installed: separate sewage drainage lines, stacks, rain stacks, collectors, ventilation pipes.
Material
"Astolan" - mineral-reinforced polypropylene, resistant to hot water. Due to its high density and special molecular structure, Astolan can absorb noise transmitted through both air and structure.
Physical characteristics:
- Density: 1.9 g/cm3 DIN 53479
- Elongation at break: 29%
- Tensile strength: 13 N/mm2
- Modulus of elasticity: 3800 N/mm2
- Thermal elongation coefficient: 0.09 mm/mK
- Fire resistance class: B2 according to DIN 4102
- Noise transmission: 12.8 dB (A)* at 2.0 l/s water
- Color: light gray, RAL 7035
* data installed on a 220 kg/m2 wall. Installation - outside the measuring room
More information available in downloadable files.
Manufacturer: WAVIN (Germany)
