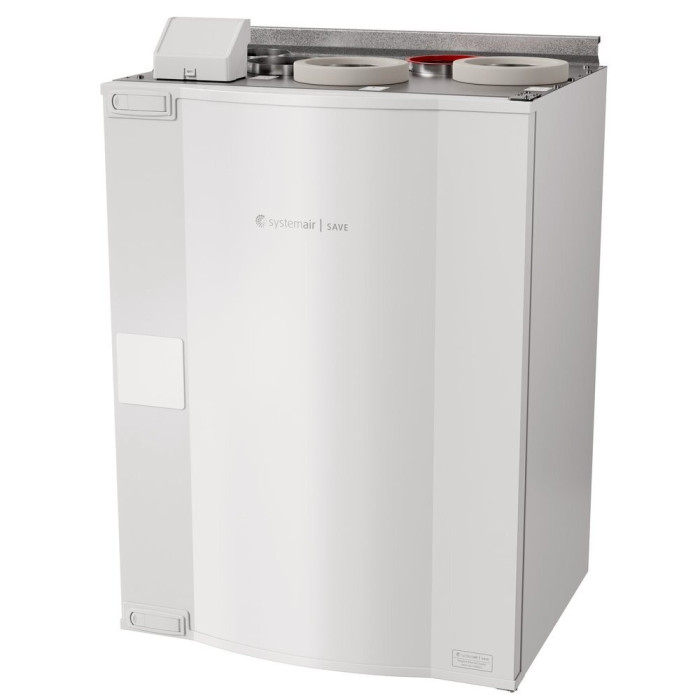

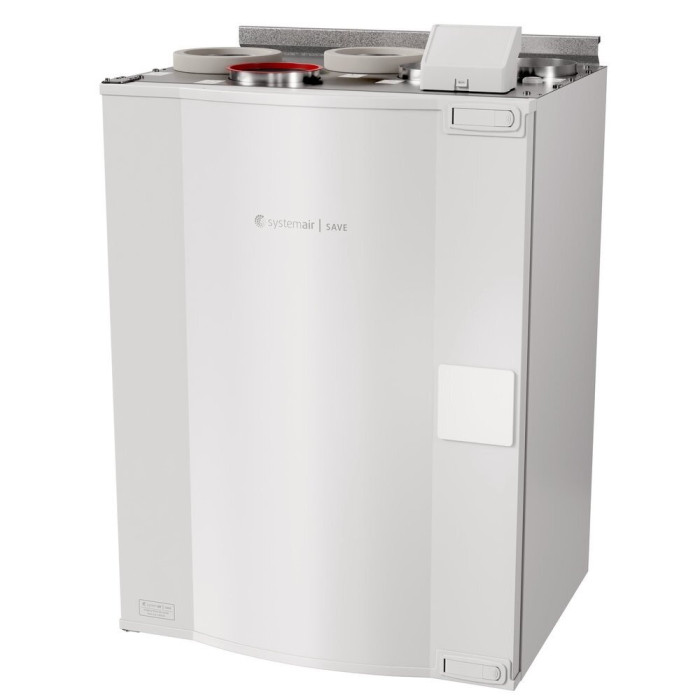

Heat Recovery Unit SYSTEMAIR Save VTR 250/b R/L (1000 W)
SKU:
488822
3,242.80 €
/pcs.
vnt.
vnt.
2 680,00 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Heat Recovery Unit SYSTEMAIR Save VTR 250/B R/L (1000 W)
Ventilation of residential premises meeting the highest standards
SystemAir can offer you a system that allows you to enjoy pure outdoor air all the time. No more need to open windows for quick ventilation of the premises. This is not only convenient but also saves energy and your money! Heat stays where it should be – at home!
The “SAVE” ventilation system - the warm air being expelled transfers its heat to the incoming air, removes excess moisture, and ensures you a clean and healthy environment free from mold and allergens. High-quality filters in the system trap dust and pollen from entering the ventilated spaces, ensuring your well-being! Therefore, even people with dust allergies can breathe deeper.
Rotary Heat Exchanger
The rotor is made of thin corrugated plates twisted into a drum, which continuously rotates between warm and cold air streams, transferring the heat from the air being expelled from the premises to the cold air supplied from outside. In summer, this process can work in reverse – warm outdoor air transfers heat to the cool indoor air. In summer, this can create a cooling effect that reduces energy costs for cooling.
The rotary heat exchanger is the best choice for the climate conditions in Lithuania!
SystemAir Save VTR with SAVECair control
The rotary heat exchanger - the best choice for the climate conditions in Lithuania
CAIR controller with a touch screen and extensive setting options
Ensures efficiency up to 90%
Does not dry the air, no need for condensate drainage
No frost protection required
In summer, can return cool air to the premises
Efficient “RadiCal” fans with modern EC technology
Separate settings for supply and exhaust air streams
Low noise level
The only manufacturer with a EUROVENT certificate for residential buildings, ensuring that the declared data is accurate.
The SAVE VTR 250/B heat recovery unit is made of two white-painted sheets and has all the necessary functions for control. The unit features a high-efficiency, variable-speed rotary heat exchanger and a moisture transfer function that regulates the rotor's rotation speed based on temperature and the moisture returned to the incoming air. Energy-efficient fans with EC motors and low-pressure filters allow for reduced energy consumption and have low specific fan power and quiet operation. An integrated humidity sensor ensures ventilation control as needed.
All settings and functions are accessible via the “SAVE Touch” touch control panel, which connects through a port located at the top of the heat recovery unit and can be mounted on the wall or on the unit itself. The control panel features a color touch screen and an extremely user-friendly interface. If needed, one or more control panels can be connected. Additionally, the control panel provides different levels of access for authorized installers and service personnel.
The control panel's start screen displays information about air flow, temperature, air quality, and active functions. You can choose between MANUAL or AUTOMATIC control mode and desired settings from pre-configured user modes.
In the “SAVE Touch” AUTOMATIC control mode, there are many functions designed to regulate air flow based on CO2 levels, pressure, humidity, a set schedule, etc. Demand-based control ensures efficient and economical operation of the unit and the best indoor air quality. Alarm symbols notify of possible malfunctions and provide direct warnings about issues that need to be addressed.
The unit has an integrated electric heater.
Along with the heat recovery unit, a connection panel with pre-prepared inputs and outputs is provided, so connecting and preparing additional external sensors, heaters, or coolers for operation will not take much time.
Technical specifications:
- Ability to connect a kitchen hood
- Includes HMI control panel: optionally available in white or black
- Ability to control via the internet: internet access module IAM (optional accessory)
- Heat exchanger type: Rotary
- Heat exchanger efficiency: 85%
- Installation: vertical
- Suitable for building energy class A+
- Max air volume, m³/h 308
- For premises up to 160 sq/m2
- Energy efficiency class A
- Series VTR
- Inspection side for the heat recovery unit: optionally left or right.
- Electric heater power 1000 W
- Power, fan motor 2 × 83 W
- Duct outlets, mm 5 × Ø125
- Electric connection 230 V, 50 Hz, 10A

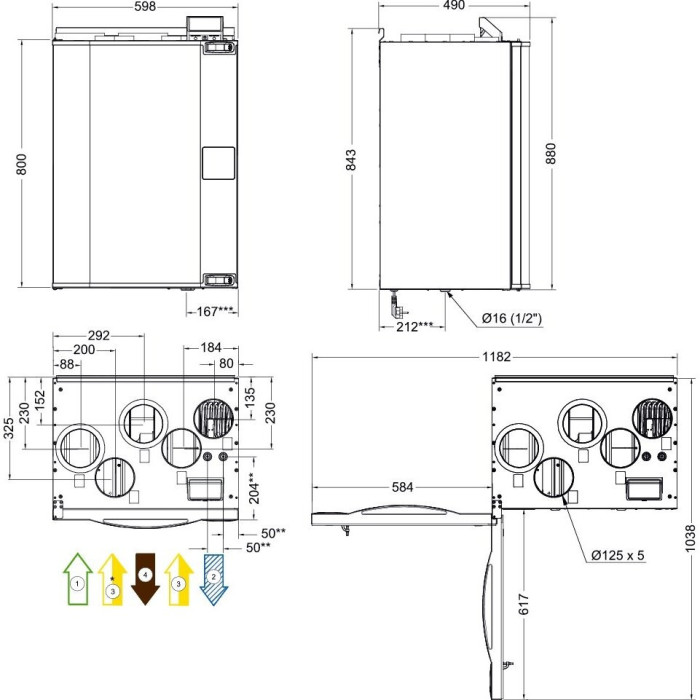

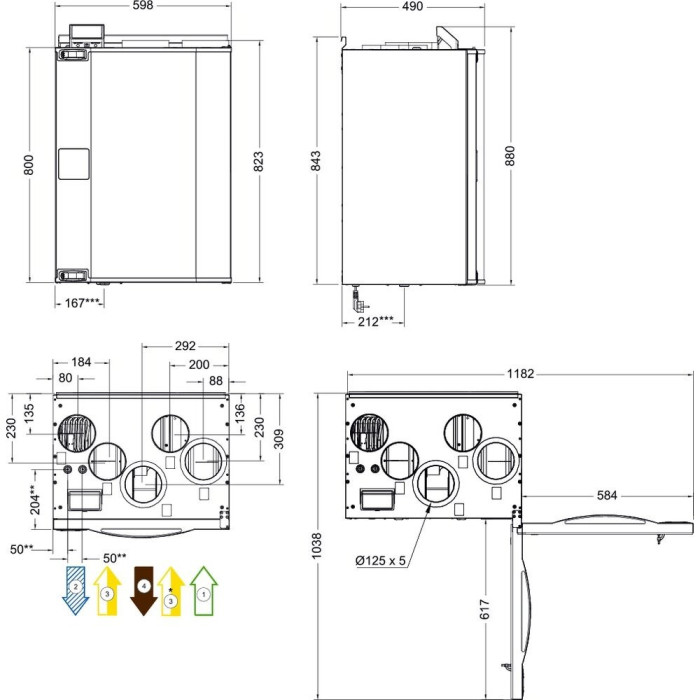

- Dimensions, mm 598×880×490
- The unit is supplied with low-pressure pocket filters: supply air filter F7/ePM10 80% and exhaust air filter G3/Coarse 60%
- Weight: 56 kg
Warranty: 2 years
Manufacturer: SYSTEMAIR (Lithuania-Sweden)
