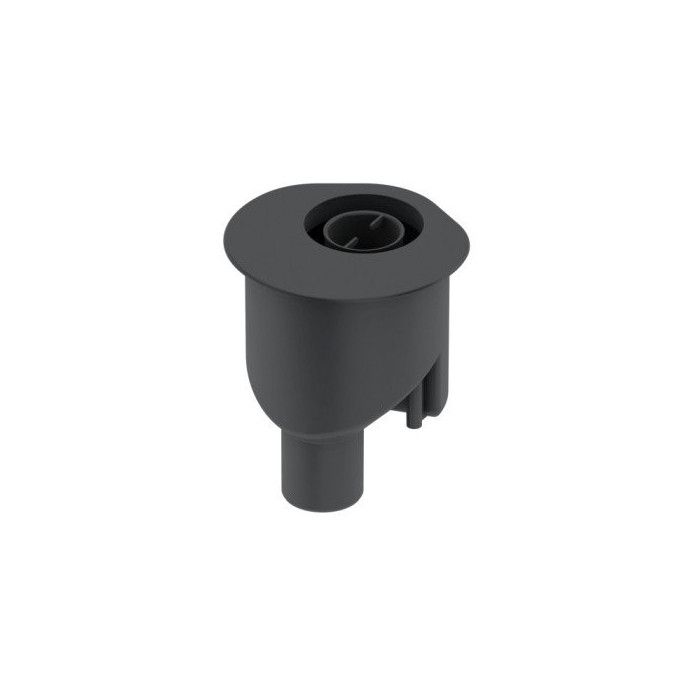

TECEdrainline DN 50 vertical siphon
SKU:
650003
26.81 €
/pcs.
vnt. 38.31 €
vnt. 38.31 €
22,16 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Standard siphon TECEdrainline DN 50 vertical, flow rate - 1.3 l/s
The vertical siphon is designed for TECEdrainline shower channels, can be rotated
360°, vertical connection to DN 50 wastewater pipe, with removable odor trap.

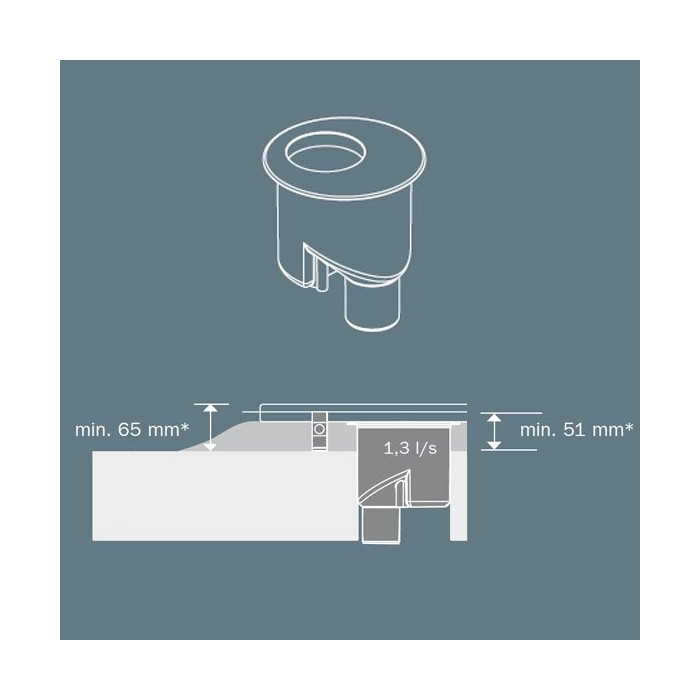

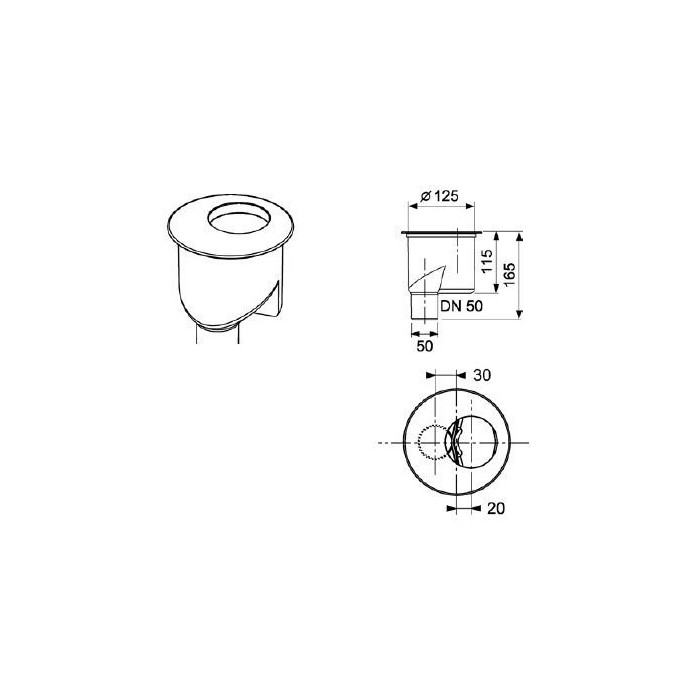

Minimum installation height from the top edge of the channel to the bottom of the mounting brackets = 67 mm
- Water level in the siphon = 50 mm
- Required opening = 130 mm
Water flow rate according to standard EN 1253, water level above the grates 10/20 mm:
- With "basic" grates: 1.3/1.3 l/s
- With "steel II" grates: 1.3/1.3 l/s
- With "plate"/"plate II" grates: 1.2/1.2 l/s
Ordered separately:
Fire protection kit FireStop El 120 DN 50 (optional)
Manufacturer: TECE (Germany)
