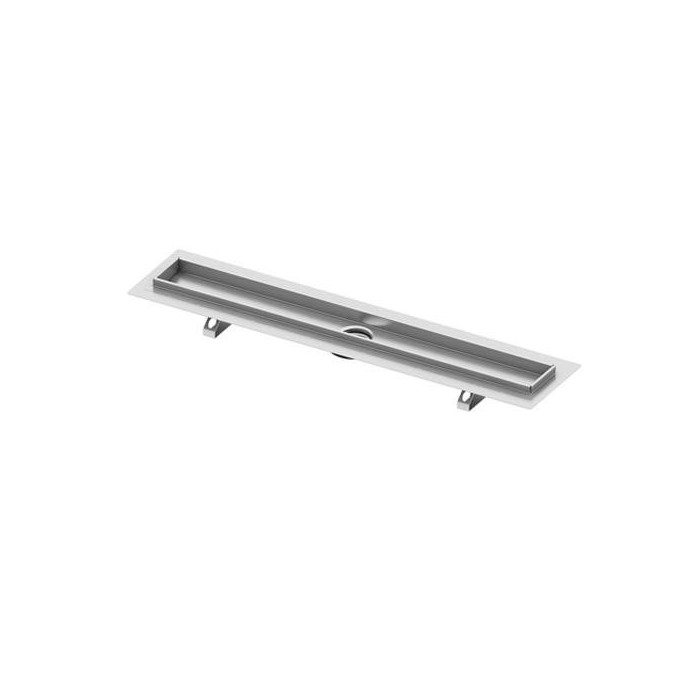

TECEdrainline shower channel body 700 mm
SKU:
600700
161.16 €
/pcs.
vnt. 247.93 €
vnt. 247.93 €
133,19 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
TECEdrainline Straight Drain Body

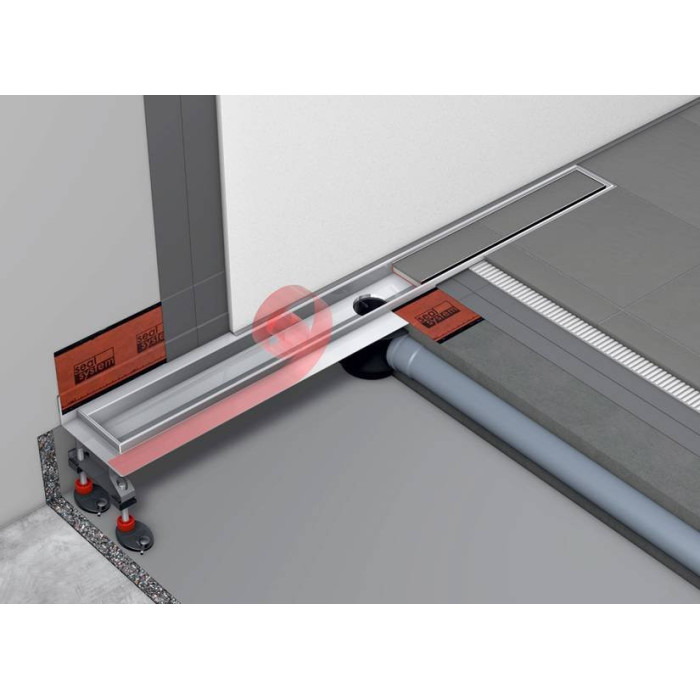

Straight drain designed for installation in concrete away from the wall, with flange and Seal System sealing tape. The sealing tape combined with the applied waterproofing creates an independently tested joint.
Included:
- Polished stainless steel drain with flange, material 1.4301 (304)

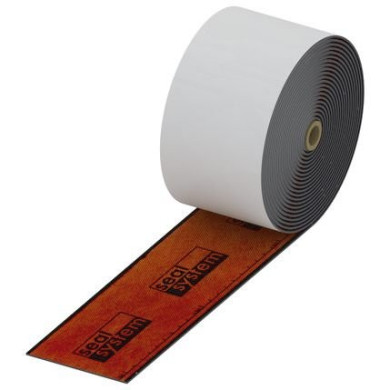

- Adhesive sealing tape Seal System designed for installation when sealing with liquid or strip waterproofing
- Mounting brackets for securing the drain in concrete and attaching the installation legs.
- Connector for siphon in the center of the drain
- Internal slope ensuring better water drainage and self-cleaning
- Gasket

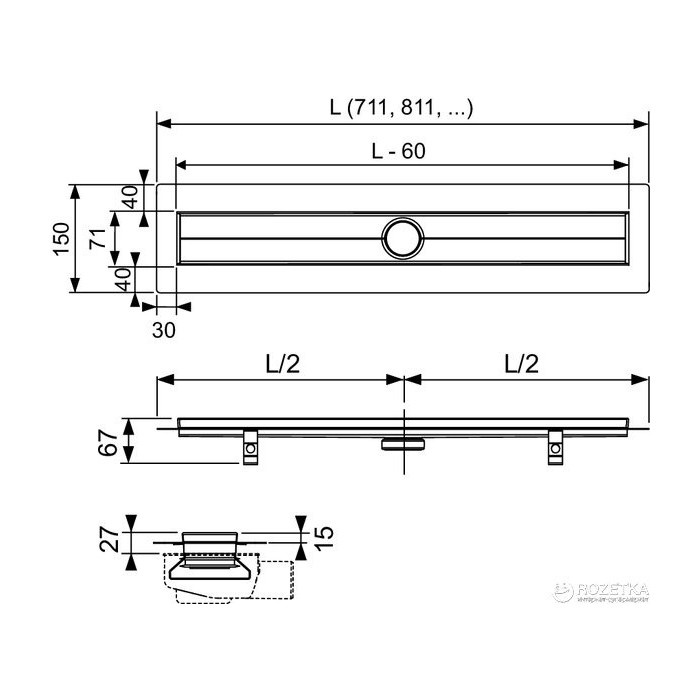

- Drain length with flange = 711 mm
- Visible part length after installation = 651 mm
- Total width with flange = 150 mm
- Visible width after installation = 71 mm

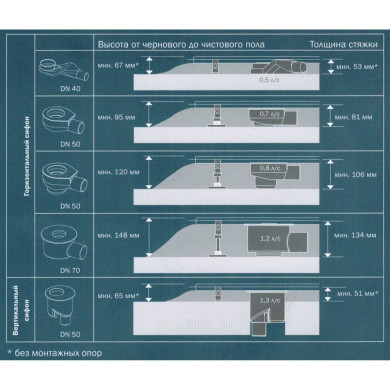

Minimum installation height to the upper edge of the drain (depends on the siphon):
- 67 mm vertical siphon
- 68.5 mm ultra-flat siphon
- 95 mm flat siphon
- 120 mm standard siphon
- 148 mm maximum siphon
Available for additional order:
- Standard grates or grates designed for tile installation

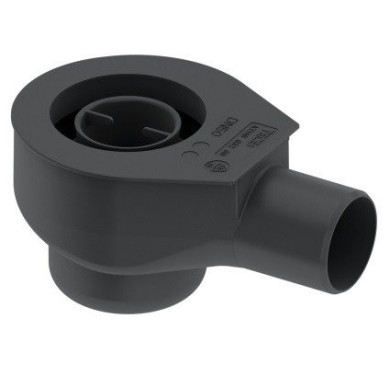

- Siphon

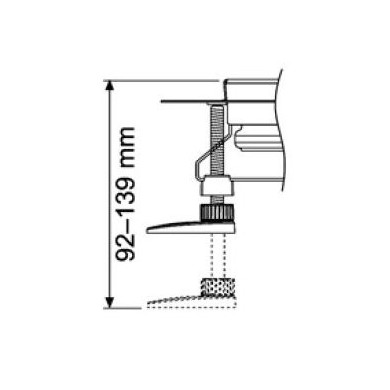

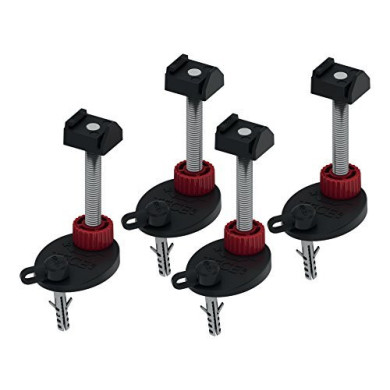

- Installation legs (not necessary)
- Drainbase sound insulating material (not necessary), if the installed equipment's sound level must meet DIN 4109 and VDI 4100 sound protection level (SSt) from I to III
- Membrane odor barrier
Warranty: 10 years
Manufacturer: TECE (Germany)
