Solid fuel gasification boiler ATMOS 14-20 kW, DC18S

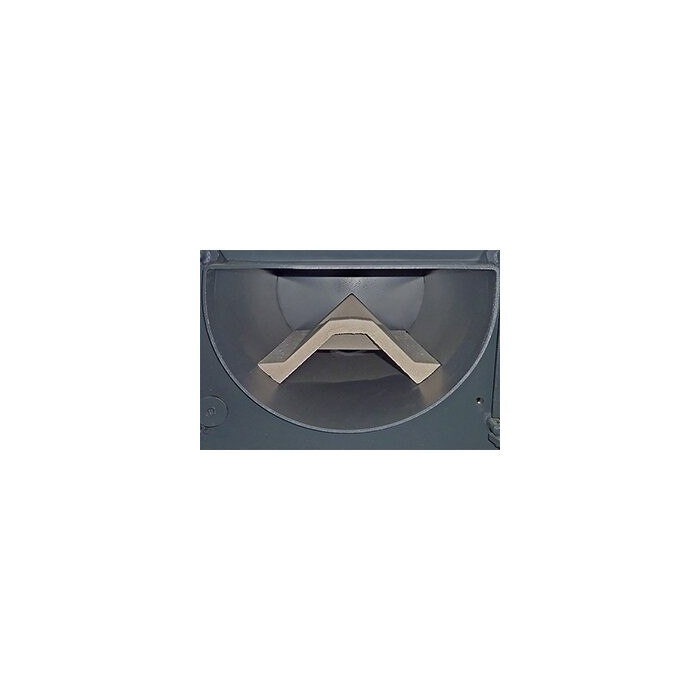

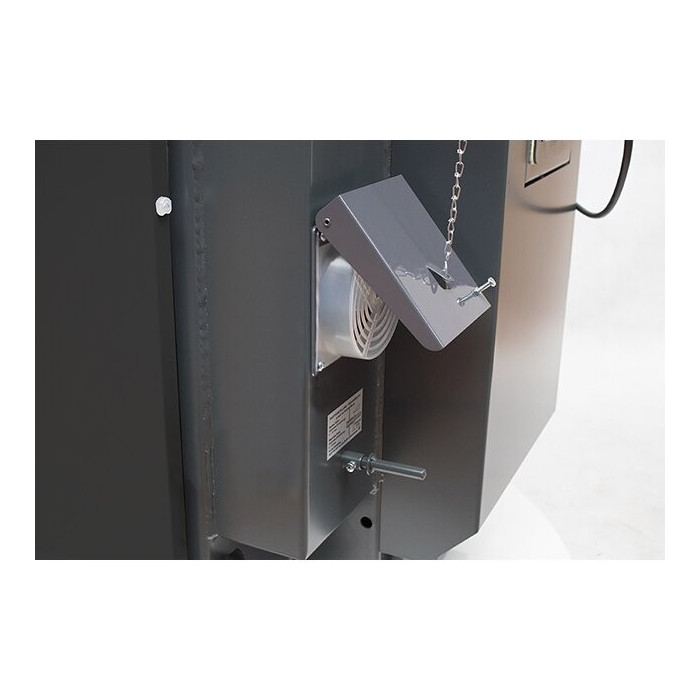

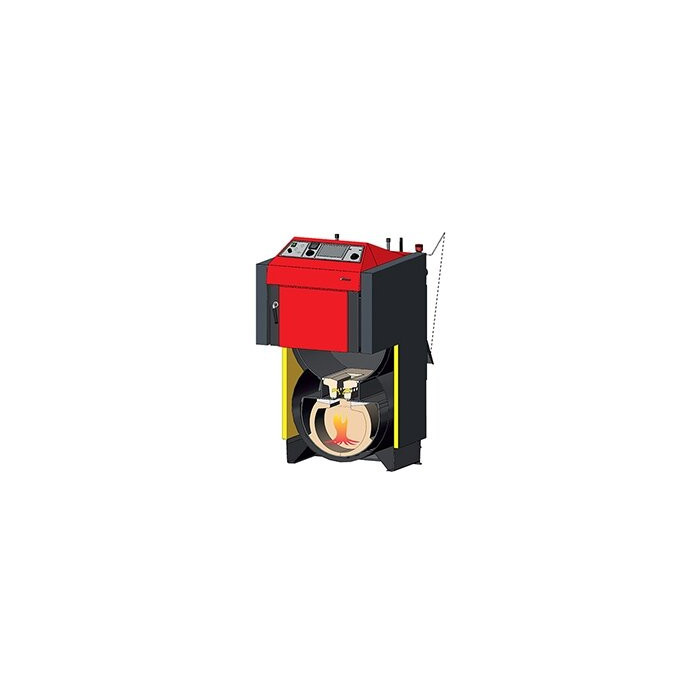

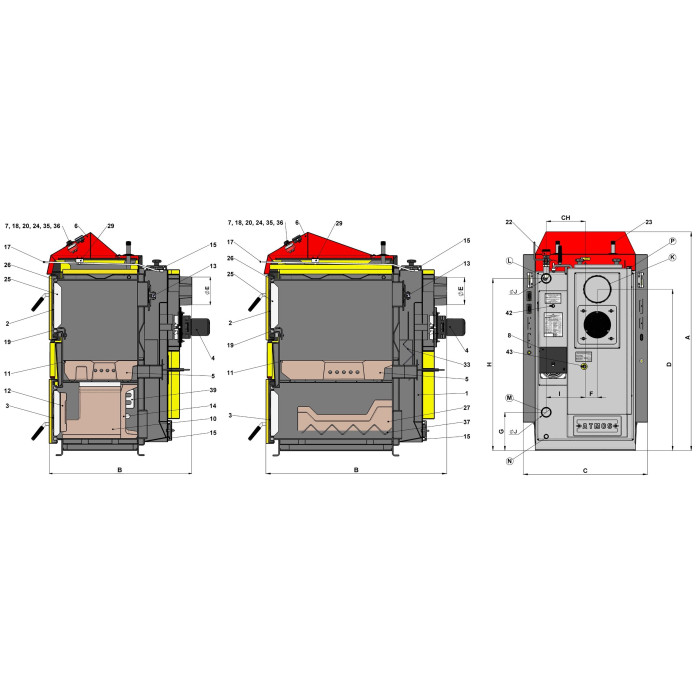

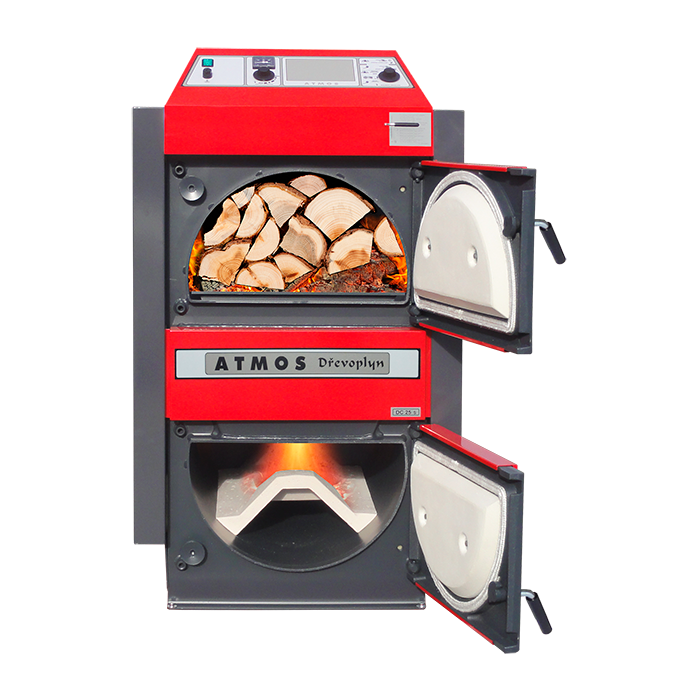

ATMOS boilers are designed for heating individual houses or other facilities. The boiler is intended for wood burning only. Any dry wood can be used: logs, briquettes. The spacious combustion chamber does not require wood splitting or special preparation. Time and physical effort are saved. When using large-sized wood, the combustion time is extended, but the maximum power is reduced. The ATMOS boiler consists of two chambers stacked one on top of the other. Fuel is burned in the upper chamber, while the combustion of gases released from the wood occurs in the lower chamber. The intensity of the combustion process and the amount of air in the combustion chamber are controlled by an exhaust fan and a draft regulator. This way, the combustion time of a single fuel charge is extended. Wood and sawdust briquettes are used as fuel. Sawdust or finely chopped wood chips can be used in small quantities together with logs, up to a maximum of 10% of the loading volume. All ATMOS solid fuel gasification boilers are equipped with a cooling system. ATMOS gasification boilers have a semi-circular gas generation chamber with preheated primary and secondary air supply. High-temperature ceramic catalysts are used in these boilers to achieve more efficient secondary combustion. Boilers operating on this principle save fuel and maintain an eco-friendly working process. Due to well-regulated air intake and circulation in the boiler chamber, combustion features a hot, stable flame.
Advantages of the ATMOS boiler:
- The boiler is designed for burning logs, sawdust, and peat briquettes.

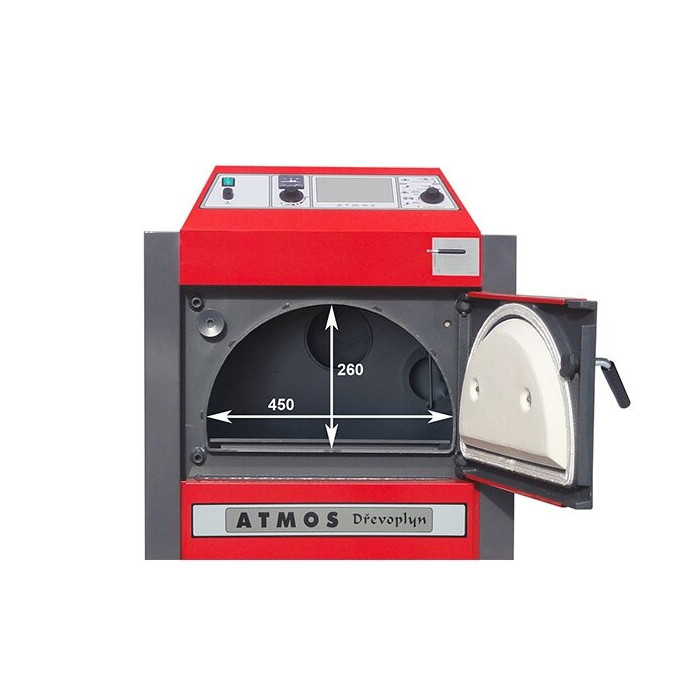

- Large fuel loading chamber.
- Operates on the gasification principle.

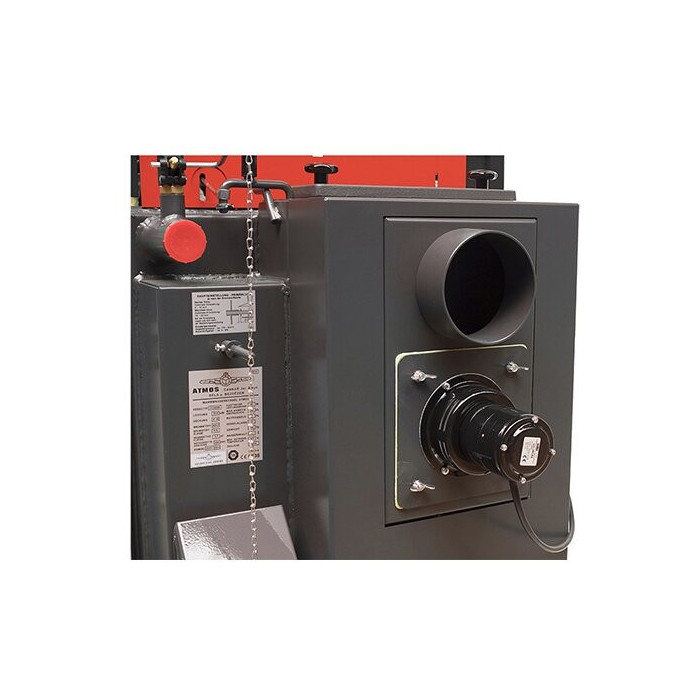

- Equipped with an exhaust fan that automatically turns off after the fuel has burned out.
- The boiler has an emergency cooling coil that protects the system from boiling.
- Efficiency coefficient of up to 81 - 90%.

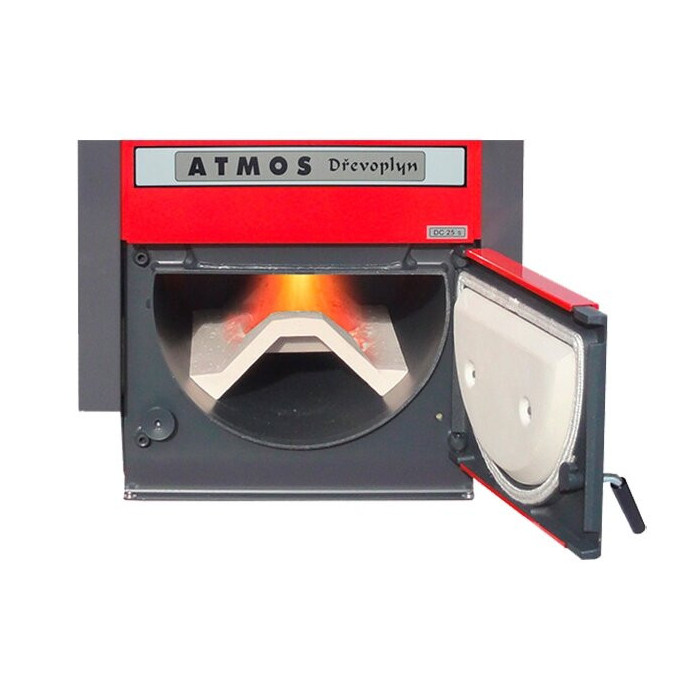

- Ceramic combustion chamber.
- Easy to use and clean.
- Primary and secondary air is heated to high temperatures.

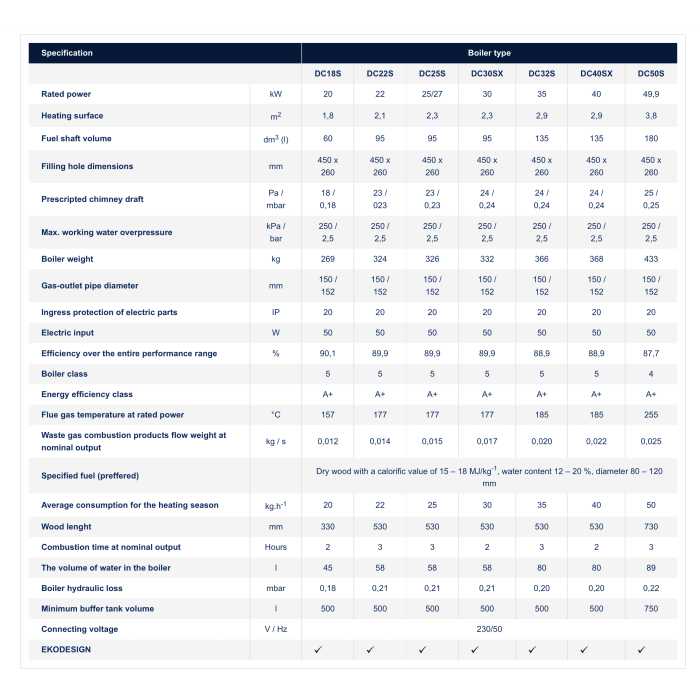

Technical parameters:
- Power 14-20 kW
- Efficiency coefficient 90.1%
- Fuel used: logs, peat briquettes, sawdust briquettes
- Combustion chamber volume 66 l
- Log length 330 mm
- Water volume in the boiler 45 l
- Chimney diameter 152 mm
- Required chimney draft 20 Pa
- Heat exchanger surface area 1.8 m2
- Electricity consumption 50 W
- Voltage 230V/50Hz

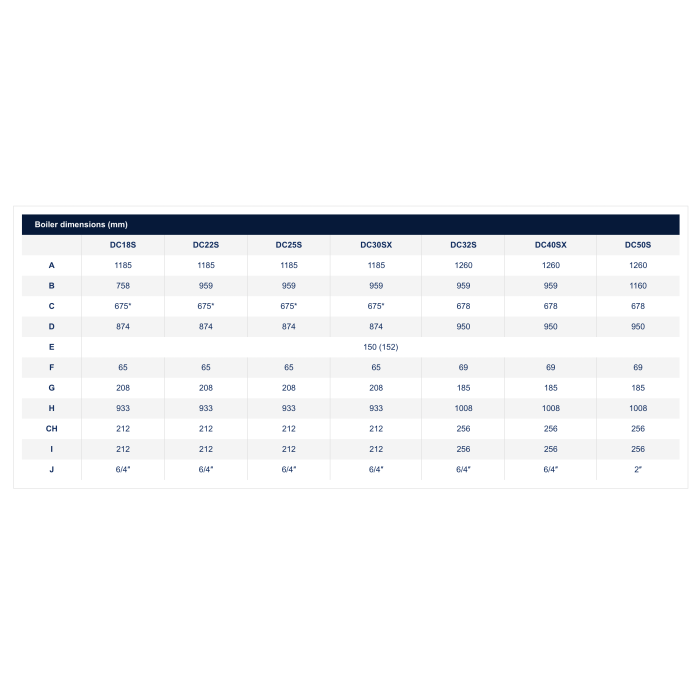

- Dimensions: height x width x length 1185x675x758mm
- Weight 283 kg
More information in the downloadable files.
Warranty: 3 years
Manufacturer: ATMOS (Czech Republic)
