Solid fuel gasification boiler ATMOS 15-22 kW, DC22S
SKU:
DC22S
3,020.00 €
/pcs.
vnt. 4,315.01 €
vnt. 4,315.01 €
2 495,87 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Solid fuel gasification boiler ATMOS 15-22 kW, DC22S

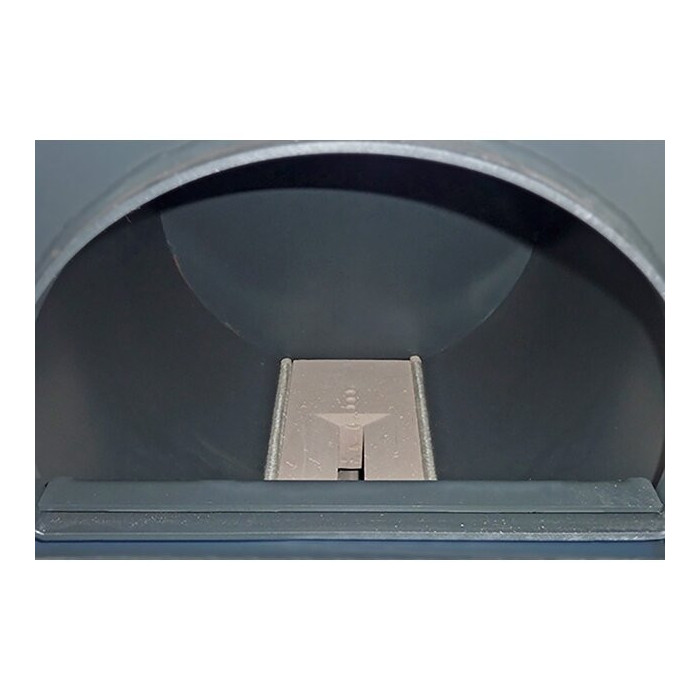

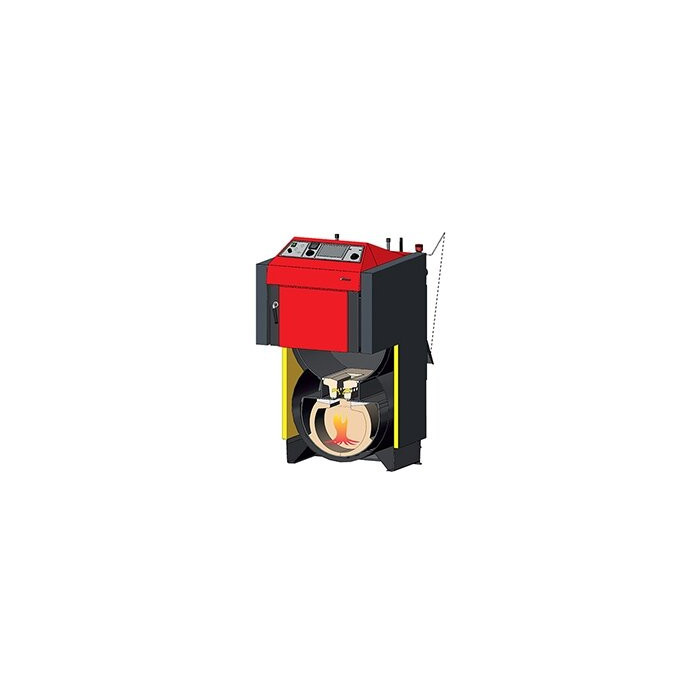

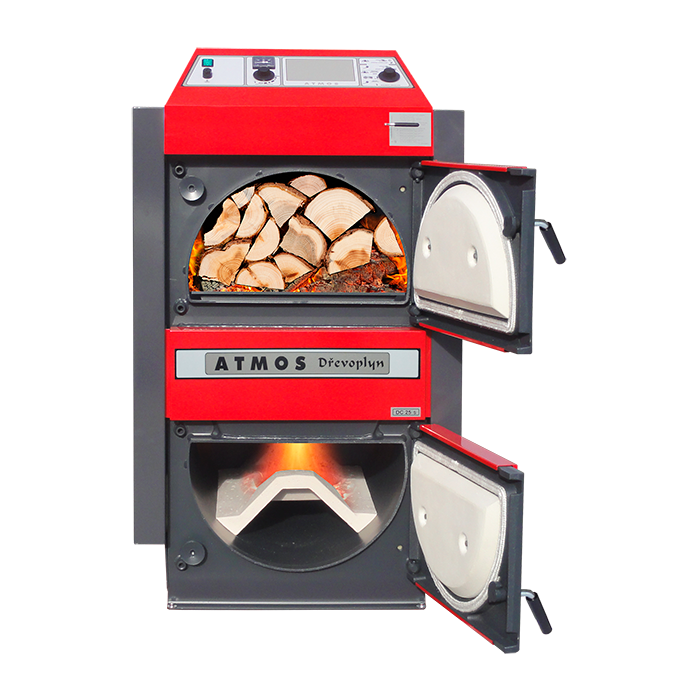

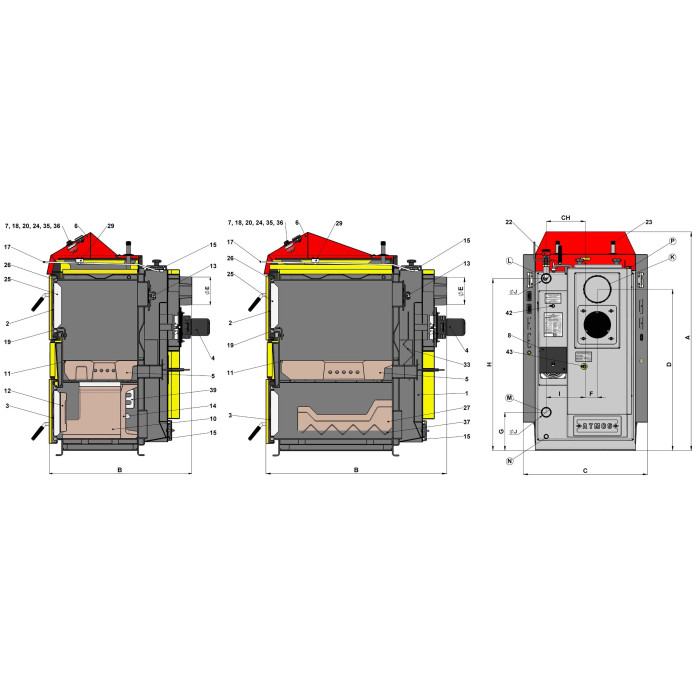

ATMOS boilers are designed for heating individual houses or other facilities. The boiler is intended for burning wood only. Any dry wood can be used: logs, briquettes. The spacious combustion chamber does not require wood to be split or specially prepared. Time and physical effort are saved. When using large-sized wood, the combustion time is extended, but the maximum power is reduced. The ATMOS boiler consists of two chambers stacked one on top of the other. Fuel is burned in the upper chamber, while the combustion of gases released from the wood occurs in the lower chamber. The intensity of the combustion process and the amount of air in the combustion chamber are controlled by an exhaust fan and a draft regulator. This way, the combustion time of a single fuel charge is extended. Wood and wood chip briquettes are used as fuel. You can use sawdust or shredded wood chips in small amounts together with logs, up to a maximum of 10% of the loading volume. All ATMOS solid fuel gasification boilers are equipped with a cooling system. ATMOS gasification boilers have a semi-circular gasification chamber with preheated primary and secondary air supply. High-temperature ceramic catalysts are used in these boilers to achieve more efficient secondary combustion. Boilers operating on this principle save fuel and maintain an environmentally friendly working process. Due to well-regulated air intake and circulation in the boiler chamber, combustion features a hot, stable flame.
Advantages of the ATMOS boiler:
- The boiler is designed for burning logs, wood chip, and peat briquettes.

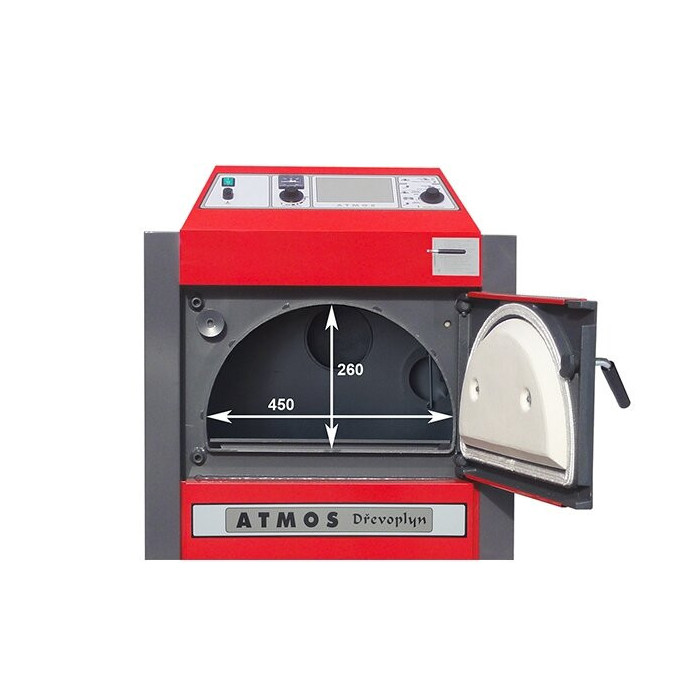

- Large fuel loading chamber.
- Operates on the gasification principle.

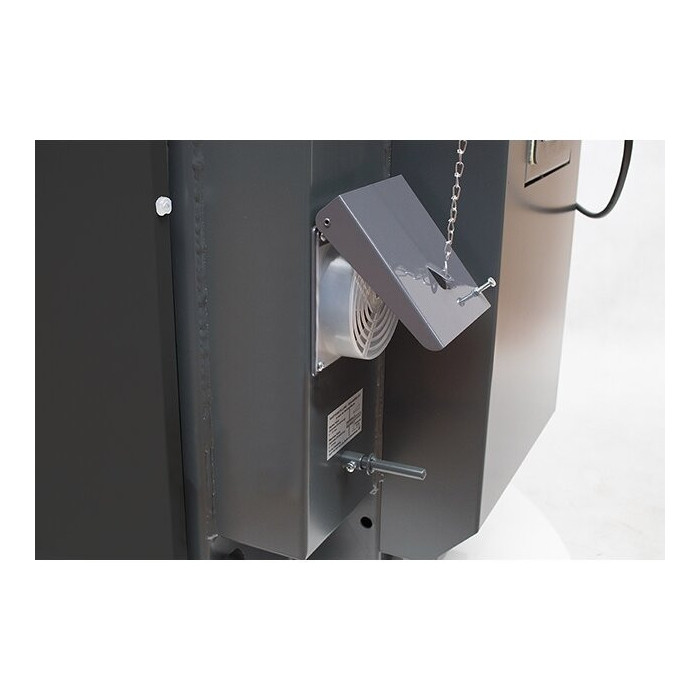

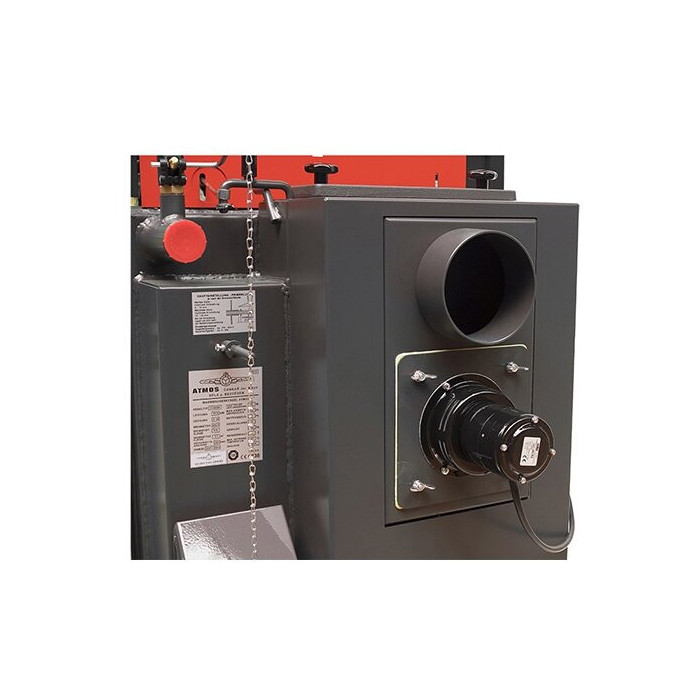

- Equipped with an exhaust fan that automatically turns off after the fuel has burned out.

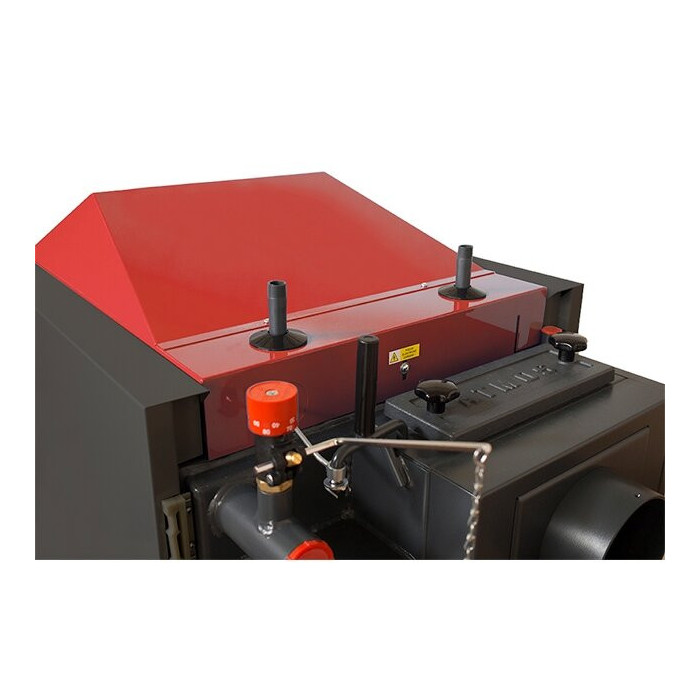

- The boiler has an emergency cooling coil that protects the system from boiling.
- Efficiency coefficient of up to 81 -90%.

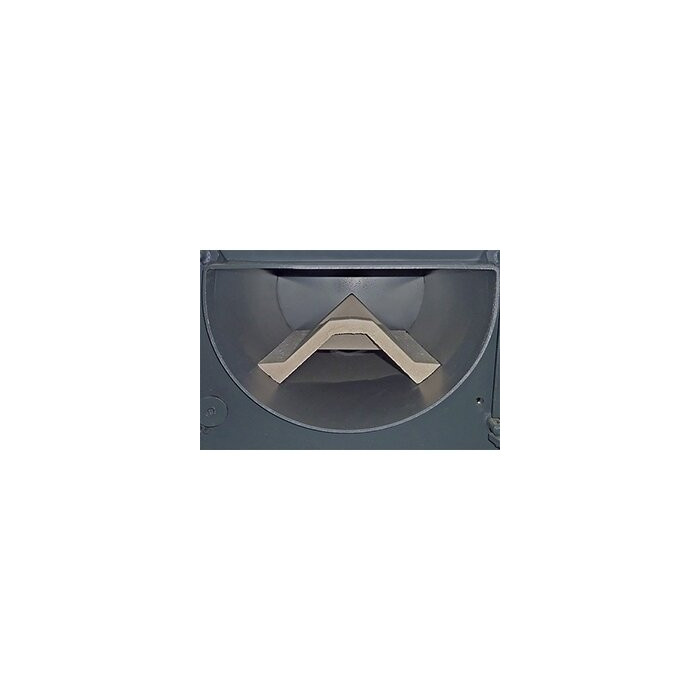

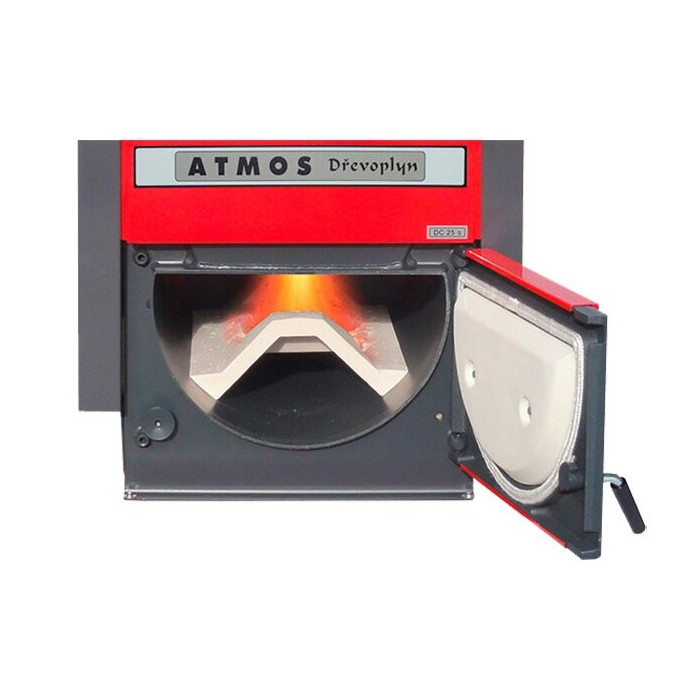

- Ceramic combustion chamber.
- Easy to use and clean.
- Primary and secondary air is heated to high temperatures.

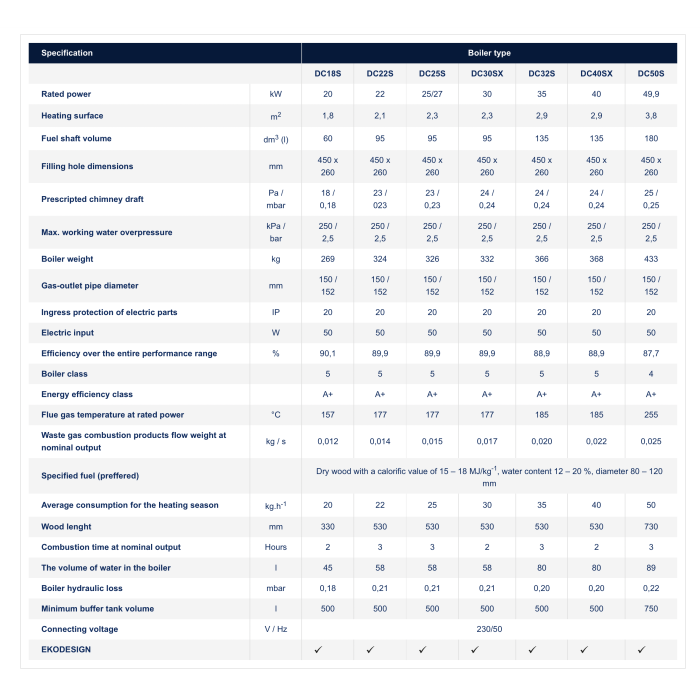

Technical parameters:
- Technical parameters
- Power 22 kW
- Efficiency coefficient 89.9%
- Fuel used Logs, peat briquettes, wood chip briquettes
- Combustion chamber volume 100 l
- Log length 530 mm
- Water volume in the boiler 58 l
- Chimney diameter 152 mm
- Required chimney draft 23 Pa
- Heat exchanger surface area 2.1 m2
- Electricity consumption 50 W
- Voltage 230V/50Hz

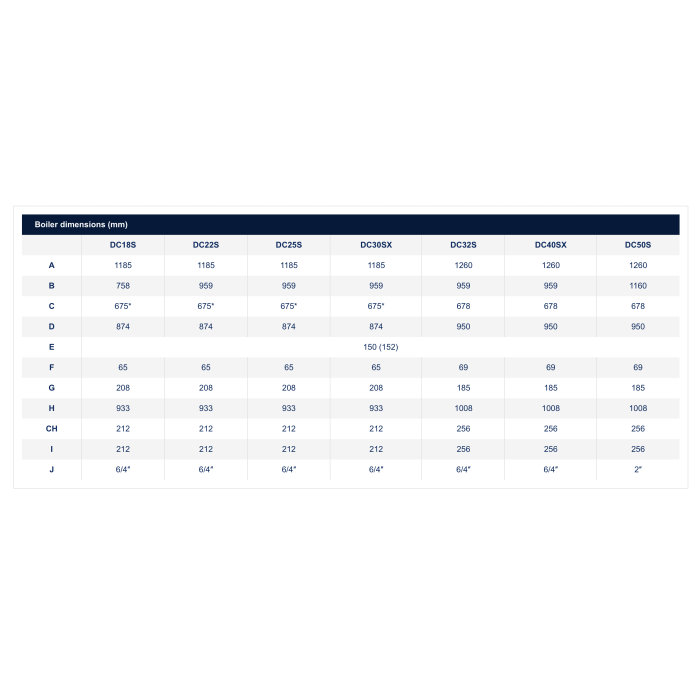

- Dimensions: height x width x length 1185 x 675 x 959 mm
- Weight 319 kg
More information in downloadable files.
Warranty: 3 years
Manufacturer: ATMOS (Czech Republic)
Product images are for illustrative purposes only and are examples. Video links in the product description are for informational purposes only, so the information provided may differ from the actual product. The colors, inscriptions, parameters, dimensions, sizes, functions, and/or any other properties of original products may appear differently than in reality due to their visual characteristics, so please refer to the product specifications listed in the product descriptions. If you have any questions, please contact us via email or phone listed in the contact section.
DC22S
