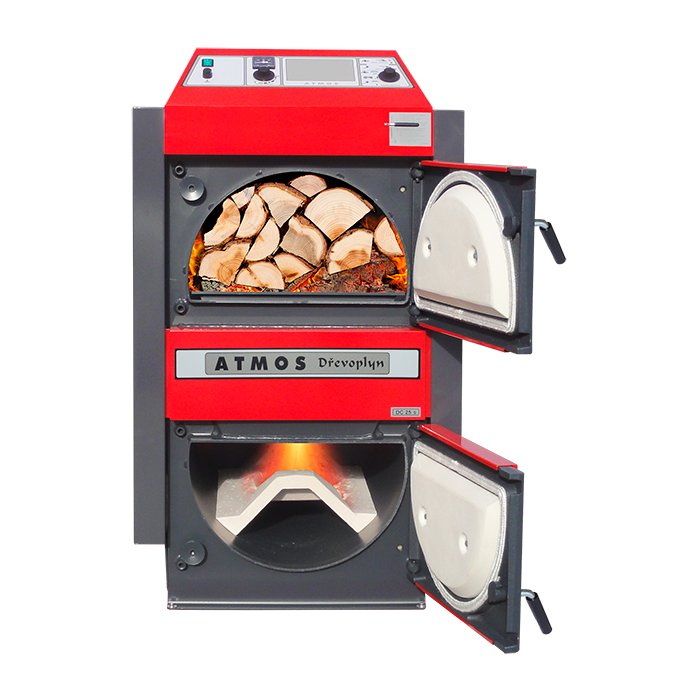

Solid fuel gasification boiler ATMOS 20-27 kW, DC25S

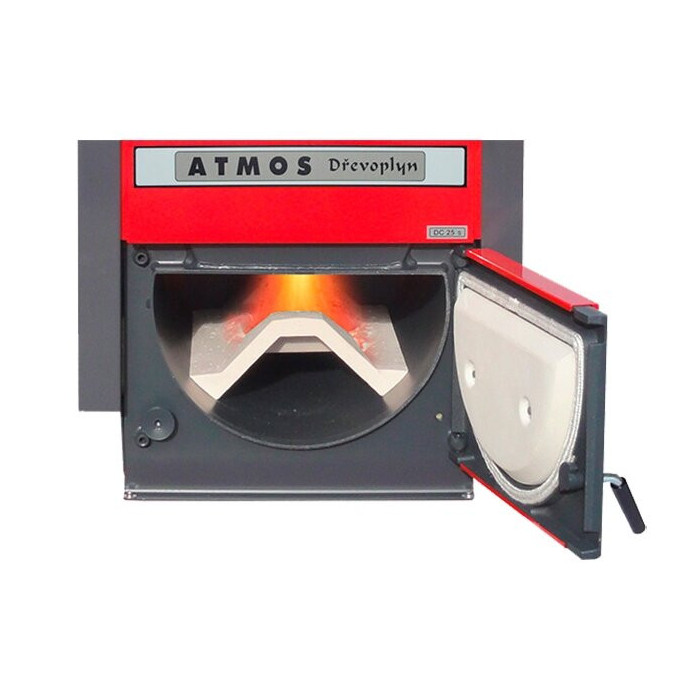

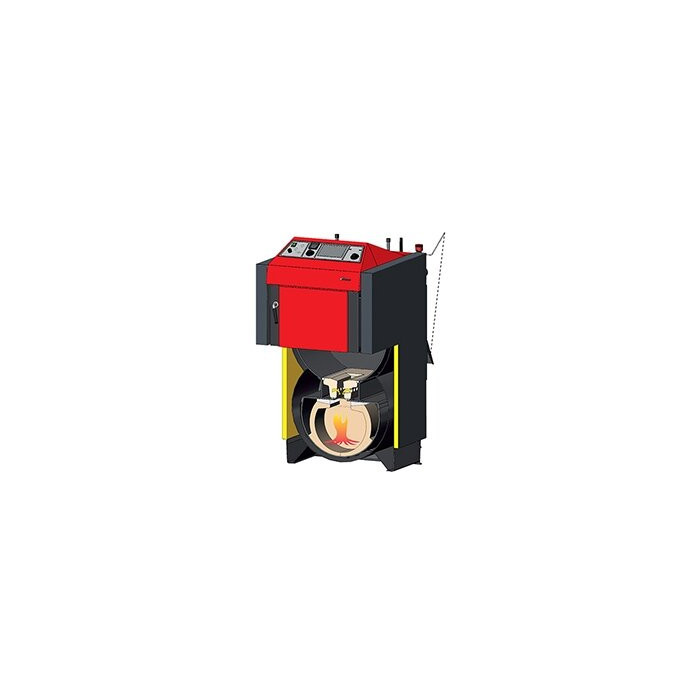

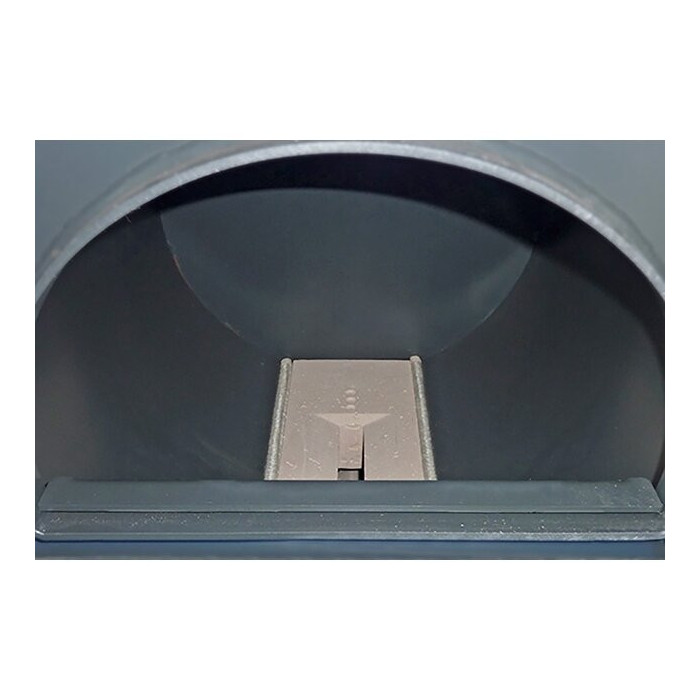

ATMOS boilers are designed for heating individual houses or other facilities. The boiler is intended for wood burning only. Any dry wood can be used: logs, briquettes. The spacious combustion chamber does not require wood splitting or special preparation. Time and physical effort are saved. When using large-sized wood, the burning time is extended, but the maximum power is reduced. The ATMOS boiler consists of two chambers stacked one on top of the other. Fuel is burned in the upper chamber, while the combustion of gases released from the wood takes place in the lower chamber. The intensity of the combustion process and the amount of air in the combustion chamber are controlled by an exhaust fan and a draft regulator. This way, the burning time of a single fuel load is extended. Wood and wood chip briquettes are used as fuel. Sawdust or shredded wood chips can be used in small quantities together with logs, up to a maximum of 10% of the load volume. All ATMOS solid fuel gasification boilers are equipped with a cooling device. ATMOS gasification boilers have a semi-circular gas generation chamber with preheated primary and secondary air supply. High-temperature ceramic catalysts are used in these boilers to achieve more efficient secondary combustion. Boilers operating on this principle save fuel and maintain an eco-friendly working process. Due to well-regulated air intake and circulation in the boiler chamber, combustion features a hot, stable flame.
Advantages of the ATMOS boiler:
- The boiler is designed for burning logs, wood chip, and peat briquettes.
- Large fuel loading chamber.
- Operates on the gasification principle.

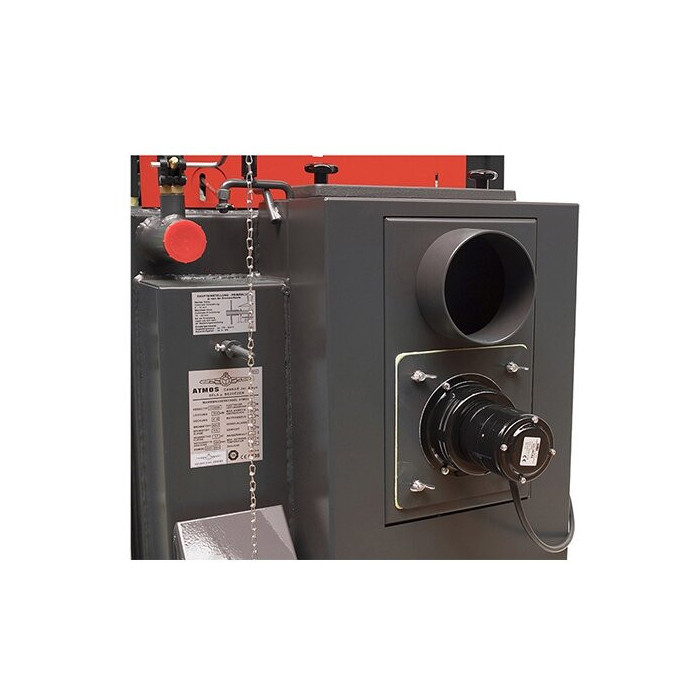

- Equipped with an exhaust fan that automatically turns off after the fuel has burned out.
- The boiler is equipped with an emergency cooling coil that protects the system from boiling.
- Efficiency coefficient of up to 81 - 90%.

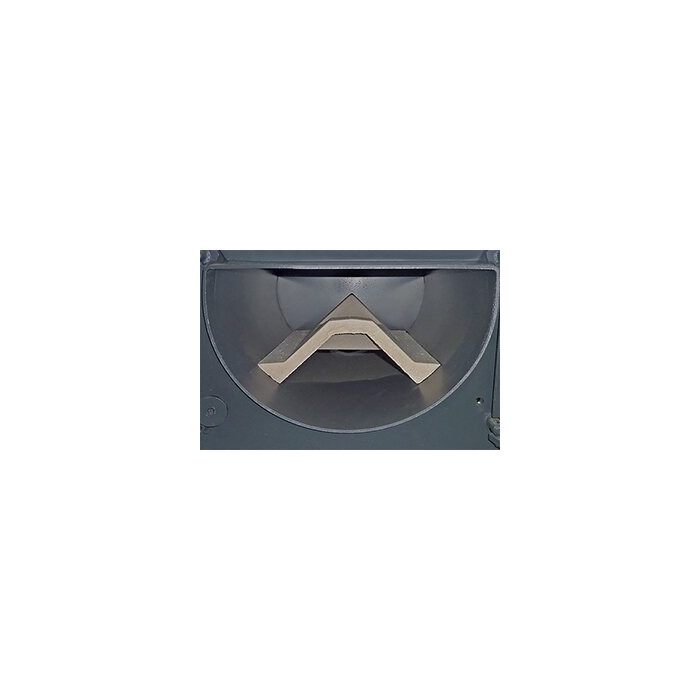

- Ceramic combustion chamber.
- Easy to use and clean.
- Primary and secondary air is heated to high temperatures.

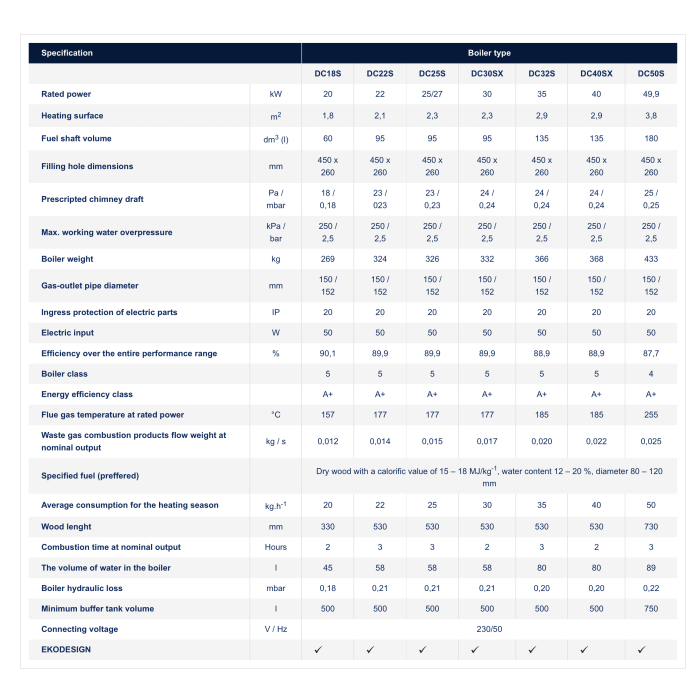

Technical parameters:
- Technical parameters
- Power 27 kW
- Efficiency coefficient 89.9%
- Fuel used Logs, peat briquettes, wood chip briquettes

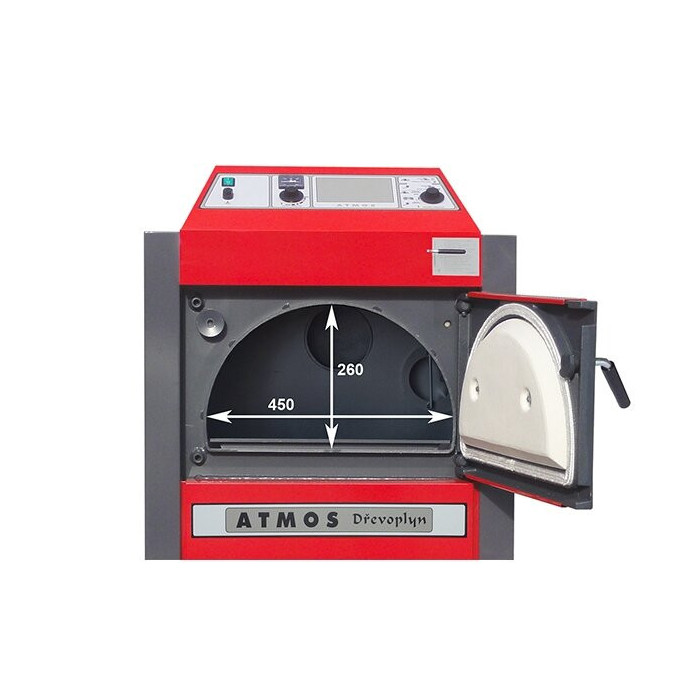

- Combustion chamber volume 100 l
- Log length 530 mm
- Water volume in the boiler 58 l
- Chimney diameter 152 mm
- Required chimney draft 23 Pa
- Heat exchanger surface area 2.1 m2
- Electricity consumption 50 W
- Voltage 230V/50Hz

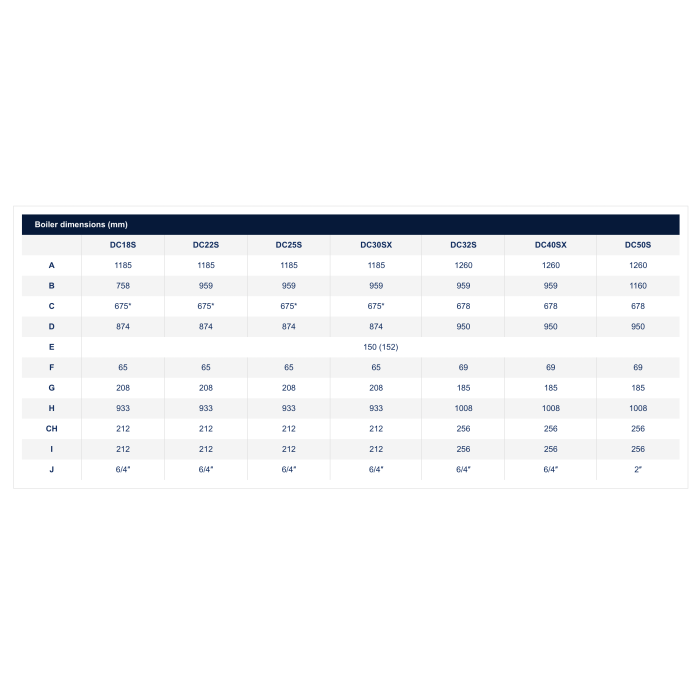

- Dimensions: height x width x length 1185 x 675 x 959 mm
- Weight 326 kg
More information in downloadable files.
Warranty: 3 years
Manufacturer: ATMOS (Czech Republic)
