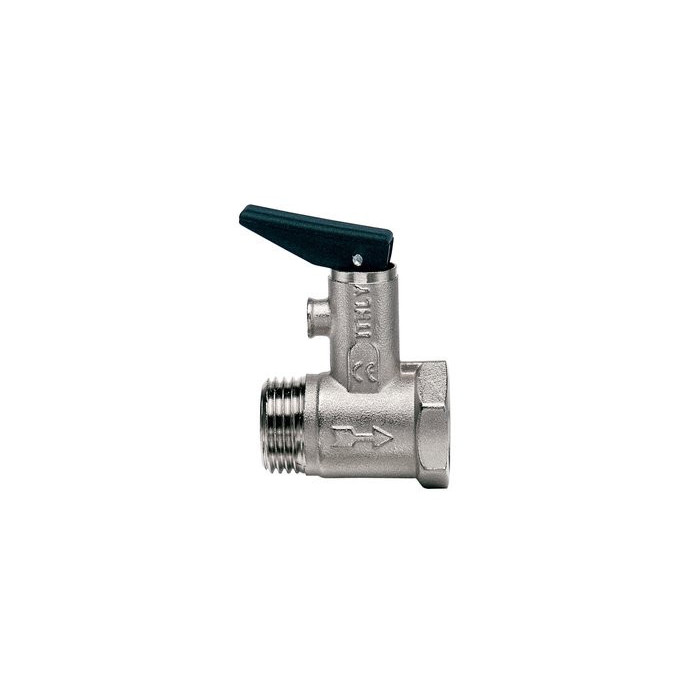

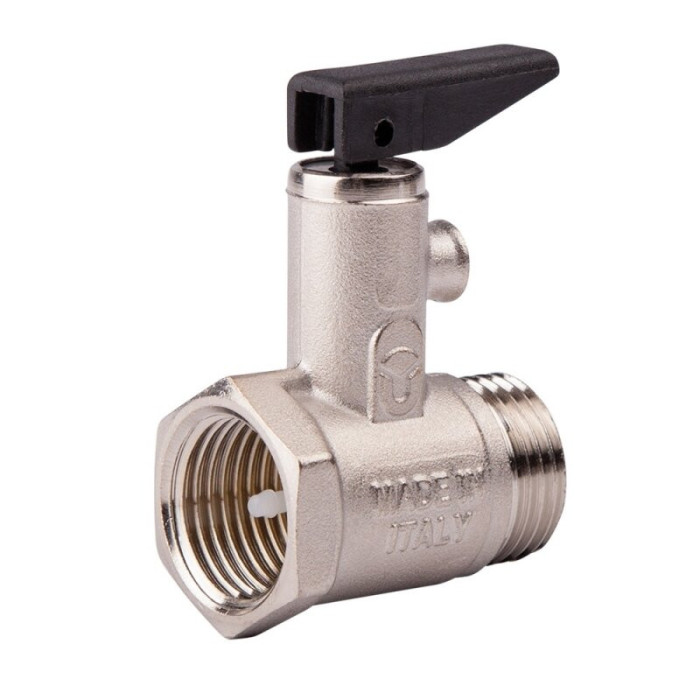

Protective check valve for water heater GENERAL DETAILS 3/4"" 8 bar, with handle
SKU:
AVS20R
11.00 €
/pcs.
vnt.
vnt.
9,09 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Check valve for water heater GENERAL FITTINGS 3/4" 8 bar, with handle
Thread: 3/4" internal / 3/4" external
Minimum operating temperature: 2° C
Operating temperature: 120° C
Maximum operating pressure: 8.5 bar
Purpose: suitable for water heaters from various manufacturers
The safety valve ensures the safe operation of electric, combined, and indirect heating water heaters. It allows these water heaters to be connected to drinking and hot domestic water pipelines up to a maximum operating pressure of 0.6 MPa. For pipelines with higher pressure, a pressure reducing valve must be installed before the safety valve to reduce the system pressure to 0.6 MPa. This safety valve also includes a check valve that prevents water from flowing back into the water supply system when the pressure in this heater rises. Excess water simply drains into the sewage system. The safety valve regulates the overpressure that occurs when heating water in the heater or in the event of a failure of the safety thermostat.
Manufacturer: GENERAL FITTINGS (Italy)
