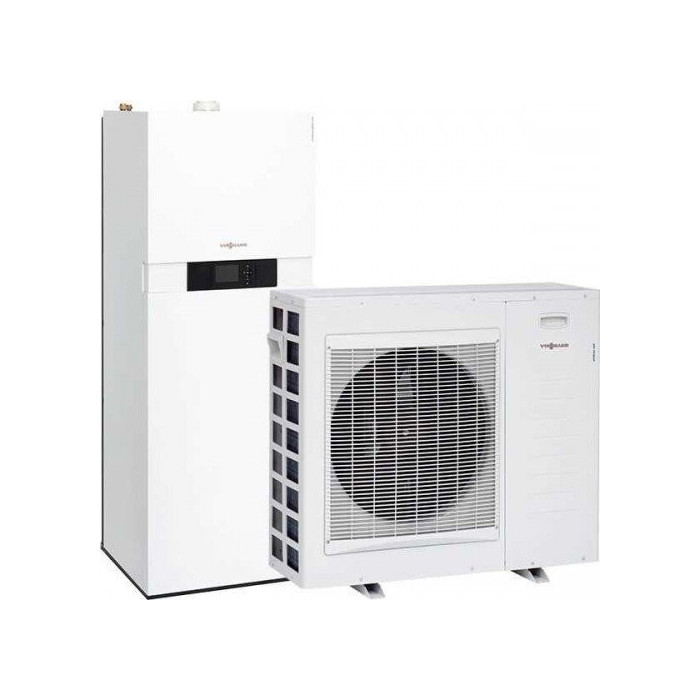

Air-water heat pump VIESSMANN Vitocal 111-S AWBT-M-E-AC 111.B08, 8.13 kW 230/400 V with integrated 210 l hot water tank.
SKU:
Z019115
5,719.00 €
/pcs.
vnt. 7,625.00 €
vnt. 7,625.00 €
4 726,45 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Heat pump air-water VIESSMANN Vitocal 111-S AWBT-M-E-AC 111.B08, 8.13 kW 230/400 V with integrated 210 l hot water tank, with 9 kW electric heater, with cooling function, R32 Z019115
New compact air-water heat pump Vitocal 111-S
- Controller Vitotronic 200 WO1C
- Integrated 210 l. (net) volume water heater
- Integrated instantaneous 9 kW electric heater
- Integrated heating system expansion vessel 10 l and safety group
- Optional hydraulic connections on top, or left/right (mandatory)
- Variants with “AC” have a cooling function
- For efficient system operation, it is recommended to use the Vitocell 100-W SVPA storage tank
- Refrigerant R32
- Low operating costs due to high COP value (COP = "Coefficient of Performance") according to EN 14511: up to 5.1 (A7/W35)
- Power regulator and DC inverter for high efficiency in partial load operation.
- Max. supply water temperature: up to 58 °C
- Internal unit with extremely efficient circulation pump, condenser, 3-way switching valve, safety group, expansion vessel, and regulator
- The heating circuit with mixer M2/SH2 can be connected directly to the internal unit: all necessary components (accessories) are integrated into the internal unit.
- Instantaneous water heater can be integrated (accessory)
- Easily manageable Vitotronic controller with text and graphic display
- Optimized use of electricity generated by a photovoltaic system
- With Vitoconnect (accessory), it can be controlled and technically maintained online via Viessmann App applications
- Separated design air/water heat pump with electric drive with external and internal unit.
- Internal unit with heat pump controller Vitotronic 200, especially efficient circulation pump for secondary circuit, 3-way switching valve, flow control relay, membrane pressure expansion vessel, and safety group.
- VITOCAL 111-S Type AWBT(-M) 111.B and AWBT(-M)-AC 111.B
- Type AWBT/AWBT-M 111.B: compact heat pump device for heating (cooling) rooms and heating domestic hot water in heating systems. With integrated volume water heater (210 l capacity)
- Type AWBT-AC/AWBT-M-AC 111.B: equipment as type AWBT/AWBT-M 111.B, additionally with cooling function "Active cooling"
- Description
- Type AWBT-M-E-AC 111.B06
- Nominal heating power
- Heat power range kW 6.02 3.0 to 6.6
- COP (+7/35) 4.90
- Heating power data according to EU Regulation No. 813/2013 (average climate conditions)
- Low-temperature applications (W35)
- Seasonal energy conversion coefficient (SCOP) 4.47
- Electric power consumption kW 1.23
- Fan speed rpm 600
- Heating mode (-Min.) ºC -20
- Cooling mode (-Max.) ºC 35
- Cooling mode (-Min.) ºC 10
- Cooling mode (-Max.) ºC 48
- Heating water (secondary circuit)
- Minimum flow rate l/h 700
- Minimum heating system volume (non-closed) l 52
- Max. external pressure loss (RFH), mbar 700
- at minimum flow rate kPa 70
- Max. supply water temperature ºC 58
- External unit electrical values
- Nominal voltage
- Max. operating current A 9.0
- Starting current A 2
- Protection A B13
- Protection class IPX4
- Internal unit electrical values
- Heat pump controller / electronics
- Nominal controller / electronics
- voltage 1/N/PE 230 V/50 Hz
- Electric network connection protection A 1 x B16A
- Internal protection A T 6.3 A/250 V
- Instantaneous water heater
- Nominal voltage 1/N/PE 230 V/50 Hz or 3/N/PE 400 V/50 Hz
- Heating power kW 6.0
- Electric network connection protection A 3 x B16A
- Electric power consumption
- Fan (max.) W 86
- External unit (max.) kW 2.1
- Secondary pump (ITM) W 2 to 60
- External unit controller / electronics (max.) W 50
- Internal unit controller / electronics (max.) W 5
- Controller / electronics max. Power W 1000
- Refrigerant R32
- – Filling quantity kg kg 0.95
- Greenhouse gas potential (GWP) 675
- CO2 equivalent t 0.6
- Filling quantity from >10m to < 30 m long lines g/m 16
- Compressor (fully hermetic) Type With rotary piston
- Oil in compressor Type FW68DA
- Oil quantity in compressor l 0.42
- Integrated volume water heater
- Volume l 210
- External unit dimensions (mm)
- Total length mm 344
- Total width mm 975
- Total height mm 702
- Internal unit dimensions (mm)
- Total length mm 681
- Total width mm 600
- Total height mm 1874
- Total weight (kg)
- External unit kg 59
- Internal unit kg 168
- Energy efficiency class A+++
- Sound power level dB (A) 62
- Secondary circuit connections (with connection accessories, internal thread)
- Supply heating water line G 1¼
- Return heating water line G 1¼
- Hot water G ¾
- Cold water G ¾
- Circulation G ¾
- Refrigerant line connections
- Fluid line
- – Pipe mm 6 x 1
- Internal unit UNF ¼
