Control panel for floor heating with laid sensors TECH EU-M-9
SKU:
EU-M-9
470.00 €
/pcs.
vnt. 630.00 €
vnt. 630.00 €
388,43 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Wired sensor control panel for floor heating TECH EU-M-9
Wired control panel + WiFi module (flush mount)
The wired control panel is designed for the L-9 controller. The wired control panel M-9 is a device that enhances temperature control in rooms equipped with a 9 series floor heating system. This solution is designed to work with the L-9 R controller and is prepared to allow convenient management of the system's room regulators.
Control panel functions
The M-9r panel is the main device. It allows convenient control and editing of heating operation parameters for up to 32 zones. With the L-9R controller's control panel, it is easy to create work schedules and set specific temperature values separately. Additionally, individual zones can be turned on and off from the panel. The panel's screen also allows you to use additional options such as date and time settings, screen wallpaper, alarm, and programmed screen lock.
Device installation and registration

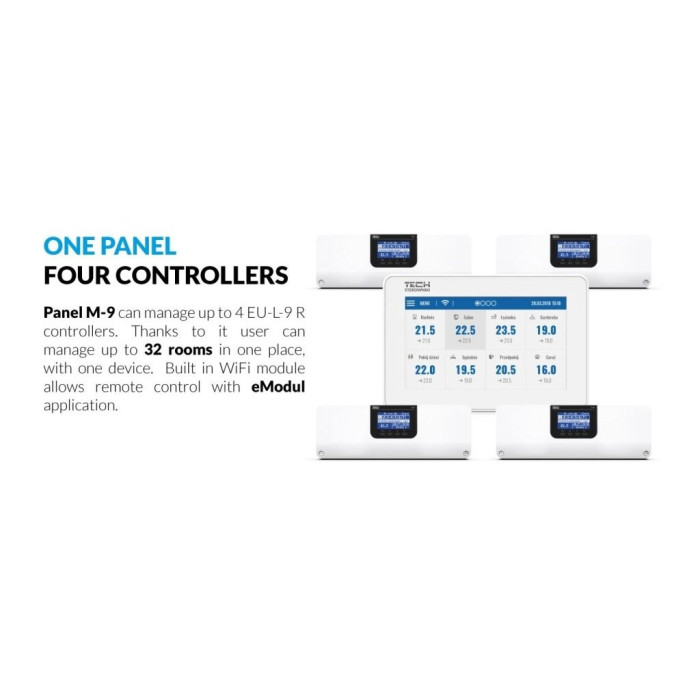

The wired control panel is designed to be installed in a flush-mounted box. Each L-9R controller must be registered with the M-9. To do this, you must first select the registration option on the M-9 device. Up to 4 L-9 R controllers can be registered on the central panel. Registration must be done sequentially, as simultaneous registration in multiple zones fails.
How to use the control panel

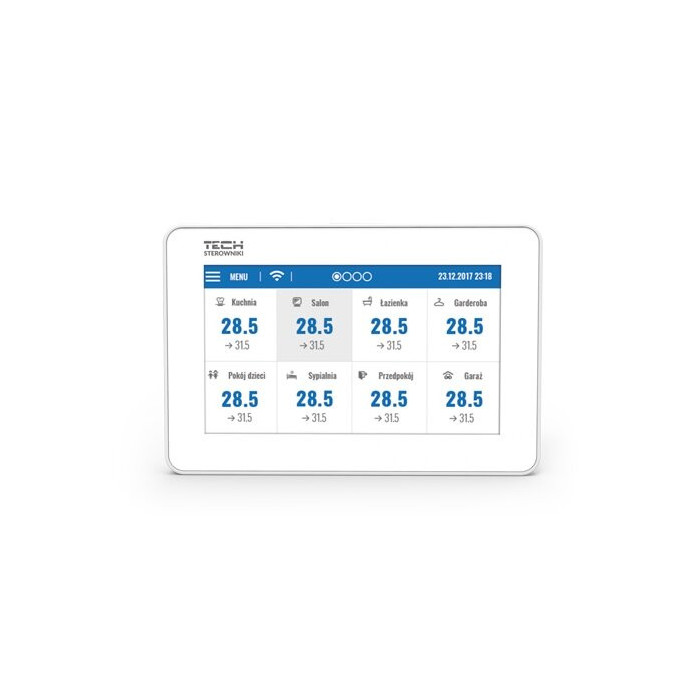

The clear touch panel allows easy control of subordinate devices. To make settings in the subordinate zone controllers, simply tap the screen area with information about its status. The heating controllers' control panel screen can be customized to your needs using the screen setting function. Among other things, you can set the screen wallpaper as a clock or date. Additionally, the user can choose the controller screen theme and turn the key sound on or off.
Remote system control
The integrated WiFi module allows convenient remote control of the system. The user can continuously monitor the status of all devices operating in the system on their computer, tablet, or smartphone screen. By enabling the internet module and selecting the DHCP option, the driver automatically downloads parameters from the local network, such as IP address, IP mask, gateway address, or DNS address.
No integrated temperature sensor.
Technical specifications:
Control panel for managing temperature in different zones EU-M-9
- Compatible only with the EU-L-9 console.
- The controller is responsible for managing and reviewing the parameters of the entire floor heating control set.
- Integrated WiFi module
- Changing parameters for each zone (setting schedules, set temperature)
- Zone on/off option
- Date and time setting for the entire set
- Screen brightness adjustment
- Screen wallpaper
- Notifications
- Screen lock
- Large 4.3-inch screen

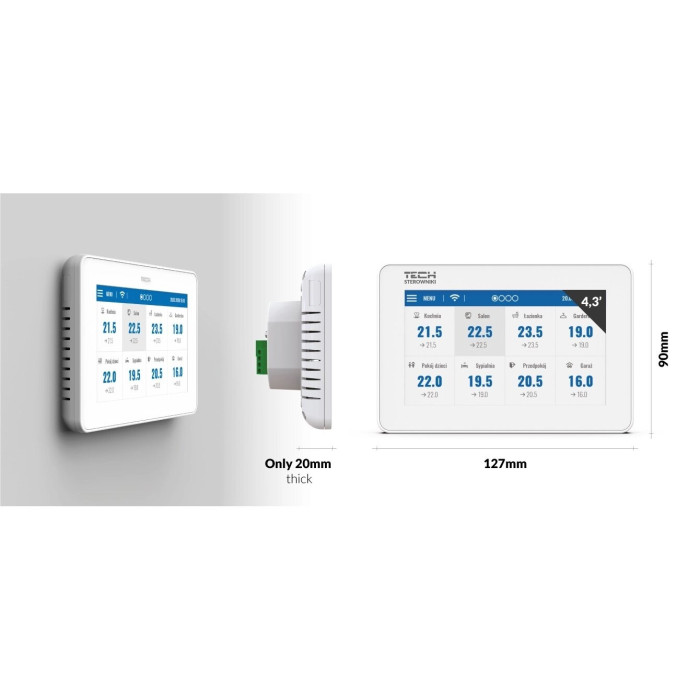

- Dimensions: 127 x 90 x 20mm
- Flush mount in electrical box (ø60 mm).

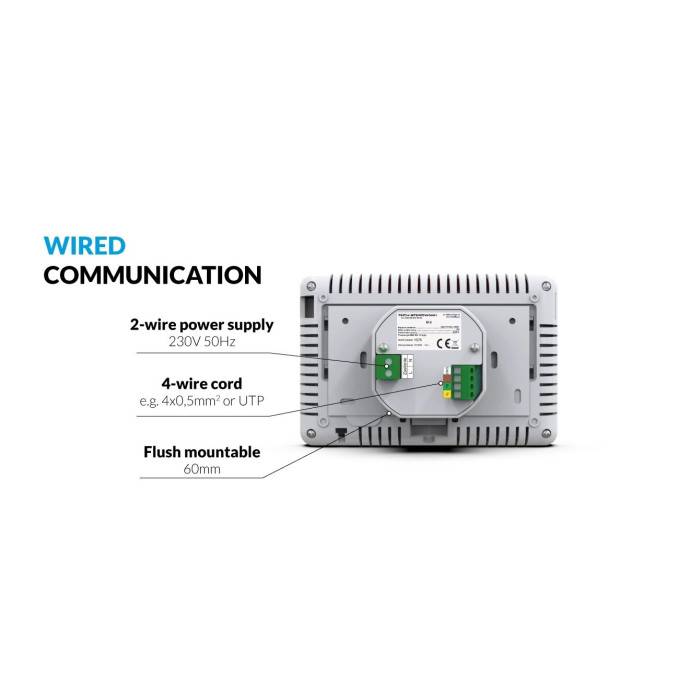

- Power supply 230V (2 wires), communication with console (4 wires).
- Controller composition: control panel, mounting plate, instruction.
Warranty: 2 years
Manufacturer / brand: TECH (Poland)
