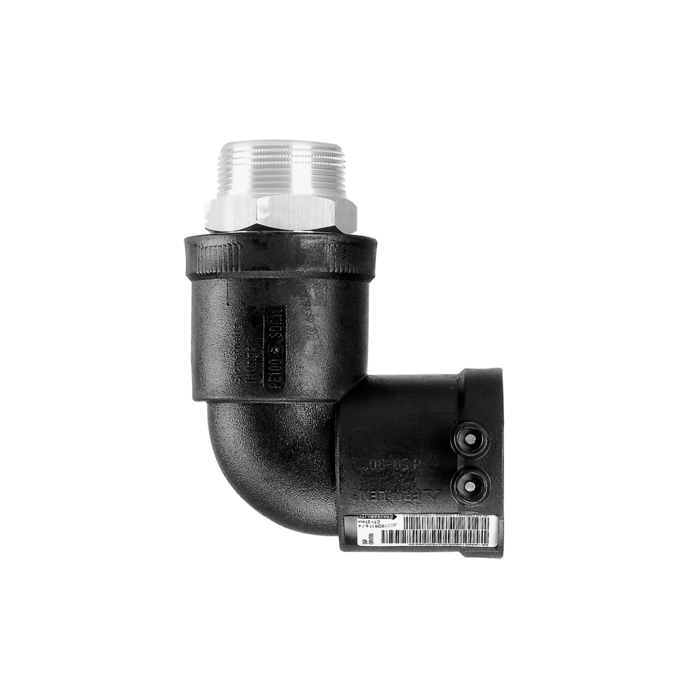

Elektra female elbow with brass thread FRIATEC 32 x 1"" exterior, PN16
SKU:
612120
50.44 €
/pcs.
vnt.
vnt.
41,69 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Elektra rising elbow with brass thread FRIATEC 32 x 1" external, PN16
With open spirals for optimal heat transfer to the pipe, deep, wide welding zones, cold zones at the ends and in the middle prevent molten polyethylene from leaking. Can be installed without brackets.
Good reasons to use FRIALEN:
- Deep joint connection for easier pipe alignment (no need for holding clamps)
- Especially wide fusion zones
- Maximum stability due to high wall thickness
- Cold zones on the front side of the fitting and in the middle
- Open heating coil for direct heat transfer to the pipe
- Small annular gap for optimal joining pressure to form in the melting zone
- Contacts safe to touch
- Fusion indicator for visual synthesis control
- Durable batch marking
- Individually packaged for protection against dirt
- Additional barcode for joint traceability (tracking coding)
Technical specifications:
- External joint diameter: 32 mm;
- Brass thread: 1" external
- Color: black
- Material: PE100 (SDR11)
- Maximum pressure: PN16 for water and PN10 for gas
- Application: for water and gas
FRIALEN-Safety Fittings can be connected with SDR 11-17.6 step pipes. Minimum wall thickness s min ≥ 3 mm. Other SDR steps available on request. Please pay attention to the labeling directly on the product, which is mandatory. DVGW registration numbers: DV-8601AU2248, DV-8606AU2249 and DV-8611AU2250
Areas of application
FRIALEN-Elbow W90° is used for all direction changes in HD-PE pipes.
Assembly instructions
The fusion of pipe ends with FRIALEN occurs using the FRIALEN melting method – impermeable and longitudinally strong.
The pipe ends are prepared according to the general assembly instructions (see "Joining instructions" in the "FRIALEN-Safety Fittings for home connections and distribution pipes up to d 225" section). This includes the removal of oxide skin and cleaning of the pipe ends.
Manufacturer: FRIATEC (Germany)
