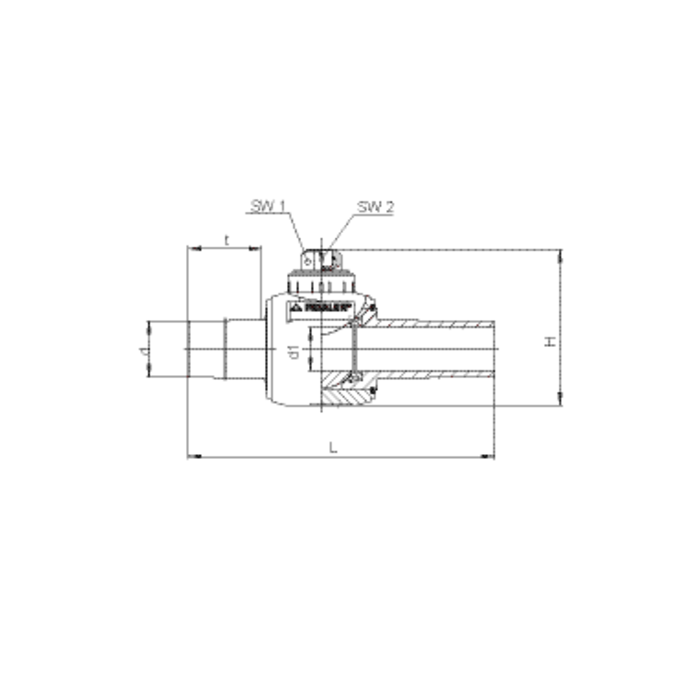

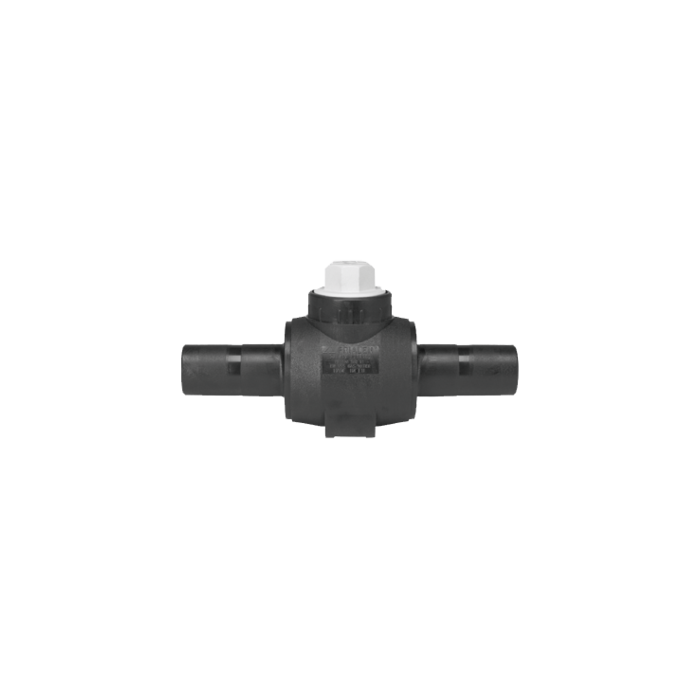

Elektra female ball valve FRIATEC KHW 32, PN16, water-resistant
SKU:
616656
100.33 €
/pcs.
vnt.
vnt.
82,92 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Elektra female ball valve FRIATEC KHW 32, PN16, water-resistant
With open spirals for optimal heat transfer to the pipe, deep, wide welding zones, and cold zones at the ends and in the middle prevent molten polyethylene from leaking. Can be installed without brackets.
Good reasons to use FRIALEN:
- Deep connection depth for easier pipe alignment (no need for holding clamps)
- Especially wide fusion zones
- Maximum stability due to high wall thickness
- Cold zones on the front side of the fitting and in the middle
- Open heating coil for direct heat transfer to the pipe
- Small annular gap for optimal joining pressure to form in the melting zone
- Contacts safe to touch
- Fusion indicator for visual synthesis control
- Durable batch marking
- Individually packaged for protection against dirt
- Additional barcode for connection tracking (tracking coding)
Technical specifications:
- External connection diameter: 32 mm;
- Color: black
- Sealing gasket: EPDM
- 1/4 for opening - closing
- Material: PE100 (SDR11)
- Maximum pressure: PN16 for water supply and PN10 for gas supply
- Application: for water and gas
FRIALEN-Safety Fittings can be connected with SDR 11-17.6 pipe stages. Minimum wall thickness s min ≥ 3 mm. Other SDR stages available on request. Please pay attention to the labeling directly on the product, which is mandatory. DVGW registration no.: DV-8601AU2248, DV-8606AU2249, and DV-8611AU2250
Areas of application
FRIALEN is used for all directional changes in HD-PE pipes.
Assembly instructions
The fusion of pipe ends with FRIALEN occurs using the FRIALEN melting method – impermeable and longitudinally strong.
Pipe ends are prepared according to general assembly instructions (see "Joining instructions" in the "FRIALEN-Safety Fittings for home connections and distribution pipes up to d 225" section). This includes removing oxide skin and cleaning the pipe ends.
Manufacturer: FRIATEC (Germany)
