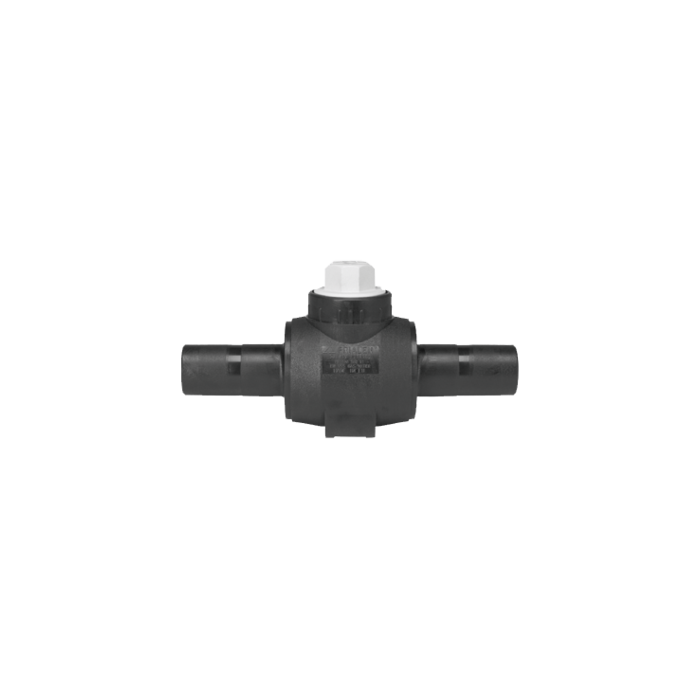

Elektra female ball valve FRIATEC KHW 40, PN16, water-resistant
SKU:
616657
108.75 €
/pcs.
vnt.
vnt.
89,88 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Elektra welding ball valve FRIATEC KHW 40, PN16, for water
With open spirals for optimal heat transfer to the pipe, deep, wide welding zones, and cold zones at the ends and in the middle prevent molten polyethylene from leaking. Can be installed without supports.
Good reasons to use FRIALEN:
- Deep joint depth for easier pipe alignment (no need for holding clamps)
- Especially wide fusion zones
- Maximum stability due to high wall thickness
- Cold zones on the front side of the fitting and in the middle
- Open heating coil for direct heat transfer to the pipe
- Small annular gap for optimal joining pressure to form in the melting zone
- Contacts are safe to touch
- Fusion indicator for visual synthesis control
- Durable batch marking
- Individually packaged for protection against dirt
- Additional barcode for joint traceability (tracking coding)
Technical specifications:
- External joint diameter: 40 mm;
- Color: black
- Sealing gasket: EPDM
- 1/4 for opening - closing
- Material: PE100 (SDR11)
- Maximum pressure: PN16 for water and PN10 for gas
- Application: for water and gas
FRIALEN-Safety Fittings can be connected to SDR 11-17.6 pipe stages. Minimum wall thickness s min ≥ 3 mm. Other SDR stages available on request. Please note the labeling directly on the product, which is mandatory. DVGW registration no.: DV-8601AU2248, DV-8606AU2249, and DV-8611AU2250
Areas of application
FRIALEN is used for all directional changes in HD-PE pipes.
Assembly instructions
Welding the ends of the pipe with FRIALEN is done using the FRIALEN melting method – impermeable and longitudinally strong.
The ends of the pipes are prepared according to the general installation instructions (see "Joining instructions" in the "FRIALEN-Safety Fittings for home connections and distribution pipes up to d 225" section). This includes removing the oxide skin and cleaning the ends of the pipes.
Manufacturer: FRIATEC (Germany)
