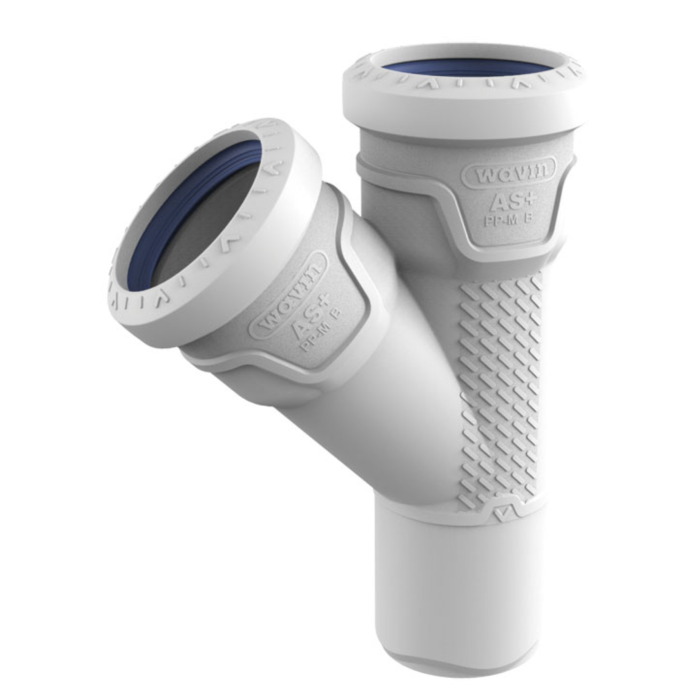

Low-noise internal sewage tee WAVIN AS+ 50 x 45°
SKU:
3079996
7.38 €
/pcs.
vnt. 11.36 €
vnt. 11.36 €
6,10 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Low-noise internal sewage tee WAVIN AS+ 50 x 45°
Diameter: outer 50 mm
Angle: 45 degrees
Wall thickness: 3.0 mm
Name: AS+
Wavin AS+ - a fully equipped low-noise internal sewage system, manufactured in Germany from Astolan - a plastic material that replaces cast iron. High-quality pipes with an outer diameter of 50, 75, 90, 110, 160, and 200 mm are produced, along with all necessary connecting and fitting parts. Compared to cast iron systems, the systems made from Wavin AS+ products are installed faster, as socket joints are used.
Wavin AS+ products are resistant to hot water and meet DIN 1986 requirements - they can withstand 20° C temperature for a short time and 90°C for a long time. These products can be used for wastewater with a pH of 2 to 12.
Simple, quick, and economical installation
Wavin AS+ products are lightweight compared to cast iron systems, making them easy to lift or transport. Pipe parts are connected using practically tested socket joints, and the pipes are easy to cut, allowing for quick and easy installation. Time is saved, and costs are reduced.
Durable noise insulation material
Wavin AS+ products are very strong, corrosion-resistant, and do not accumulate deposits. Optimal conditions for long-term operation.
No problems with hot and greasy water
Wavin AS+ products are highly resistant to hot and greasy water (for example, from food preparation establishments)
Application
Suitable for individual houses, multi-storey buildings, administrative buildings, hospitals, hotels. Can be installed: separate sewage discharge lines, stacks, rain stacks, collectors, ventilation pipes.
Material
"Astolan" - polypropylene reinforced with a mineral material, resistant to hot water. Due to its high density and special molecular structure, Astolan can absorb noise transmitted through both air and structure.
Physical characteristics:
- Density: 1.9 g/cm3 DIN 53479
- Elongation at break: 29%
- Tensile strength: 13 N/mm2
- Modulus of elasticity: 3800 N/mm2
- Thermal elongation coefficient: 0.09 mm/mK
- Fire resistance class: B2 according to DIN 4102
- Noise transmission: 12.8 dB (A)* at 2.0 l/s water
- Color: light gray, RAL 7035
* data measured on a 220 kg/m2 wall. Installation - outside the measuring room
More information in downloadable files.
Manufacturer: WAVIN (Germany)
