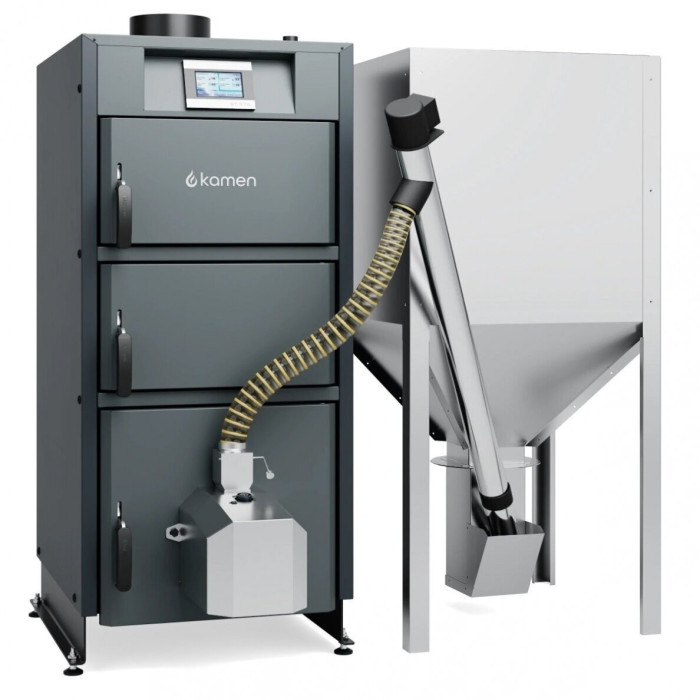

Granule Boiler KAMEN Pellet Plus 50 kW

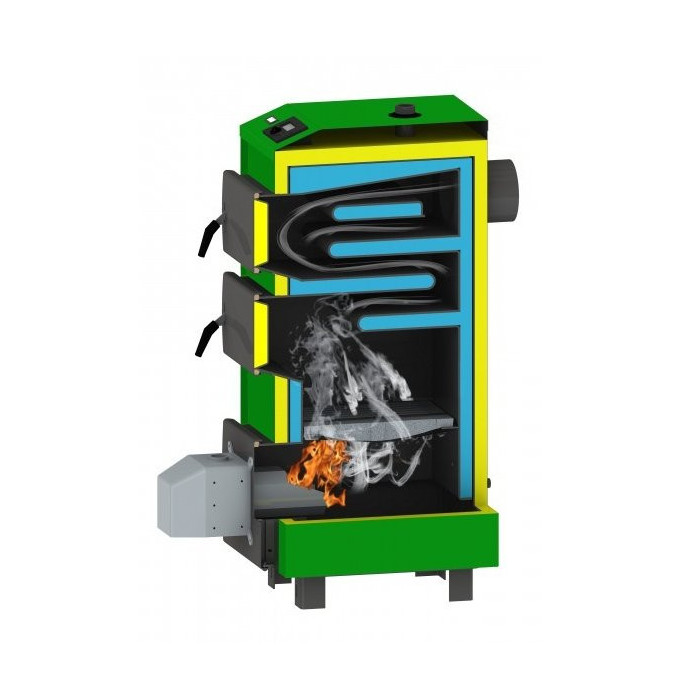

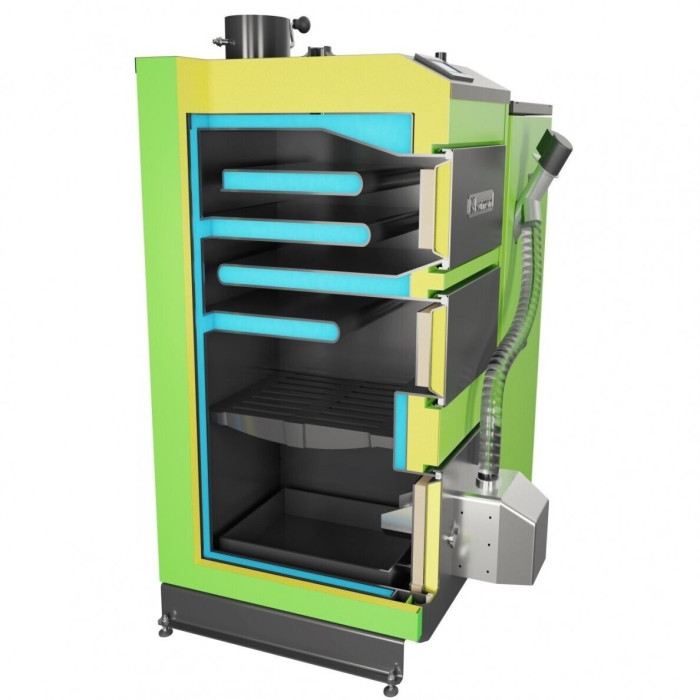

The body of the pellet boiler "Kamen Pellet Plus" is made of certified 6 mm thick boiler steel 265GH and insulated with mineral wool.
The Kamen Pellet Plus pellet boiler is equipped with the latest technology stainless steel burner "Comfort" with automatic ignition, capable of burning not only wood pellets but also grains and other similar fuels.
The operation of this burner is controlled by a modern electronic controller. The burner has a "Full Clean" function - mechanically removes ash automatically.
The boiler doors can be opened to the left or right. The upper doors are intended for cleaning the boiler.
At the customer's request, the fuel tank can be located on the left or right side of the boiler, as well as at the front of the boiler.
The boiler is controlled electronically: when the temperature drops to the specified level, the fuel ignites automatically (according to the room thermostat data). When the room temperature rises to the set level, the boiler automatically goes out and waits for the next command from the controller.
Additionally, the installation of the supply and return pipe can be ordered on the left or right side of the boiler.
- The heat exchanger of the boiler is provided with a warranty of up to 6 years; *
- High efficiency coefficient (over 91%);
- Automatic ignition and extinguishing;
- Automatic ash blowing;
- Temperature modulation;
- Circulation pump control for the heating system;
- Circulation pump control for the boiler (in summer, hot water can be prepared only);
- Floor heating control;
- Servo drive control;
- Temperature regulation according to the room thermostat;
- Boiler overheating alarm signal;
- Fuel shortage alarm signal;
- Pellet ignition and extinguishing with the push of a button;
- Parameters remain set (after power outage);
- Easy cleaning of the boiler;
- Simple operation;
- Heat exchanger made of 6 mm thick boiler steel;
- Large fuel capacity;
- Fuel tank can be on the left, right side, or at the front of the boiler.

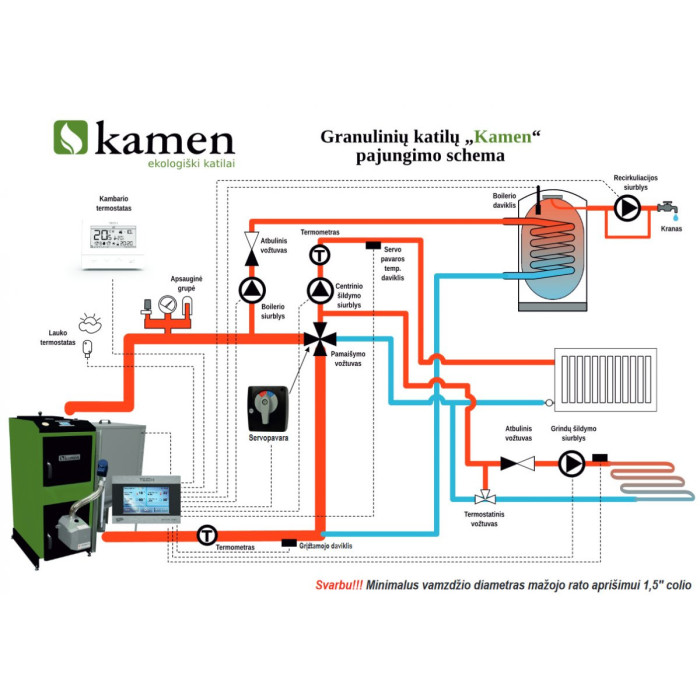

* the boiler room must be installed and the boiler connected according to the sample connection diagram of the pellet boiler - a three-way or four-way mixing valve must be installed, suitable fuel must be used, and other manufacturer requirements must be followed.
- Power, kW: 50 kW
- Heat exchanger area, m²: 5

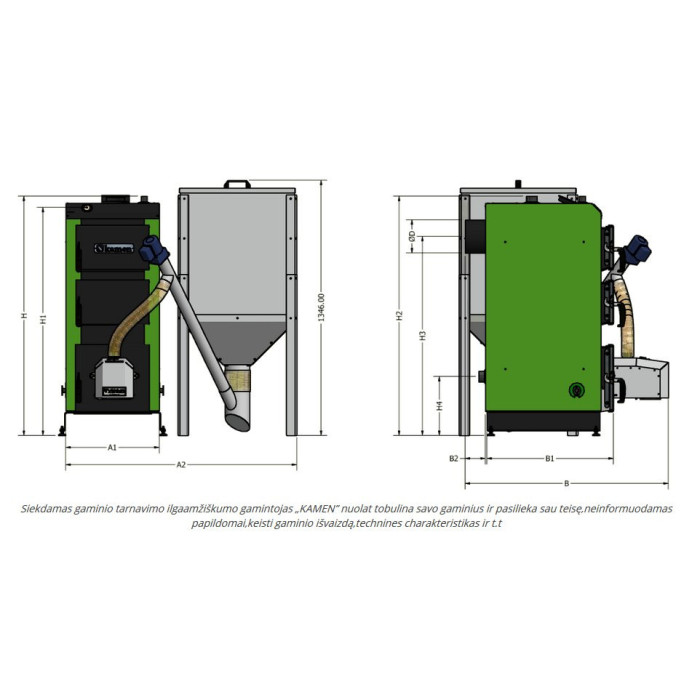

- Max boiler width (A2), mm: 1590
- Boiler width (A1), mm: 690
- Fuel tank width, mm: 900
- Max boiler depth (B), mm: 1200
- Boiler depth (B1), mm: 860
- Chimney length (B2), mm: 140
- Max boiler height (H)*, mm: 1520
- Boiler height (H1)*, mm: 1490
- Fuel tank height, mm. 1500
- Height of the supply pipe (H2)*, mm: 1490
- Height to the center of the chimney (H3)*, mm: 1290
- Chimney diameter (ØD), mm: Ø228
- Height of the return pipe (H4)*, mm: 290
- Loading width (K), mm: 438
- Loading depth (L), mm: 500
- Loading door width (N), mm: 450
- Loading door height (O), mm: 355
- Fuel capacity, Ltr/kg: 600/450
- Boiler weight, kg: 520
- Water volume in the boiler, Ltr: 148
- Efficiency coefficient, %: 91-92%
- Max working pressure, bar: 1.5
- Boiler water temp. (min./max.), ° C: 55/90
- Electric power supply, V/Hz: 230/50
- Chimney draft, Pa: 30
- Minimum chimney height, m: 10
- Min. chimney diameter, (Ømm): Ø280
- Min. chimney diameter, (cm×cm): 25×25
- Heated area, m²: 400-500
More information available for download in the provided files.
Manufacturer: KAMEN (Poland)
