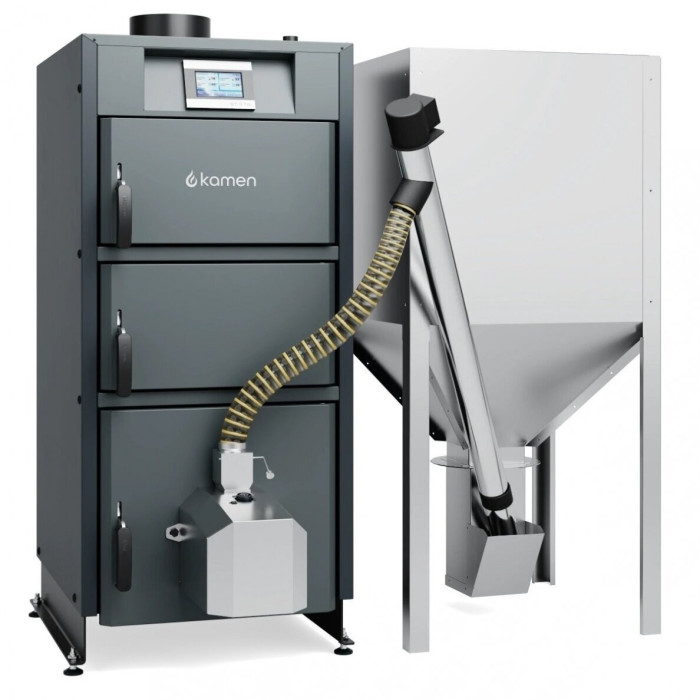

Granule Boiler KAMEN Pellet Compact 12 kW

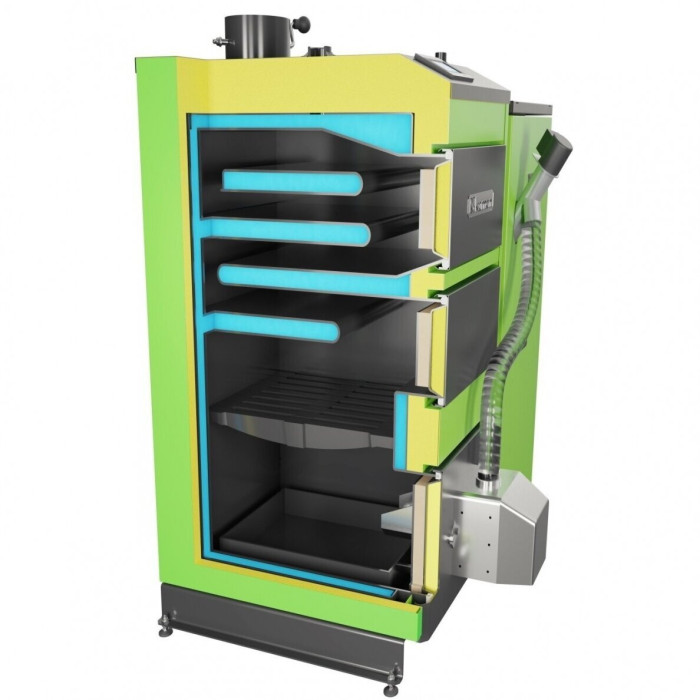

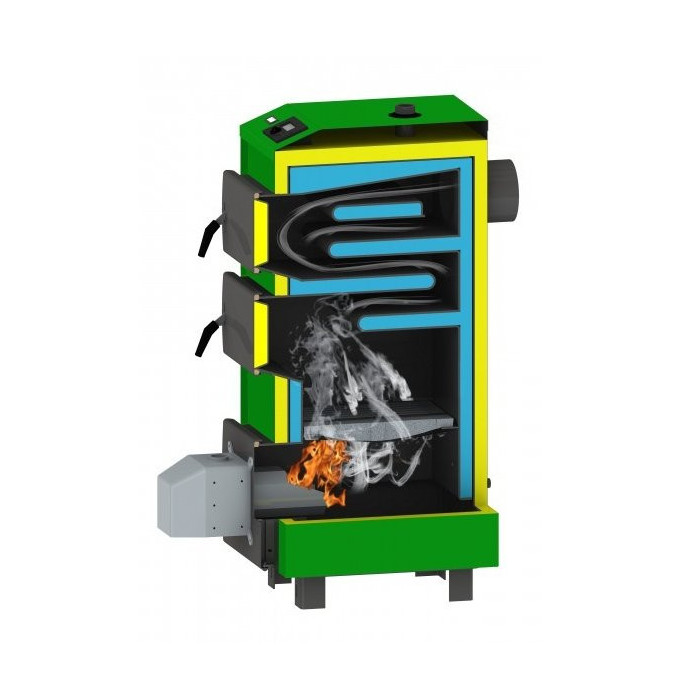

The "KAMEN PELLET COMPACT" granule boiler is a high-efficiency boiler that utilizes the latest technological methods in boiler manufacturing. Over 93% efficiency is achieved due to the installation of a horizontal flue gas reversal system, ceramic plates in the boiler heat exchanger, etc. It also features a stainless steel "Comfort" burner made with the latest technologies capable of burning wood pellets, grains, etc. The boiler body is made of 6 mm thick 265 GH boiler steel. All doors are made of steel and sealed with an eco-friendly sealant resistant to high temperatures. The upper doors are designed for boiler cleaning. To reduce heat loss, the boiler is insulated with mineral wool and covered with powder-coated steel sheet. In the "KAMEN PELLET COMPACT" boiler, the fuel tank can be on the right, left, or front of the boiler.
The high-quality "Comfort" burner allows the boiler to be used with minimal maintenance. The entire operation of the boiler is controlled by an electronic controller developed with the latest technologies. The "Comfort" burner features automatic ignition, and the boiler heats the premises according to the heat demand. When the premises are warmed up, the boiler automatically turns off, and if the temperature in the premises drops below the set temperature, the burner will automatically ignite (if a room thermostat is installed). The "Comfort" burner stands out with a wider range of functions in the electronic controller. Additionally, this burner includes a "Full clean" function - an additional automatic mechanical ash removal.
Technical specifications of the Kamen PELLET Compact 12kW boiler:
- Power - 12 kW;
- Fuel used: wood pellets, grains
- Efficiency coefficient - ~91-94%
- Heat exchanger area - 1.5 m²

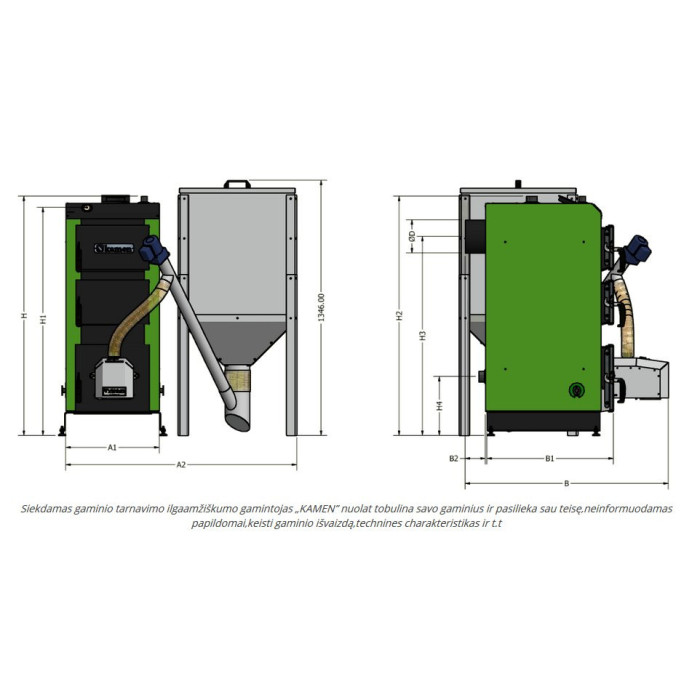

- Max boiler width (A2) - 1095 mm
- Boiler width (A1) - 495 mm
- Fuel tank width - 600 mm
- Max boiler depth (B) - 970 mm
- Boiler depth (B1) - 620 mm
- Max boiler height (H) - 1280 mm
- Height of the supply pipe (H2) - 1200 mm
- Flue diameter (ØD) - 159 mm
- Height of the return pipe (H4) - 160 mm
- Pellet bunker capacity - 300 l
- Boiler weight - 385 kg
- Water volume in the boiler - 63 l
- Max working pressure - 1.5 bar
- Boiler water temperature - 55/90 °C
- Recommended chimney height - 6 m
- Recommended chimney diameter - Ø 160 mm
- Required chimney draft - 20 Pa
Advantages:
- The boiler heat exchanger is guaranteed for up to 5 years.*
- Automatic ignition and extinguishing;
- Temperature modulation;
- Circulation pump control for the heating system;
- Circulation pump control for the boiler (in summer, hot water can be prepared only);
- Floor heating control;
- Servo drive control;
- Temperature regulation according to the room thermostat;
- Parameters remain set (after power outage);
- Easy boiler cleaning;
- Simple operation;
- Heat exchanger made of 6 mm boiler steel;
- Fuel tank can be on the left, right side, or front of the boiler.
- * additional conditions apply
More information in downloadable files.
Manufacturer: KAMEN (Poland)
