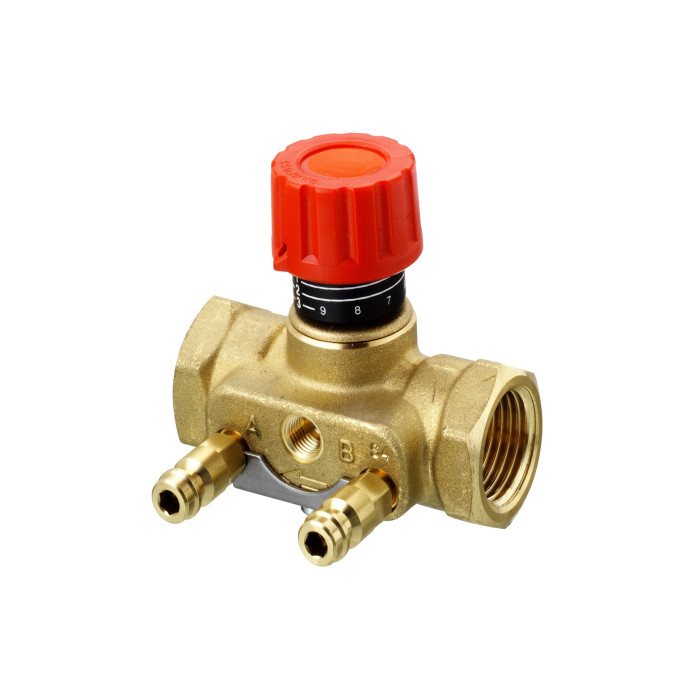

DANFOSS USA-I DN 25 automatic scale valve
SKU:
003L7643
73.71 €
/pcs.
vnt. 98.28 €
vnt. 98.28 €
60,92 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Automatic balancing valve DANFOSS ASV-I DN 25
ASV-I is a combination of a balancing and shut-off valve designed for installation in the supplied piping. Its flow limiting function allows setting the required maximum flow in the riser. ASV-I comes with measuring nozzles for flow measurement. It has a threaded connection for the impulse pipe from ASV-PV (Plus). When ASV-PV(Plus) is used together with ASV-I, the pressure/flow control maximally limits the flow passage to individual risers to ensure its distribution in the risers.
Technical specifications:
- Maximum pressure: 16 bar (PN 16)
- Test pressure: 25 bar
- Maximum pressure drop across the valve: 1.5 bar (150 kPa)*
- Temperature: -10 to 120 °C
- Material of parts in contact with water: valve body, shaft, cone, etc.: brass
- Flow limitation: yes
- Kvs: 4.0 m³/h
- Diameter: DN 25, thread - 1" internal
- Shut-off function
* It is important to know that the maximum allowable pressure drop across the valve of 1.5 bar (150 kPa) should not be exceeded under partial load.
https://assets.danfoss.com/documents/107275/AI004686470390lt-000901.pdf
Manufacturer: DANFOSS (Denmark)
Product images are for illustrative purposes only and are representative. Video links in the product description are for informational purposes only, and the information provided may differ from the actual product. The colors, markings, parameters, dimensions, sizes, functions, and/or any other characteristics of original products may appear differently than in reality due to their visual properties, so please refer to the product specifications listed in the product descriptions. If you have any questions, please contact us via email or phone listed in the contact section.
