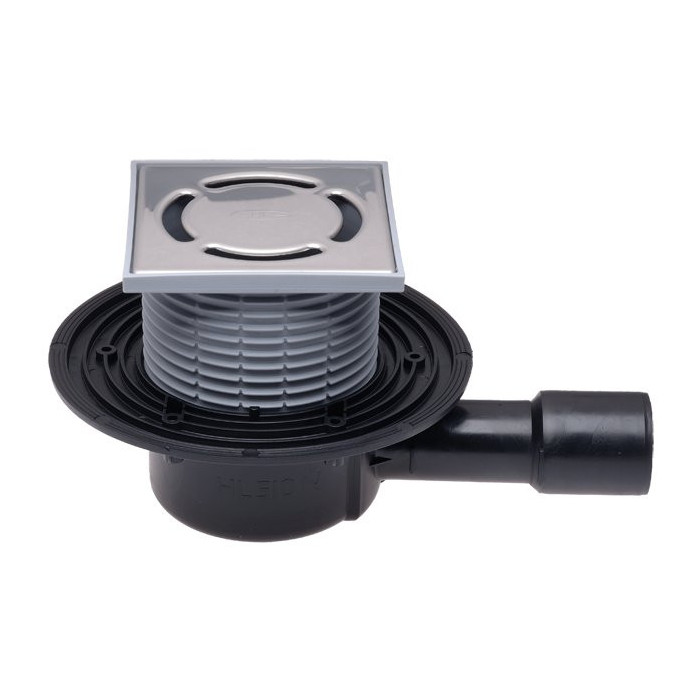

Horizontal trap HL 510 NPr with "dry" siphon Primus
Technical specifications:
- Flow rate: 0.5 l/s, with a 20 mm water column above the grate level 0.35 l/s, with a 10 mm water column above the grate level
- Material: polyethylene (PE), stainless steel V2A
- Connection: DN 40 / 50, horizontal outlet connected with a socket pipe or welded butt joint with PE pipe
- Insert element: HL 510NPR: 123 x 123 mm, HL510NPR-3000: 121 X 121 mm. Insert element with frame locking in the "Klick-Klack" system
- Visible parts: stainless steel frame 115 x 115 mm
- Hydro seal: height 50 mm, "Dry" siphon Primus (prevents sewer odors when the hydro seal dries out)
- Standard: EN 1253, norms: B2501, DIN 19535, 19560
- Load class: K3 - maximum 300 kg
- Purpose: for horizontal wastewater drainage, does not allow odors when there is no water in the siphon. Sound insulation tape HL6200 manufactured according to the standard B8115-2 requirements
- Additionally: mounting blind for the trap body and insert element
More information in the downloadable files.
Manufacturer: HL (Austria)
