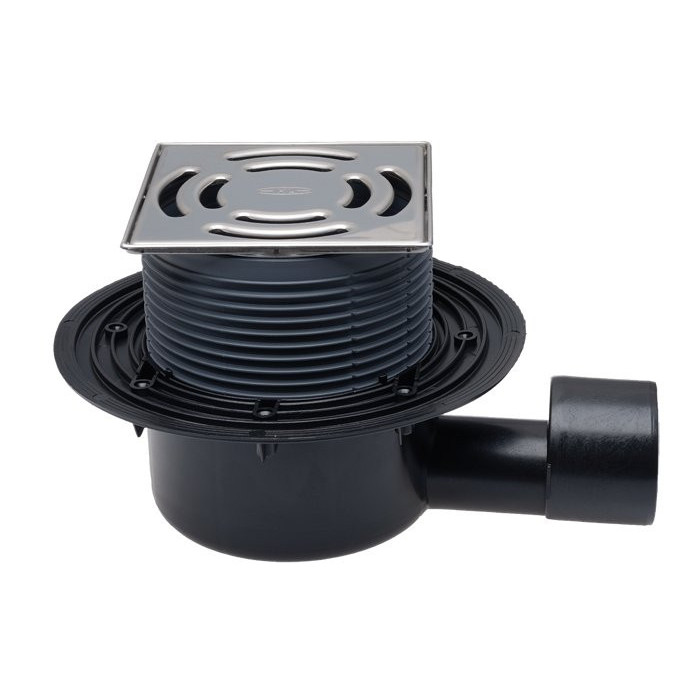

Horizontal trap with higher flow capacity HL 5100 Pr with "dry" siphon Primus
SKU:
5100PR
75.00 €
/pcs.
vnt.
vnt.
61,98 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Horizontal drain with higher flow capacity HL 5100 Pr with "dry" siphon Primus
Technical specifications:
- Flow rate: 0.8 l/s at 20 mm water column above the grate level 0.35 l/s at 10 mm water column above the grate level
- Material: polyethylene (PE), stainless steel V2A
- Connection: DN 50 / 75, horizontal outlet connected with a socket pipe or welded with a PE pipe
- Insert element: HL 510NPR: 145 x 145 mm, grate locking system "Klick-Klack" can be cut to height
- Visible parts: stainless steel V2A frame 138 x 138 mm
- Hydraulic seal: "Dry" siphon Primus (prevents sewer odors when the hydraulic seal dries out)
- Standard: EN 1253, norms: B2501, DIN 19535, 19560
- Load class: K3 - maximum 300 kg
- Purpose: higher flow drain for increased intensity shower, horizontal wastewater drainage, does not allow odors when there is no water in the siphon. Sound insulation tape HL6200 made according to the standard requirements B8115-2
- Additionally: installation blind for the drain body and insert element
More information in the downloadable files.
Manufacturer: HL (Austria)
