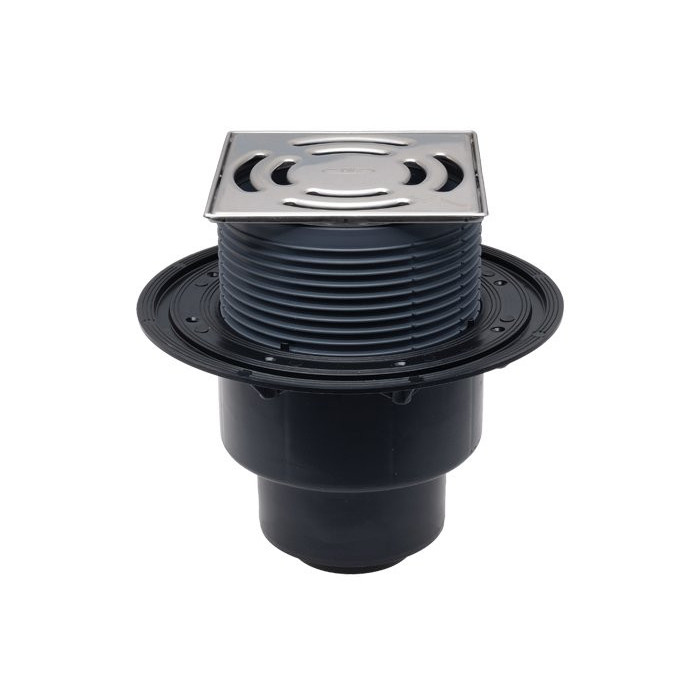

Vertical trap with higher flow capacity HL 3100 Pr with "dry" siphon primer
SKU:
3100PR
78.00 €
/pcs.
vnt.
vnt.
64,46 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Vertical trap with higher flow capacity HL 3100 Pr with "dry" siphon Primus
Technical specifications:
- Flow capacity: 0.8 l/s at 20 mm water column above the grate level 0.35 l/s at 10 mm water column above the grate level
- Material: polyethylene (PE), stainless steel V2A
- Connection: DN 50 / 75 / 110, vertical discharge connected with a socket pipe or welded to a PE pipe
- Insert element: HL 510NPR: 145 x 145 mm, grate locking system "Klick-Klack" can be trimmed to height
- Visible parts: stainless steel V2A frame 138 x 138 mm
- Hydro seal: "Dry" siphon Primus (prevents sewer odors when the hydro seal dries out)
- Standard: EN 1253, norms: B2501, DIN 19535, 19560
- Load class: K3 - maximum 300 kg
- Purpose: higher flow capacity trap for high-intensity shower, vertical wastewater drainage, does not allow odors when there is no water in the siphon. Sound insulation tape HL6200 made according to standard requirements B8115-2
- Additionally: installation blind for the trap body and insert element
More information in the downloadable files.
Manufacturer: HL (Austria)
