The TECEprofil universal toilet frame with Uni water tank is designed to connect universal toilets with bidet function.
SKU:
9300380
351.00 €
/pcs.
vnt. 468.35 €
vnt. 468.35 €
290,08 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |

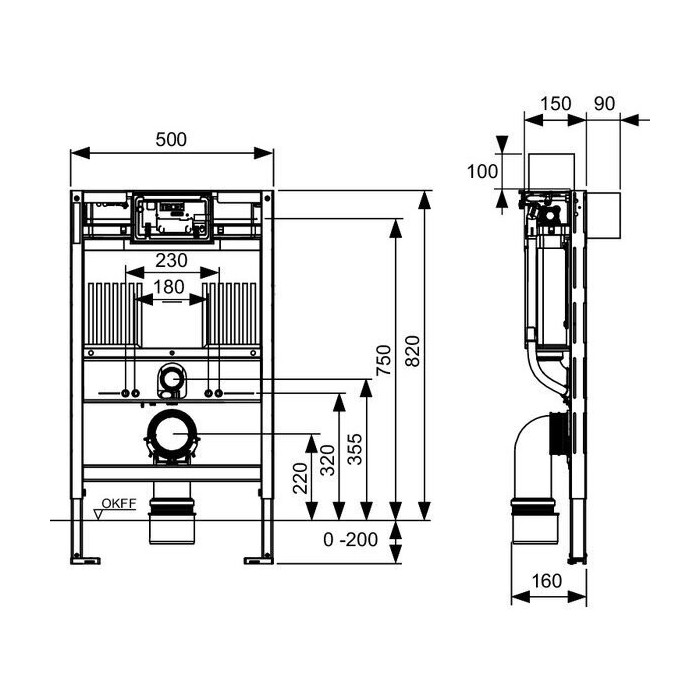

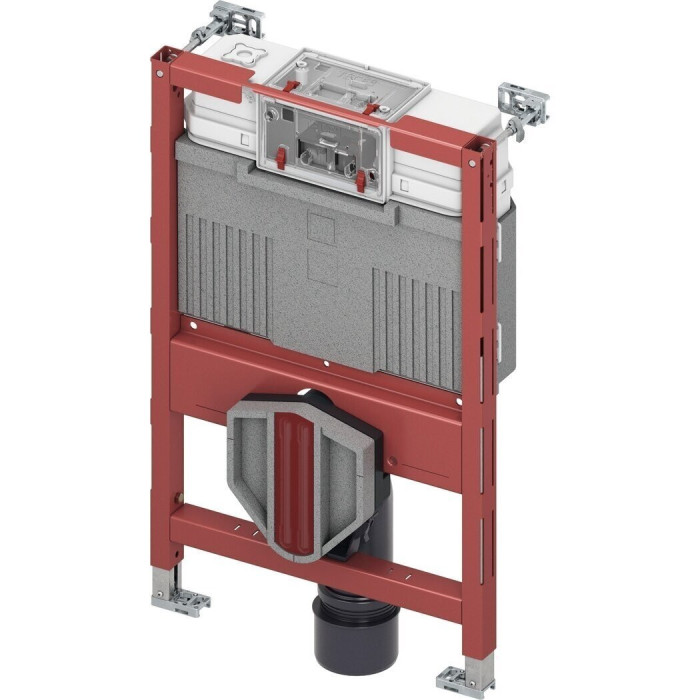

TECEprofil concealed universal toilet frame with Uni water tank, designed for connecting universal toilets with bidet function, installation height – 820 mm
Toilet module with "easy fit" water flush plate mounting system and
designed for connecting universal toilets with bidet function. Toilet module,
designed to be mounted to the TECEprofil wall or to a masonry wall.
Uni water tank, control from the front or from above:
- Sturdy tank made of impact-resistant plastic, tested according to EN 14055
- Fully assembled and sealed water tank.
- Water connection on the side of the tank with 1/2" external thread, quick connection fitting can also be used.
- 10-liter capacity water tank; preset standard flush volume of 6 liters
- possibility to set 4.5/7.5 or 9 liters
- of flush water volume at any time; designed for dual flush system
- reduced (3 liters) flush water volume. The remaining water can be reused
- for an additional flush.
- Insulation to prevent condensation formation
- Compatible with TECE flush plates and handles
- Depending on the flush plate, single or
- dual flush technology can be set
- "easy fit" water flush plate mounting system
- Quietly operating hydraulic filling valve, first sound level group, according to DIN 4109
Module frame composition:
- Powder-coated sturdy mounting frame
- Two fastening screws and nuts M 12
- Two TECEprofil adjustable depth brackets for module mounting
- Toilet waste elbow DN 90 with transition DN 90/100, made of PP plastic
- Using only the transition, horizontal connection is also possible
- Toilet connection set DN 90
- Box for various electrical connections
- Cover with protective caps
- Channel with large niche for various water systems (connection locations must be checked)
- Protective template for toilets with bidet function, including transformer cable
Additional order:
- Toilet flush plate (see flush plates)
- Frame for hygiene tablets (control from the front)
- Installation kit for universal toilets with bidet function 820 mm
Note:
- If a toilet ceramic with a smaller mounting surface is used (i.e., the distance from the center of the fastening screw to the edge of the lower mounting surface is not greater than 18 cm), e.g., V & B Memento, Subway 2.0, a set of metal supports 9041029 must be installed in the lower construction cavity.
Important:
If the flush plate is mounted at the front of the lowered concealed frame for the wall-hung toilet, it may be covered when opened. In such cases, if possible, it is recommended to mount the flush plate from above.
Warranty: 10 years
Manufacturer / brand: TECE (Germany)
