Built-in toilet frame with TECEprofil fastenings, 8 cm thick, 9300500
SKU:
9300500
225.00 €
/pcs.
vnt. 339.28 €
vnt. 339.28 €
185,95 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |

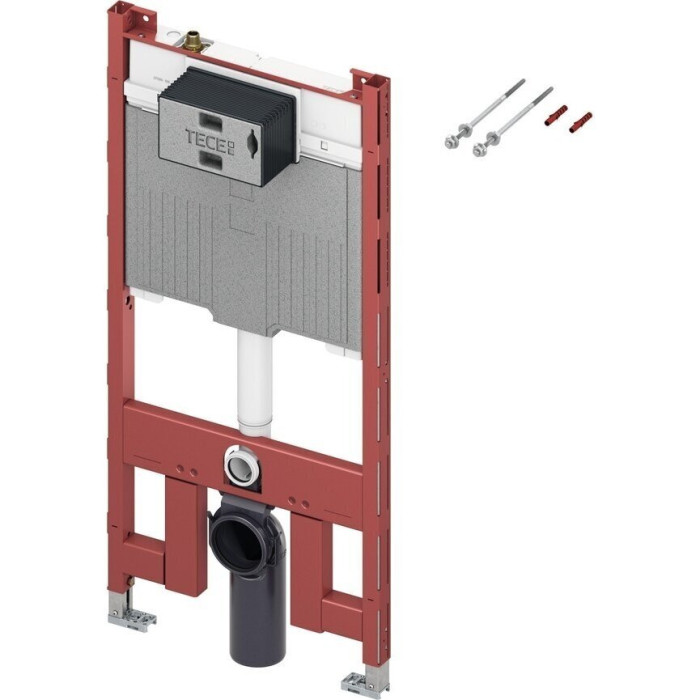

Concealed toilet frame with TECEprofil fittings, 8 cm thick, 9300500
Toilet module with "easy fit" water flushing plate mounting system.
Designed to be mounted to TECEprofil profile pipes, installed in metal or
wooden frame walls, against a wall or in a corner; also suitable for standalone installation.
Octa II 8 cm water tank, front control.
- Sturdy tank made of impact-resistant plastic, tested according to EN 14055
- Fully assembled and sealed water tank.
- Water connection at the top of the tank with 1/2" external thread, also suitable for quick connection fittings
- 7-liter capacity tank; pre-set standard flush volume of 6 liters; option to set 4.5 liters flush volume at any time; small flush volume for dual flush system (3 liters), adjustable to 4/2 liters flush volume.
- Insulation to prevent condensation
- Compatible with TECE flush plates and handles
- Depending on the flush plate, single or dual flush technology can be set
- "easy fit" water flushing plate mounting system
- Service access tunnel, can be reduced without tools
- Quiet operating hydraulic fill valve, first sound level group,
- according to DIN 4109

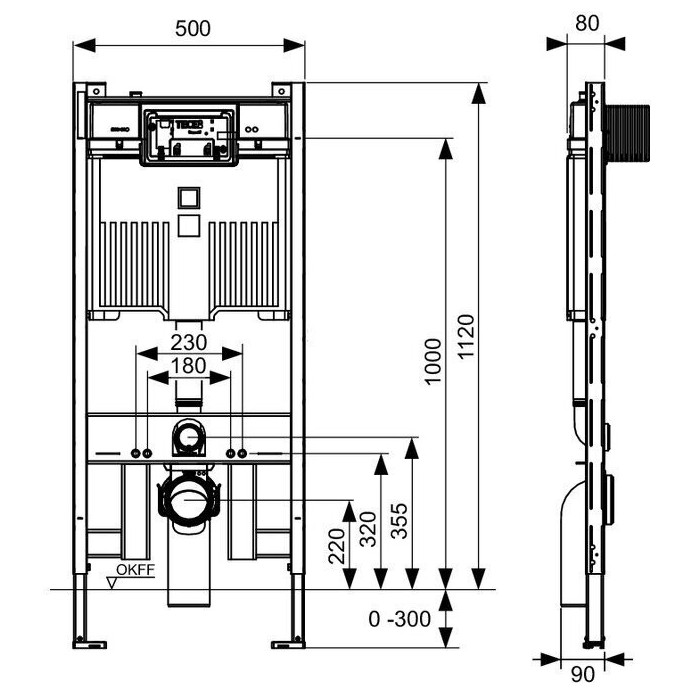

Module frame composition:
- Powder-coated sturdy mounting frame
- Two M 12 mounting bolts and nuts
- WC waste elbow DN 90/90 made of PE-HD plastic, including
- protective cap
- Toilet connection kit DN 90
- Suitable for floor thickness up to 30 cm
- Distance between ceramic mounting bolts 180 or 230 mm
- Mounting materials for wall installation
Additional items available for order:
- Toilet flush plate (see flush plates)
- Mounting accessories for corner or wooden frame wall installation
- (not necessary)
- TECEone installation kit for standard concealed frames
- (not necessary)
Warranty: 10 years
Manufacturer / brand: TECE (Germany)
