TECEprofil universal concealed toilet frame 1120 mm, 9300302
SKU:
9300302
185.00 €
/pcs.
vnt. 309.14 €
vnt. 309.14 €
152,89 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Toilet module with "easy fit" water flushing plate mounting system.
Designed to be attached to TECEprofil profile pipes, to be installed in metal or wooden frame walls, against a wall or in a corner; also suitable for separate installation.
Uni water tank, front control:
- Sturdy tank made of impact-resistant plastic, tested according to EN 14055
- Fully assembled and sealed water tank.
- Water connection on the side of the tank with 1/2" external thread, quick connection fitting can also be used.
- 10-liter capacity water tank; preset standard of 6 liters
- flushing volume; option to set 4.5/7.5 or 9 liters
- of flushing water at any time; designed for dual flush system
- reduced (3 liters) flushing water volume. The remaining water can be reused
- for an additional flush.
- Insulation to prevent condensation formation
- Compatible with TECE flushing plates and handles
- Depending on the flushing plate, single or
- dual flush technology can be set
- "easy fit" water flushing plate mounting system
- Quietly operating hydraulic filling valve, first sound level group,
- according to DIN 4109
Module frame composition:
- Powder-coated sturdy mounting frame
- Two mounting screws and nuts M 12
- Toilet waste elbow DN 90 with transition DN 90/100, made of
- PP plastic
- Using only the transition, horizontal connection is possible
- Toilet connection set DN 90
- Ceramic toilet can be installed higher (seat height – 48 cm);
- complies with German standard DIN 18040 (DIN 18040: Rooms with level
- floors. Part 1: Public buildings and workplaces).
Additional order:
- Toilet water flushing plate (see flushing plates)

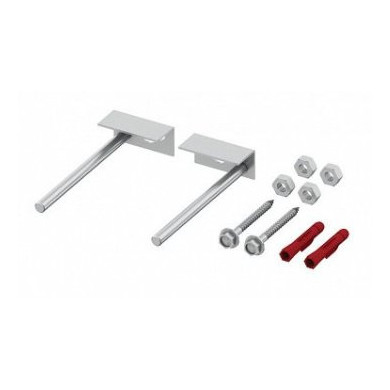

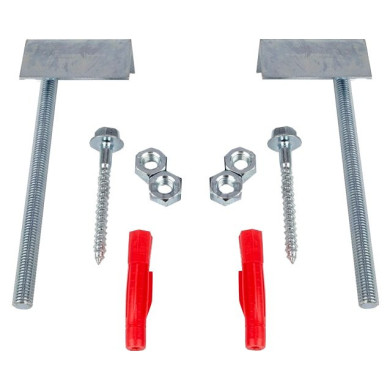

- Mounting accessories for attaching to the wall, in a corner or in wooden
- frame walls
- Frame for hygiene tablets (not necessary)
- TECEone installation set for standard flush-mounted frames
- (not necessary)
Note:
If a toilet ceramic with a smaller mounting surface is used (i.e., the distance from the center of the mounting screw to the edge of the lower mounting surface is no more than 18 cm), e.g., V & B Memento, Subway 2.0, a set of metal supports 9041029 must be installed in the lower construction cavity.
Warranty: 10 years
Manufacturer / brand: TECE (Germany)
