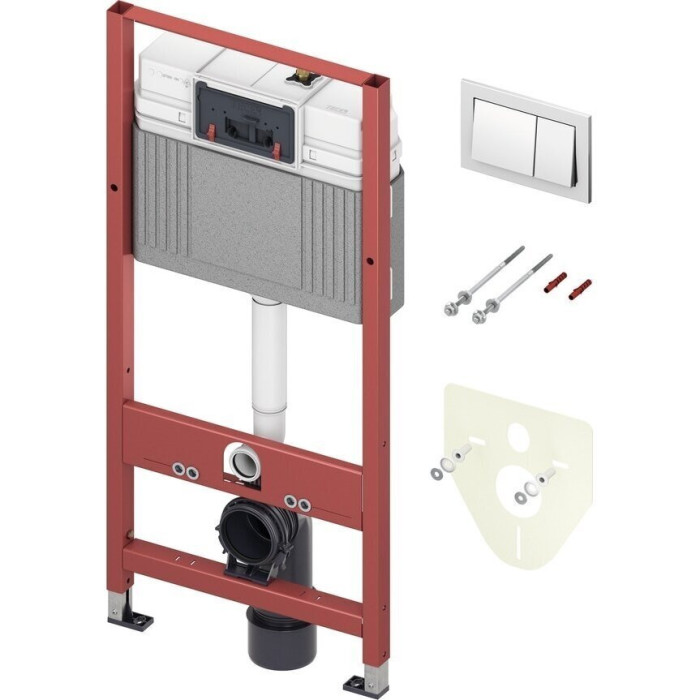

TECEbase (4 in 1) universal concealed toilet (WC) frame set, Base chrome button
SKU:
9400406
192.00 €
/pcs.
vnt. 294.64 €
vnt. 294.64 €
158,68 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Concealed universal toilet (WC) frame set TECEprofil Base (4 in 1)
Toilet module designed for installation separately against a solid wall and in metal or
wooden frame walls.
Base water tank, front control:
- Sturdy tank made of impact-resistant plastic, tested according to EN 14055
- Tank fully assembled
- Water connection at the top of the tank with 1/2" external thread, suitable for quick connection fittings
- Three-way closing valve, with water release function and built-in filling valve
- 10-liter capacity water tank; pre-set standard of 6 liters
- water flush volume; option to set 4.5/7.5 or 9 liters
- flush water volume; designed for dual flush system
- reduced (3 liters) flush water volume. The remaining water can be reused
- for an additional flush.
- Insulation to prevent condensation formation
- Quiet operating hydraulic filling valve, first sound level group, according to DIN 4109
Module frame composition:
- Powder-coated sturdy mounting frame
- Two fastening screws and nuts M 12Four nuts for ceramic fastening, distance between fastenings 180 or 230 mm
- Mounting kit for wall installation
- Toilet waste elbow DN 90 with transition DN 90/100, made of PP plastic
- Using only the transition, horizontal connection is possible
- Toilet connection kit DN 90, including protective plugs

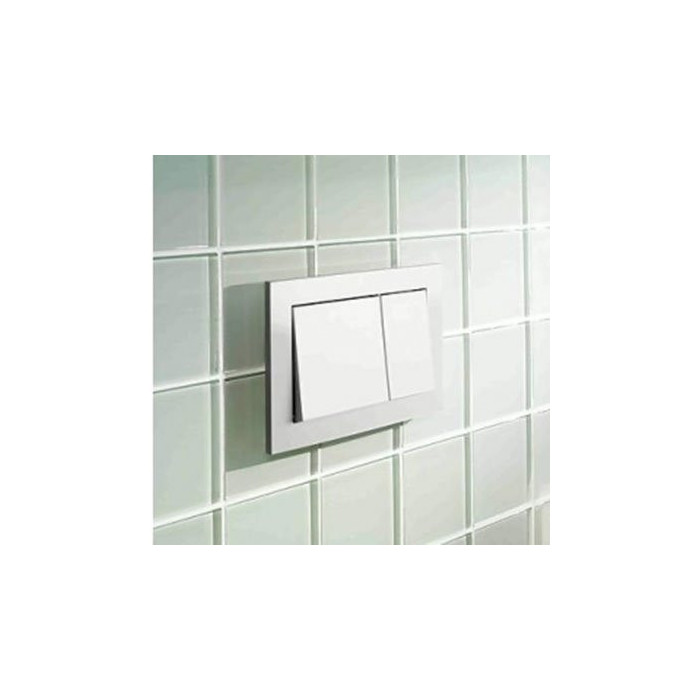

- TECEbase chrome-plated shiny dual flush system plate
- Sound insulation kit
Additional order:
- TECEone installation kit for standard concealed frames (not required)
- Protective template/electrical connection kit for toilets with bidet function
Note:
- If using toilet ceramics with a smaller fastening surface (i.e., the distance from the center of the fastening screw to the edge of the lower fastening surface is no more than 18 cm), e.g., V & B Memento, Subway 2.0, it is necessary to install a set of metal supports 041029 in the lower construction cavity.
Warranty: 10 years
Manufacturer: TECE (Germany)
