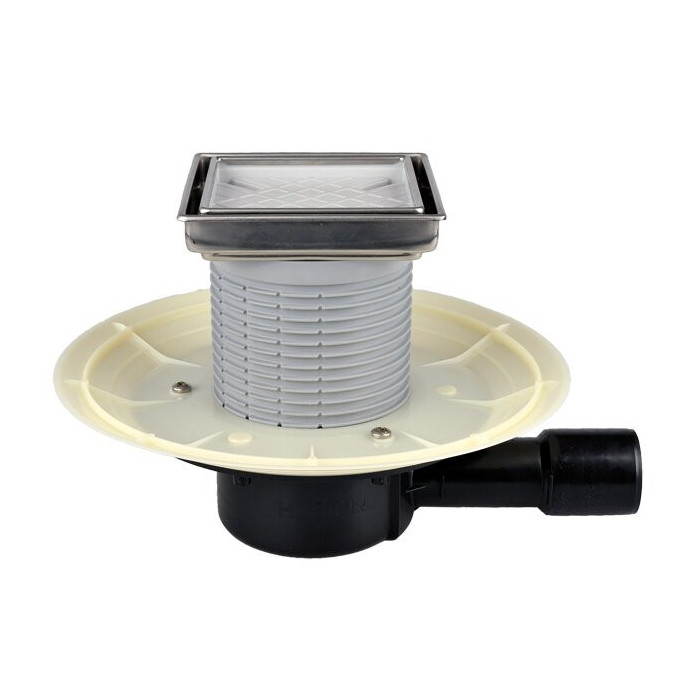

Horizontal trap for adhesive tile HL with "dry" siphon Primus, Klick-Klack grate, 510NPr-3020
SKU:
510NPR-3020
107.00 €
/pcs.
vnt. 135.00 €
vnt. 135.00 €
88,43 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Horizontal trap for tile installation HL with "dry" siphon Primus, Klick-Klack grates, 510NPr-3020

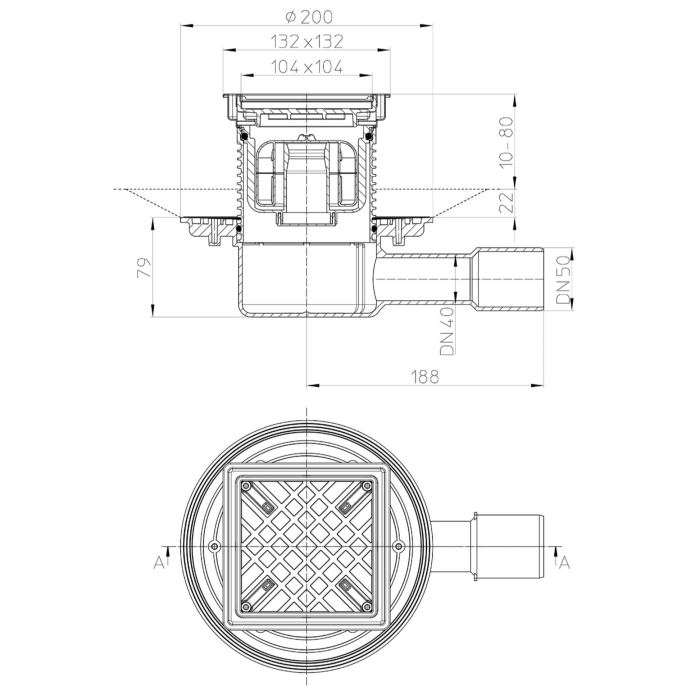

Technical specifications:
- Flow rate HL510N-3020: 0.50 l/s, with a 20 mm water column above the grate level; 0.45 l/s, with a 10 mm water column above the grate level.
- HL510NPr-3020: 0.45 l/s, with a 20 mm water column above the grate level; 0.40 l/s, with a 10 mm water column above the grate level.
- Material polypropylene (PP), polyethylene (PE), acrylonitrile-butadiene-styrene (ABS), stainless steel V4A.
- Connection DN40/50, horizontal discharge, connects with a socket pipe or butt welding with a PE pipe.
- Installed element with frame 132 x 132 mm.
- Stainless steel V4A, adjustable according to installation height 10-80 mm.
- Inlay for ceramic tiles 104x104x12 mm and stainless steel V4A frame
- Hydro seal HL10N-3020: height 50 mm
- HL510NPr-3020: PRIMUS (Prevents sewage odors when the hydro seal is dry)
- Standard: EN 1253, Önorm B2501.
- Load class: K3—max. 300 kg.
- Recommended: Barrier-free showers, in water wellness complexes.
- Sound insulation tape HL6200 complies.
- For indoor use
- Installation instructions
More information available in downloadable files.
Manufacturer: HL (Austria)
