Stainless steel trap sets "dry" for adhesive tile "plate" TECEdrainpoint S, 150 x 150 mm, vertical
SKU:
3601600 + 3660011 + 3695005
109.00 €
/pcs.
vnt. 144.84 €
vnt. 144.84 €
90,08 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |

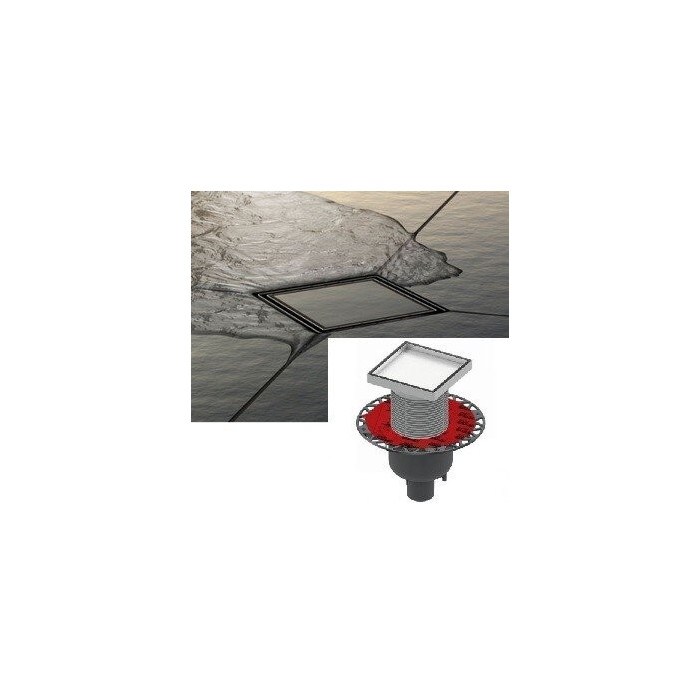

Stainless steel drain set "dry" for tile installation "plate" TECEdrainpoint S, 150 x 150 mm, vertical

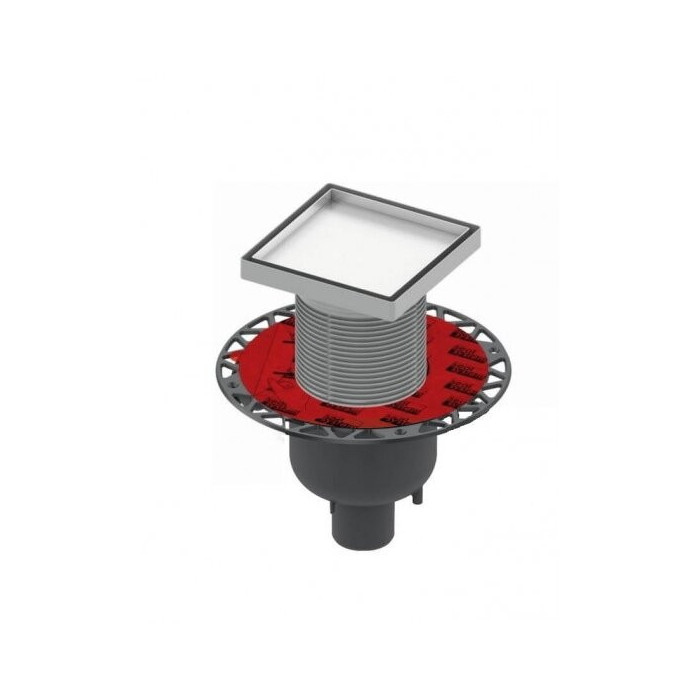

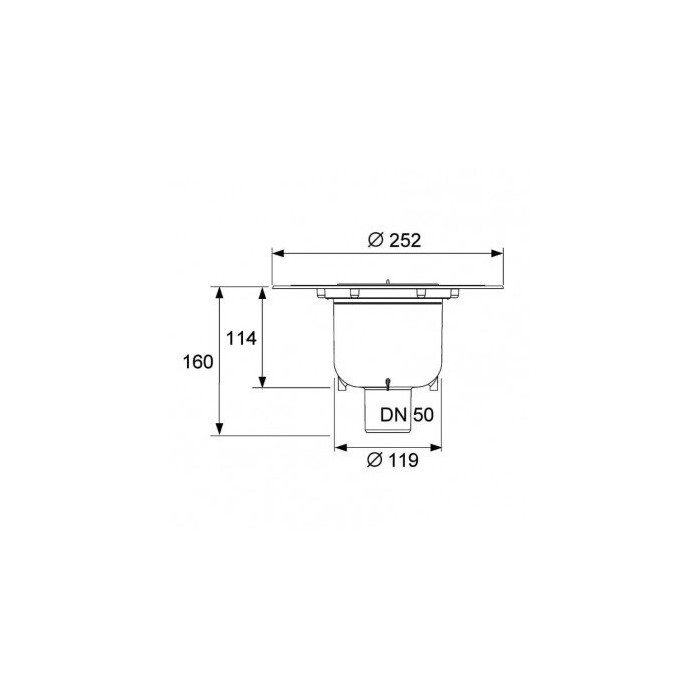

"Dry" type floor drain set TECEdrainpoint S 112, vertical, DN 50 for tile installation
Contents:
- Adjustable drain body to the sides DN 50, vertical, plastic (PP)
- With universal flange for waterproofing
- With ball elbow
- With additional connection DN 40 and cap
- With removable membrane odor trap (already included in the set)
- Flow rate from 1.36 to 1.64 l/s
- Minimum water height: 50 mm
- Top part for tile installation
- TECEdrainpoint decorative grate made of stainless steel (1.4301 (304), dimensions: 100 x 100 mm, polished surface, load class K3 (up to 300 kg)
- Purpose: in shower cabins, bathrooms, boiler rooms, effectively protects against foreign odors

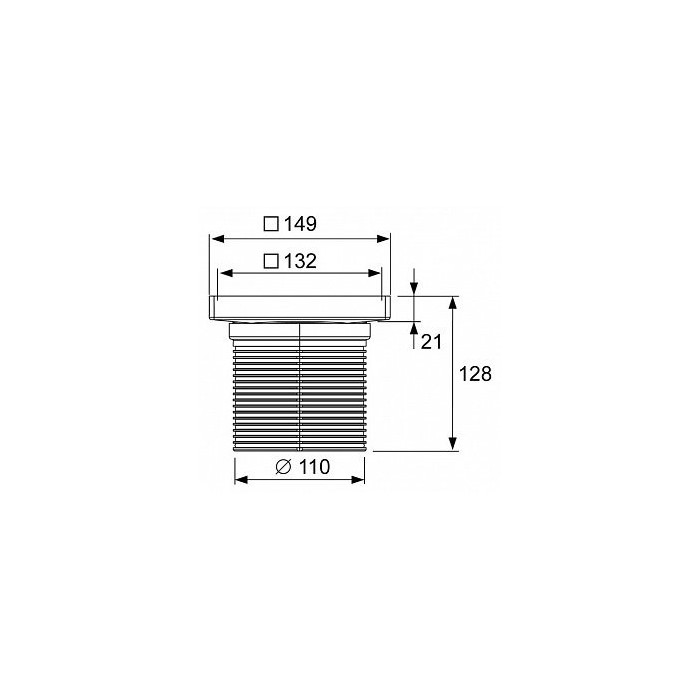

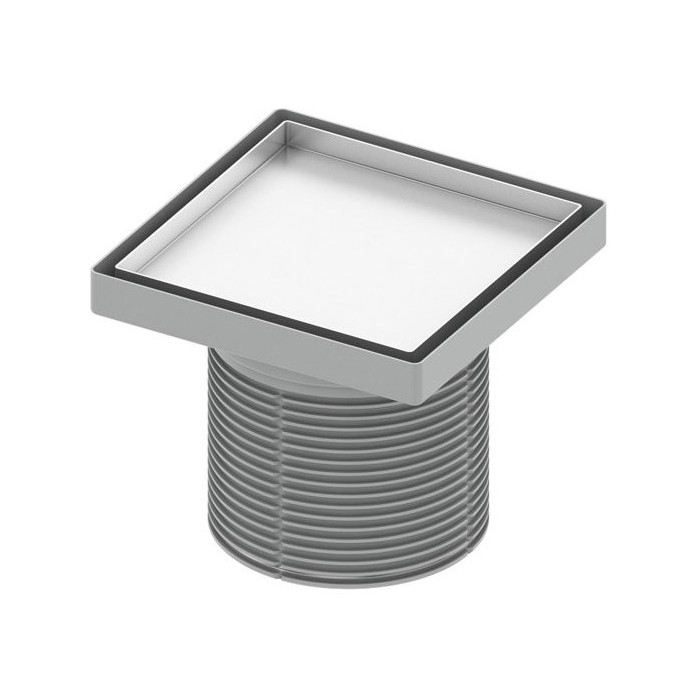

Stainless steel grate for tile installation "plate" TECEdrainpoint S, 150 x 150 mm
Technical specifications:
- Outer diameter = 110 mm;
- Sealing ring
- Height adjustment = from 23 to 118 mm
- Base made of plastic (ABS)
- Frame made of stainless steel 1.4301 (304)
- Grate made of stainless steel 1.4301 (304), dimensions 142 x 142 mm, polished surface, load class K3 (up to 300 kg)

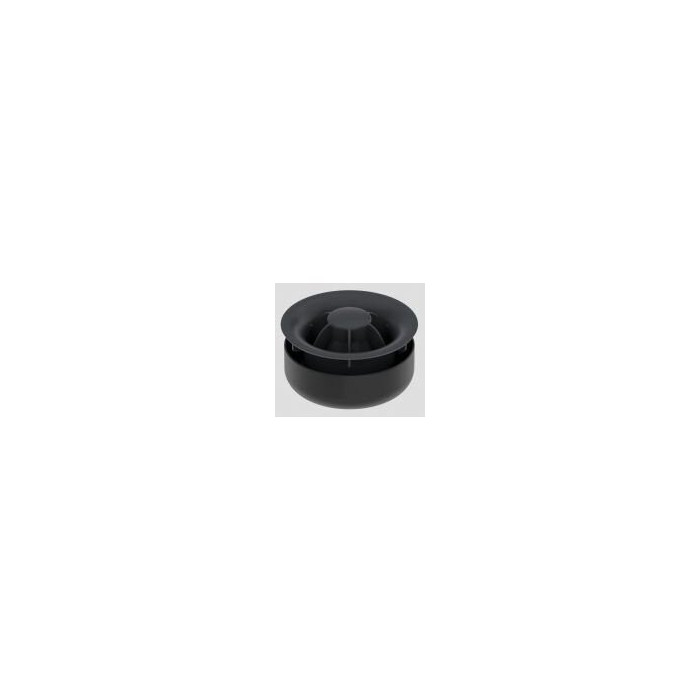

Membrane odor trap TECEdrainpoint S, for DN 50 and DN 70 drains
Plastic (PP) odor trap with internal sealing membrane.
Protects against evaporation, odors, and pests
- Suitable for all horizontal and vertical DN 50 and DN 70 drains
- Two-level protection against unpleasant odors - water and sealing membrane.
Ordered separately, depending on the sealing method:
- "Seal System" sealing gasket - tested and certified waterproofing
- Compression ring and sealing gasket for flange connections
Includes protective cap, protective film, and installation instructions.
Warranty: 2 years
Manufacturer: TECE (Germany)
Product images are for illustrative purposes only and are representative. Video links in the product description are for informational purposes only, and the information provided may differ from the actual product. The colors, inscriptions, parameters, dimensions, sizes, functions, and/or any other properties of original products may appear differently than in reality due to their visual characteristics, so please refer to the product specifications listed in the product descriptions. If you have any questions, please contact us via email or phone listed in the contact section.
3601600 + 3660011 + 3695005
