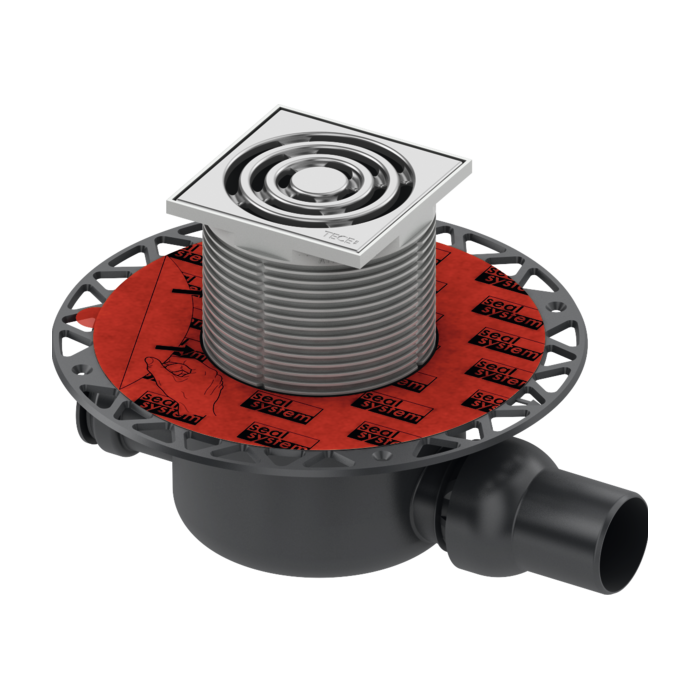

Horizontal trap TECEdrainpoint S 112 with "dry" siphon, with standard siphon, with "sealing system" universal flange
SKU:
3601202
61.26 €
/pcs.
vnt. 81.69 €
vnt. 81.69 €
50,63 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Horizontal trap TECEdrainpoint S 112 with "dry" siphon, with standard siphon, with "seal system" universal flange
"Dry" type floor trap set TECEdrainpoint S 112, horizontal, with standard siphon, DN 50 with stainless steel grate frame
Contents:
- Trap body adjustable sideways DN 50, horizontal, with standard plastic siphon (PP)
- With universal flange for waterproofing
- With a ball elbow
- With additional connection DN 40 and cap
- With removable membrane odor barrier (already included in the set)
- Flow rate from 0.97 to 1.17 l/s
- Lower water height: 50 mm

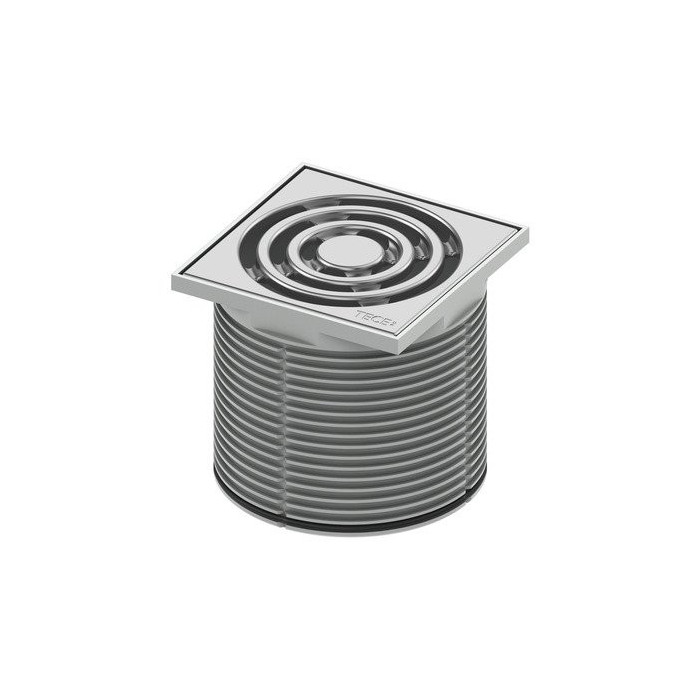

- Top part with stainless steel grate frame (made of 1.4301 (304)) and sealing ring
- TECEdrainpoint decorative grate made of stainless steel (1.4301 (304), dimensions: 100 x 100 mm, polished surface, load class K3 (up to 300 kg)
- Purpose: in shower cabins, bathrooms, boiler rooms, effectively protects against foreign odors
Supplied with a protective cap, protective film, and installation instructions.
Warranty: 10 years
Manufacturer: TECE (Germany)
