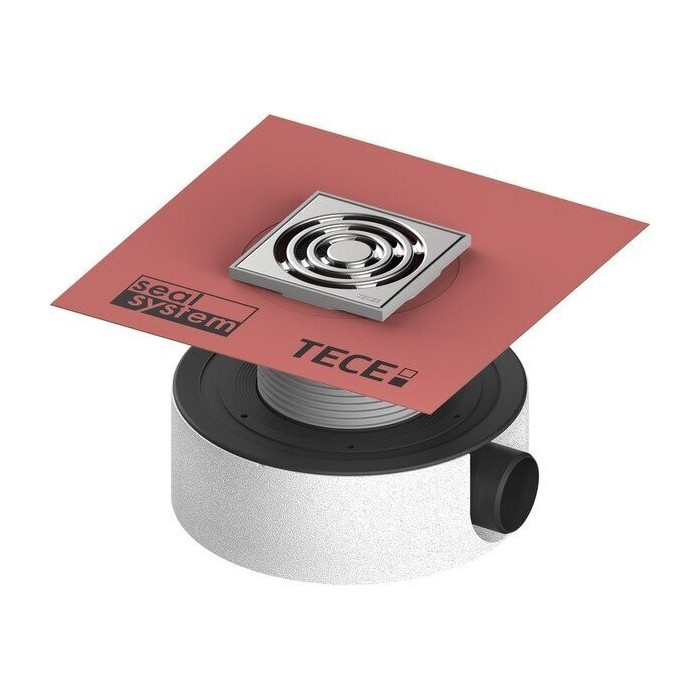

Horizontal trap TECEdrainpoint S 114 with a "dry" siphon, especially flat with factory-applied Seal System waterproofing.
SKU:
3601104
76.00 €
/pcs.
vnt. 101.17 €
vnt. 101.17 €
62,81 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Horizontal drain TECEdrainpoint S 114 with a "dry" siphon, especially flat with a factory-installed Seal System waterproofing gasket
TECEdrainpoint S 114 floor drain set, horizontal, especially flat,
DN 50, with sound-insulating shell, upper part of the drain with factory-installed
Seal System waterproofing gasket.
Included:
-
Plastic drain body DN 50, horizontal, especially flat (PP), with adhesive flange for waterproofing materials made of plastic or polymer
-
Flow rate from 0.61 to 1.12 l/s
-
Lower water height = 30 mm
-
With removable membrane odor trap
-
Sound-insulating shell designed for installation in concrete ceilings
-
Upper part of the drain with plastic grate frame (made of ABS) and factory-installed Seal System waterproofing gasket, complies with DIN18534
-
TECEdrainpoint S stainless steel decorative grates, material 1.4301 (304), dimensions 100 x 100 mm, polished surface, load class K3 (up to 300 kg)
-
Protective shell made of EPS polystyrene, with a top that can be shaved down to level the concrete layer
-
Floor covering thickness from 8 to 25 mm (including adhesive layer)
Additional order:
-
Compression ring set and cut sealing gasket for flange connections
Warranty: 10 years
Manufacturer: TECE (Germany)
