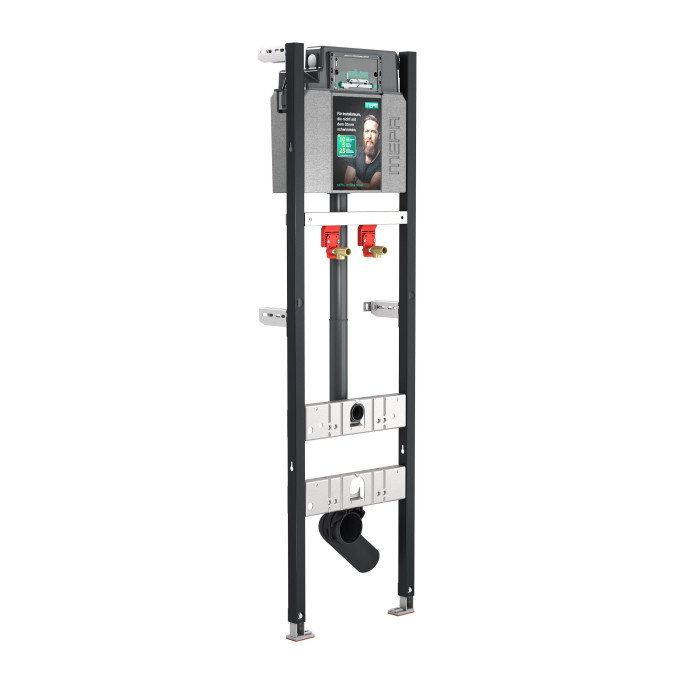

High wall-hung toilet frame MEPA nextVIT 2 in 1
SKU:
549004
550.01 €
/pcs.
vnt.
vnt.
454,55 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
High wall-mounted toilet frame MEPA nextVIT 2 in 1
1. Optional flushing system
Universally designed flushing technology
Optimal, water-saving, dual flush technology or start/stop or single flush technology
2. Separately adjustable flushing levels (large/small volume)
Factory set to 6 liters or 3 liters
Small and large flush levels are separately adjustable
Flushing level easily adjustable via the discharge valve: large volume from 5 to 7 liters, and small volume from 3 to 4.5 liters
3. Water discharge reduction can be changed many times
Water discharge throttle at the bottom of the valve allows for significant reduction of water discharge volume, approximately from 2.2 l/s (minimum) to 1.8 l/s (maximum)
Can prevent ceramic cracking
4. Uniform internal components
Simple and efficient supply of spare parts due to uniform internal components
Regardless of whether the system operates from the top, front, or has 2 flushing levels or a start/stop system
5. Ready for connection to toilet and bidet
Pre-drilled for water connection
Channel for water supply pipe under the water condensation cover
6. Easy to install
Factory-prepared filling valve and reinforced hose for connection
Thoughtful combination consisting of a protective flush plate and a sturdy lever mechanism, allowing for quick start-up
7. Easy maintenance
All relevant parts easily accessible
Lever mechanism integrated into the transparent water spray cover
Reinforced hose, gasket, and filling valve can be replaced without tools and separately from each other
8. Universally mountable flush plates
Wide range of attractive flush plates
Various material options tailored to design: plastic, precious metals, trendy glass, or vandal-proof
9. Unobstructed electronics
Special "Sanicontrol" flooding protection according to DIN 18040 requirements
Radio-controlled automatic toilet flushing device according to "Sanicontrol" 1065
10. Hygienic freshness with every press
Tank A31 and B31 can be upgraded with a discharge roller for toilet tablets
Cleaning cubes ensure hygienic cleanliness and freshness in the toilet
Easy and professional installation
11. Sound insulation
Meets DIN 4109 and 4100 standard high sound protection requirements
Sound protection quality for MEPA A31/B31 tanks is certified by the Fraunhofer Institute for Building Physics
Low-noise household appliances are an essential comfort feature
12. Certified according to DIN EN 14055
CE marking according to DIN EN 14055
13. 10-year warranty
Guaranteed reliability and functionality
Warranty for filling and discharge valve
Continuous quality control, warranty service
INSTALLATION OPTIONS FOR THE WALL FRAME:
- MEPA profile wall-mounted system
- Into wooden frame wall
- Into C profiles or UA profiles wall-mounted system
- To masonry wall
- To solid wall or metal frame wall
- Suitable for walls using plaster or plasterboard
COMPOSITION OF THE WALL FRAME:
- Extremely sturdy frame construction 549004
- Flushing tank (10 liters) made of impact-resistant PE-HD plastic
- Flushing tank, fully equipped
- Water condensation protective insulation
- Two adjustable supports for floor mounting (h = 0 - 240 mm)
- PP wall/toilet connection elbow DN 90 / 90
- PP wall/WC adapter DN 90 / 110 for connection elbow
- PE wall/toilet connection set DN 90
- Distance between ceramic mounting bolts 180 mm or 230 mm
- Wall/toilet mounting set M 12
- WC connection fittings, including protective plugs
- Note: the wall frame is already equipped with a mounting kit for wall reinforcement and distance mounting (100 - 250 mm) 541023

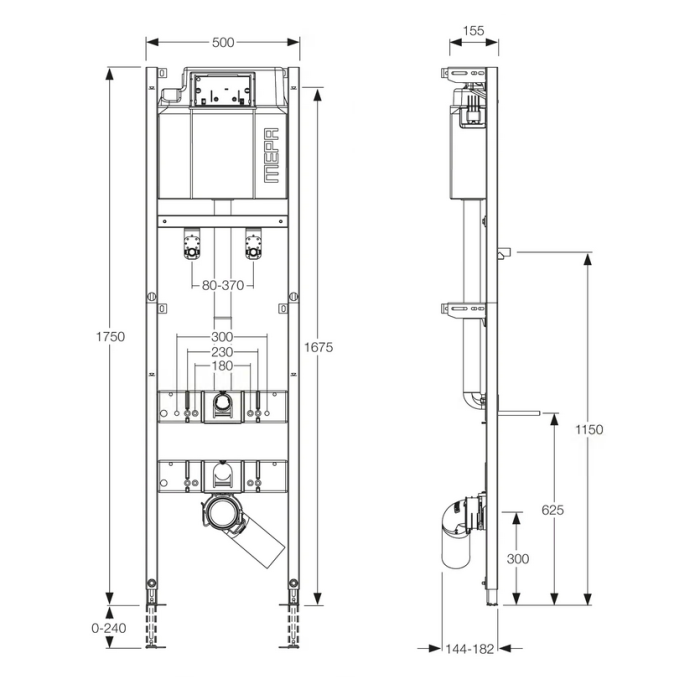

TECHNICAL SPECIFICATIONS:
- Dimensions: 1750 x 500 x 182 mm
- Flushing volume 6/3 l (factory setting), flushing volume separately adjustable: large flushing volume 5 - 7 l, continuously adjustable, small flushing volume 3 - 4.5 l, continuously adjustable, maximum flushing volume 7.5 l, with factory setting allowing immediate flushing,
- Protection against water splashing. Integrated water flow control valve for gradual reduction of water flow from approximately 2.2 l/s to approximately 1.8 l/s.
- Water connection 1/2" external thread. Mounted angle valve, optional water connection from the side or from the back left side of the wall frame
- Mechanical flushing, control from the front
- Pre-assembled mounting frame for wall-hung toilet
- Self-supporting
- Minimum distance to the wall - 144 mm, maximum - 182 mm
- Frame made of sturdy and corrosion-resistant galvanized profile - 38 / 38 / 2 mm
- Central and metric markings for precise alignment of the axis center and installation height
- Support plates can be rotated, depth suitable for UW-profile 50/75 and MEPA extension profile installation
- Floor supports can be rotated 90 degrees. This ensures excellent conditions for comfortable working position and quick assembly, even in tight spaces. Adjustable floor supports can be extended up to 240 mm. With an additional accessory, a height of up to 480 mm can be achieved
- Factory pre-assembled construction
- Main fixings suitable for various types of installation
- Fixings S help to quickly and reliably attach to plaster or plasterboard
- Compatible with electronic flushing systems: 1061, 1062, 1065 and Zero Lumo
MEPA is a company that manufactures high-quality wall-mounted frames, shower channels, and other bathroom and shower room equipment.
Founded in 1963 by Leo Menden and Wili Pauli, their innovative ideas were responsible for transforming the company from a workshop to modern industrial production.
"The foundation of the company's development is the idea" - this principle still applies after more than 50 years and ensures healthy growth.
MEPA stands for innovative products, reliability, quality, and proximity to customers.
Products have been developed and manufactured in Germany for over 50 years, and MEPA is one of the leading companies in its field.
10-year warranty
Next-generation tanks meet high sound insulation requirements, perfectly suited for reliably functioning, durable discharge valve technology, and feature high-quality and easy-to-install equipment. That’s why MEPA offers a 10-year warranty for the "Sanicontrol A31" and "B31" tanks on the frame construction.
It has always been this way: if parts fail within 10 years of manufacture due to production or design defects, we will provide you with a new one without any hassle and, of course, free of charge. You don’t even have to pay for shipping.
5-year warranty on-site
This is new: during the first 5 years from purchase, our MEPA service specialists throughout Lithuania will replace any defective component in your home. You don’t need to make any effort - of course, the service is free.
25 years of parts supply
This provides long-term security: by using MEPA wall-mounted frames, you can be sure that you will still receive the necessary spare parts for up to 25 years after production.
Manufacturer: MEPA (Germany)
