Built-in toilet frame with TECEprofil fittings and Octa II water tank, 8 cm, installation height – 1120 mm
SKU:
9300502
225.00 €
/pcs.
vnt. 360.58 €
vnt. 360.58 €
185,95 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |

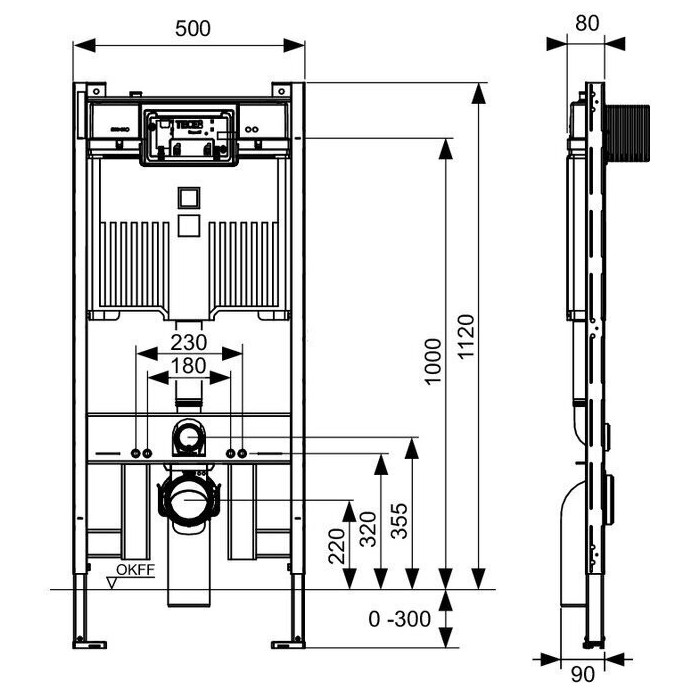

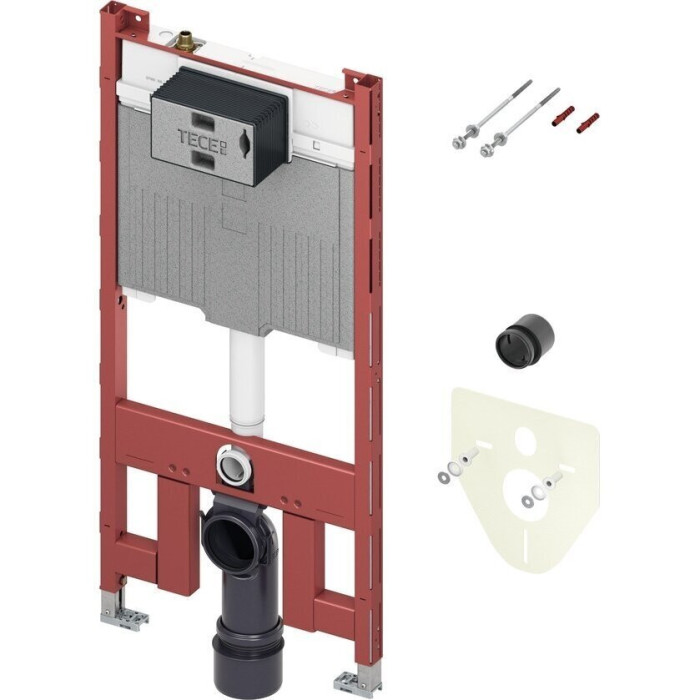

Concealed toilet frame with TECEprofil fittings and Octa II water tank, 8 cm, installation height – 1120 mm
Toilet module with "easy fit" flush plate mounting system.
Designed for mounting to TECEprofil profile pipes, to be installed in metal or
wooden frame walls, against a wall or in a corner; also suitable for standalone installation.
Octa II 8 cm water tank, front control.
- Durable tank made of impact-resistant plastic, tested according to EN 14055
- Fully assembled and sealed water tank.
- Water connection at the top of the tank with 1/2" external thread, suitable for quick connection fittings; 7-liter capacity tank; pre-set standard flush volume of 6 liters; option to set 4.5 liters of flush water at any time; small (3 liters) flush volume for dual flush system, adjustable to 4/2 liters of flush water.
- Insulation to prevent condensation
- Compatible with TECE flush plates and handles
- Depending on the flush plate, single or dual flush technology can be set
- Service access installation tunnel, can be reduced without tools
- Quiet operating hydraulic fill valve, first sound level group, according to DIN 4109
Module frame composition:
- Powder-coated sturdy mounting frame
- Two M 12 mounting bolts and nuts
- Toilet waste elbow DN 90 with transition DN 90/100, made of PP plastic, including protective plugs
- Can be connected horizontally using only the transition
- Toilet connection kit DN 90
- Suitable for floor thicknesses up to 30 cm
- Distance between ceramic mounting bolts 180 or 230 mm
- Mounting materials for wall installation
- Sound insulation kit
Additional order:

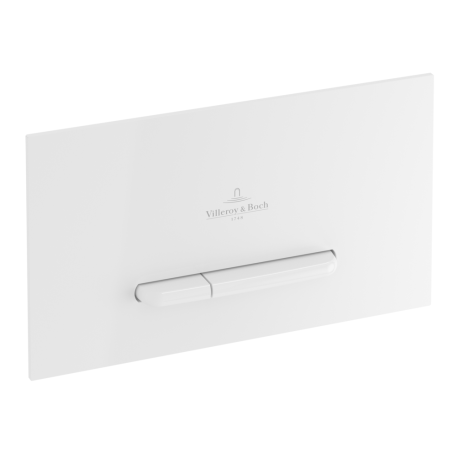

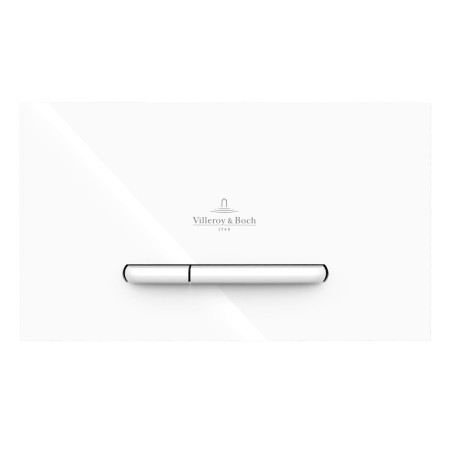

- Toilet flush plate (see flush plates)
- Mounting accessories for wall, corner, or wooden frame wall installation (not necessary)
- TECEone installation kit for standard concealed frames (not necessary)
Warranty: 10 years
Manufacturer / brand: TECE (Germany)
Product images are for illustrative purposes only and are examples. Video links in the product description are for informational purposes only, and the information provided may differ from the actual product. The colors, inscriptions, parameters, dimensions, sizes, functions, and/or any other features of original products may appear differently due to their visual characteristics, so please refer to the product specifications listed in the product descriptions. If you have any questions, please contact us via email or phone listed in the contact section.
