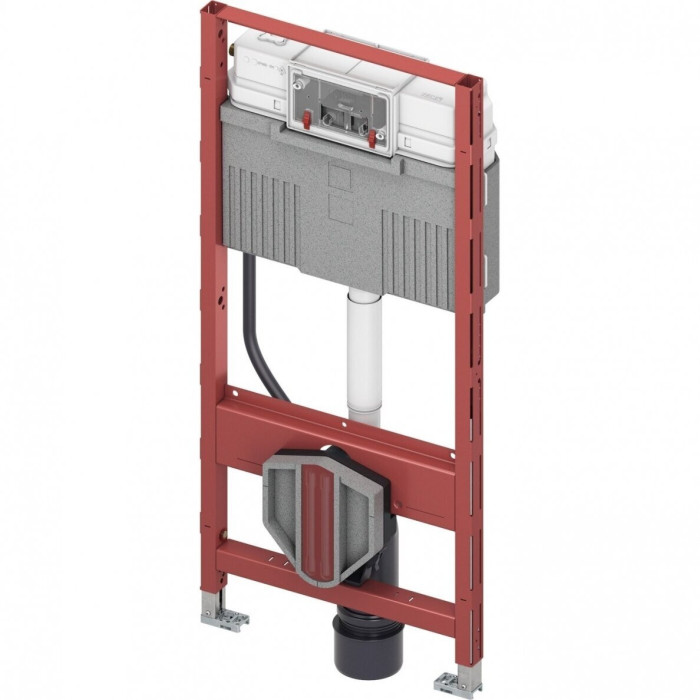

TECEprofil recessed universal toilet frame with Uni water tank, designed for connecting universal toilets with bidet function.
SKU:
9300379
227.54 €
/pcs.
vnt. 350.54 €
vnt. 350.54 €
188,05 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |

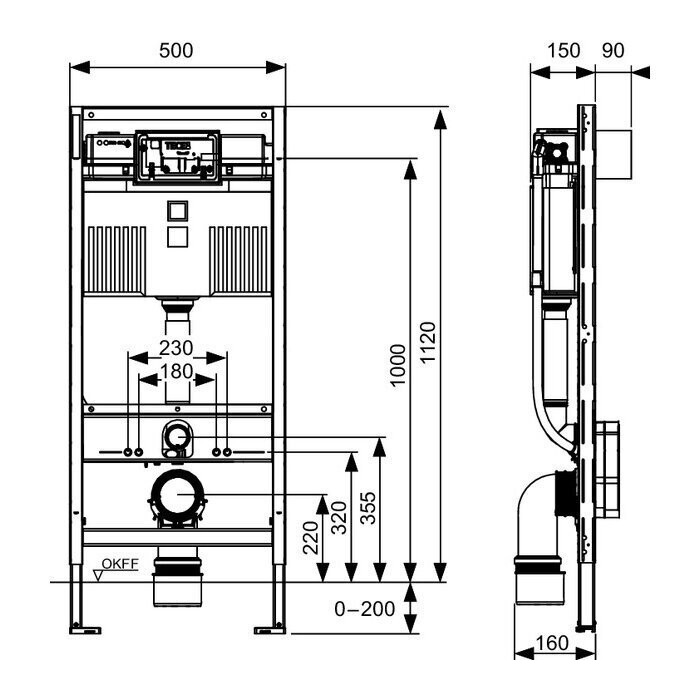

Potable universal toilet frame TECEprofil with Uni water tank, designed to connect universal toilets with bidet function, installation height 1120 mm
Toilet module with "easy fit" water flushing plate mounting system and
designed to connect universal toilets with bidet function. Toilet module,
designed to be mounted to the TECEprofil wall or to a masonry wall.
Uni water tank, control from the front or from above:
- Durable tank made of impact-resistant plastic, tested according to EN 14055
- Fully assembled and sealed water tank.
- Water connection on the side of the tank with 1/2" external thread, quick connection fitting can also be used.
- 10-liter capacity water tank; preset standard flush volume of 6 liters
- flush volume; option to set 4.5/7.5 or 9 liters
- of flush water at any time; designed for dual flush system
- reduced (3 liters) flush water volume. The remaining water can be reused
- for an additional flush.
- Insulation to prevent condensation
- Compatible with TECE flush plates and handles
- Depending on the flush plate, single or
- dual flush technology can be set
- "easy fit" water flushing plate mounting system
- Quietly operating hydraulic filling valve, first sound level group, according to DIN 4109
Module frame composition:
- Powder-coated sturdy mounting frame
- Two fastening screws and nuts M 12
- Two TECEprofil adjustable depth brackets for module mounting
- Toilet waste elbow DN 90 with transition DN 90/100, made of PP plastic
- Using only the transition, horizontal connection is also possible
- Toilet connection kit DN 90
- Box for various electrical connections
- Cover with protective caps
- Channel with a large niche for various water systems (connection points must be checked)
- Protective template for toilets with bidet function, including transformer wire
Additional order:
- Toilet water flushing plate (see flushing plates)
- Frame for hygiene tablets (control from the front)
- Mounting kit for universal toilets with bidet function 1120 mm
Note:
- If a toilet ceramic with a smaller mounting surface is used (i.e., the distance from the center of the fastening screw to the edge of the lower mounting surface is no more than 18 cm), e.g., V & B Memento, Subway 2.0, a set of metal supports 9041029 must be installed in the lower construction cavity.
Important:
If the water flushing plate is mounted at the front of the lowered underframe toilet, it may cover it when opened. In such cases, if possible, it is recommended to mount the water flushing plate from above.
Warranty: 10 years
Manufacturer / brand: TECE (Germany)
