Concealed universal toilet (WC) frame set TECEprofil Base (5 in 1)

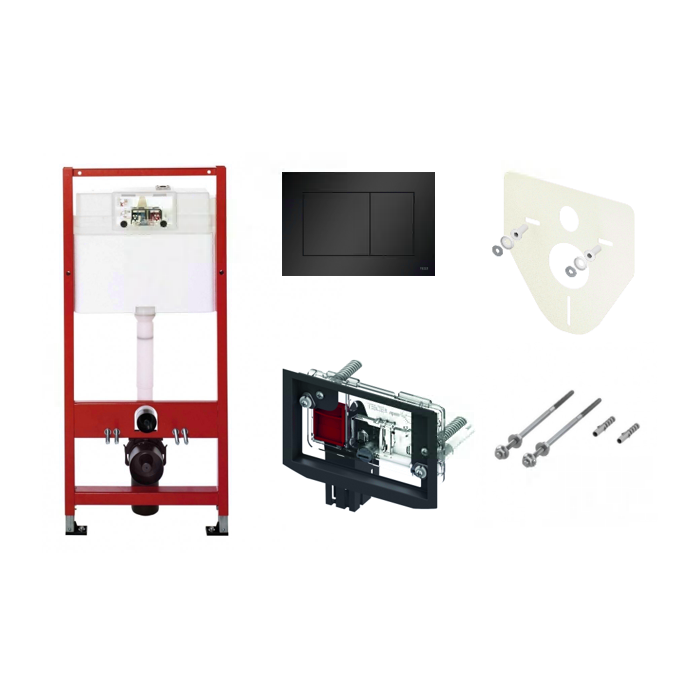

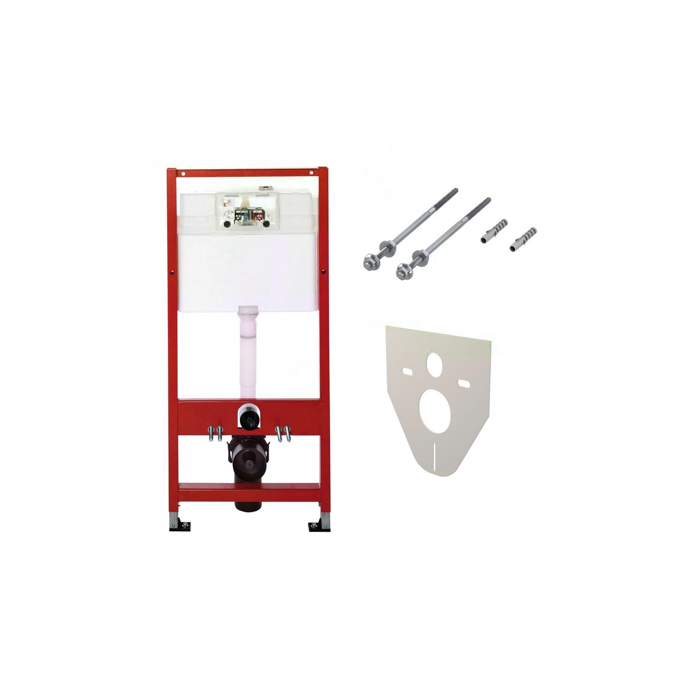

The set includes:
- TECEprofil Base concealed frame with fittings

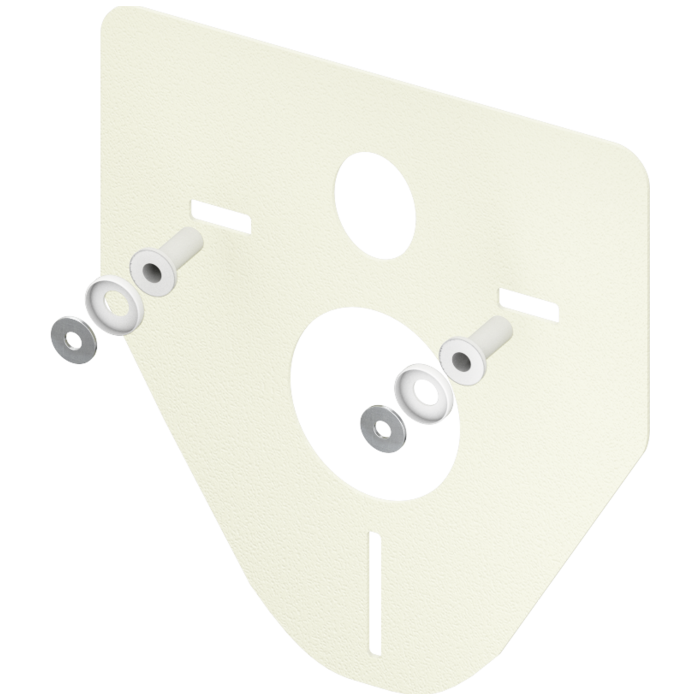

- Toilet sealing gasket
- TECEnow black-matt flush button

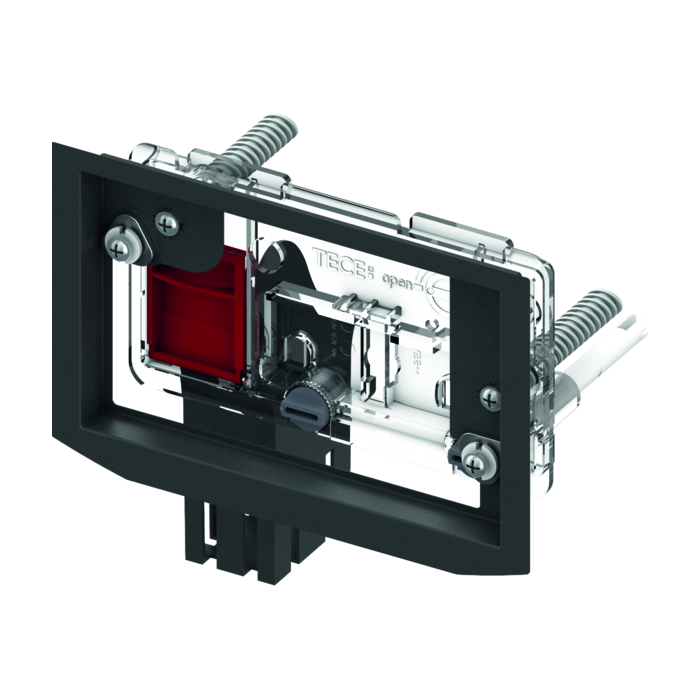

- Frame for WC tank tablets
Toilet module designed for installation separately against a solid wall and in metal or
wooden frame walls.
Base water tank, front control:
- Sturdy tank made of impact-resistant plastic, tested according to EN 14055
- Tank fully assembled
- Water connection at the top of the tank with 1/2" external thread, suitable for quick connection fittings
- Three-way shut-off valve, with water release function and built-in filling valve
- 10-liter capacity water tank; preset standard of 6 liters
- flush volume; option to set 4.5/7.5 or 9 liters
- of flush water; designed for dual flush system
- reduced (3 liters) flush water volume. The remaining water can be reused
- for an additional flush.
- Insulation to prevent condensation formation
- Quiet operating hydraulic filling valve, first sound level group, according to DIN 4109

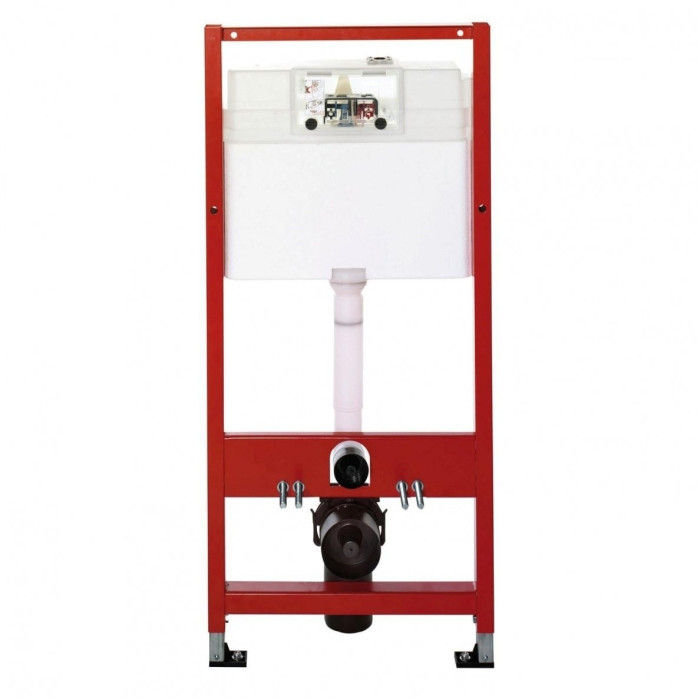

Module frame composition:
- Powder-coated sturdy mounting frame

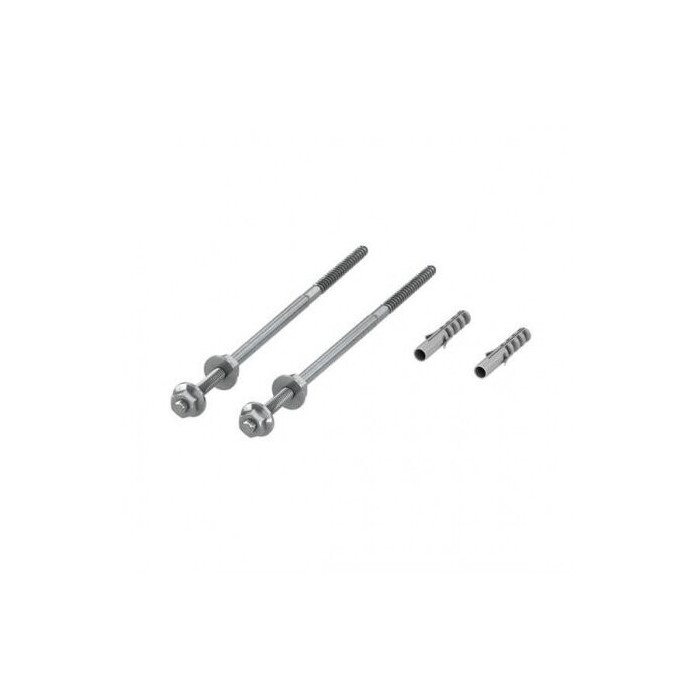

- Two M 12 fastening screws and nuts
- Mounting kit for wall installation
- Toilet waste elbow DN 90 with transition DN 90/100, made of PP plastic
- Using only the transition, horizontal connection is possible
- Toilet connection kit DN 90, including protective plugs
- White TECEbase dual flush system plate
- Sealing gasket for the toilet
Important:
- Only the TECEbase flush plate can be installed. Other flush plates or accessories are not suitable.
Additional order:
- TECEone installation kit for standard concealed frames (not necessary)
- Protective template/electrical connection kit for toilets with bidet function
Note:
- If using toilet ceramics with a smaller fastening surface (i.e., the distance from the center of the fastening screw to the edge of the lower fastening surface is no more than 18 cm), e.g., V & B Memento, Subway 2.0, it is necessary to install a set of metal supports 9041029 in the lower construction cavity.
Warranty: 10 years
Manufacturer: TECE (Germany)
