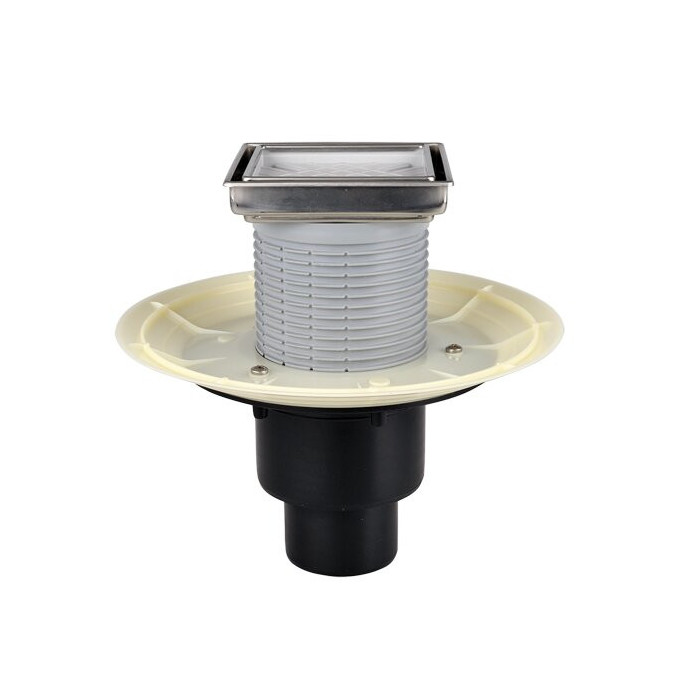

Vertical trap for adhesive tile HL with "dry" siphon Primus, Klick-Klack grate, 310NPr-3020
SKU:
310NPR-3020
107.00 €
/pcs.
vnt. 135.00 €
vnt. 135.00 €
88,43 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |
Vertical trap for tile HL with "dry" siphon Primus, Klick-Klack grates, 310NPr-3020
Technical specifications:
- Flow rate HL310N-3020: 0.67 l/s HL310NPr-3020: 0.5 l/s
- Material Polypropylene (PP), polyethylene (PE), acrylonitrile-butadiene-styrene (ABS), stainless steel V4A
- Connection DN50/75/110, vertical discharge connects with a socket pipe or is welded to a PE pipe

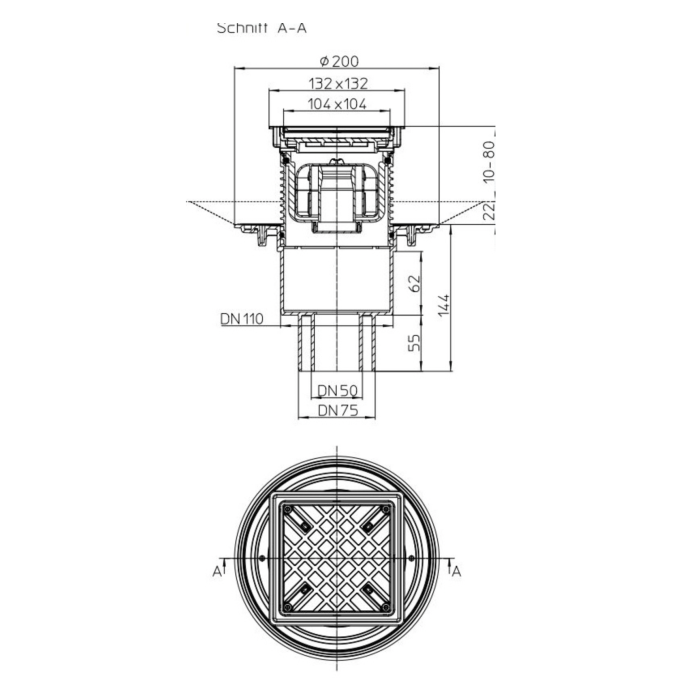

- Installed element With a stainless steel V4A frame 132 x 132 mm; adjustable according to
- installation height 10-80 mm
- Visible parts Ceramic tile insert 104x104x12 mm and stainless steel V4A frame
- Hydro seal HL310N-3020: height 50 mm
- HL310NPr-3020: PRIMUS
- (does not allow sewage odors when the hydro seal is dry)
- Standard EN 1253, Önorm B2501
- Load class K3 – max. 300 kg
- Recommended For barrier-free showers, water wellness complexes
- Additional information
- Wastewater temperature up to +85 ºC
- For indoor use
- Additional Installation instructions
More information in downloadable files.
Manufacturer: HL (Austria)
