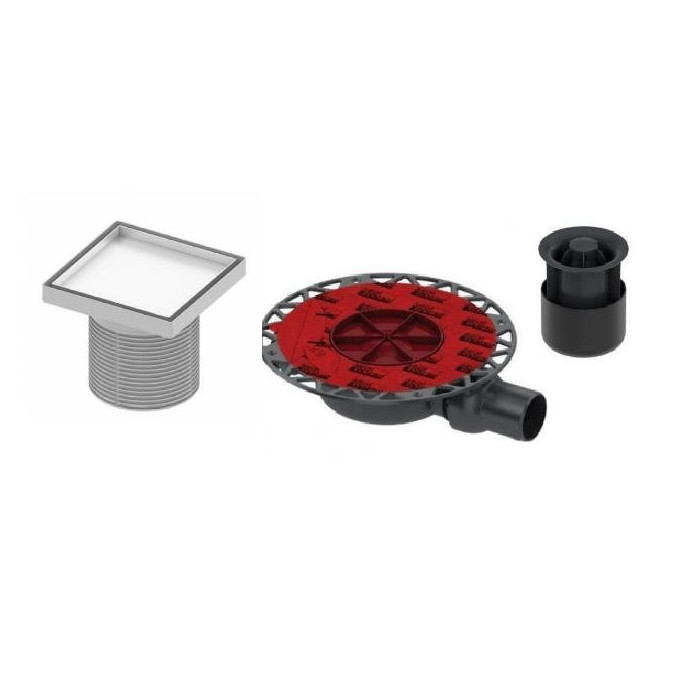

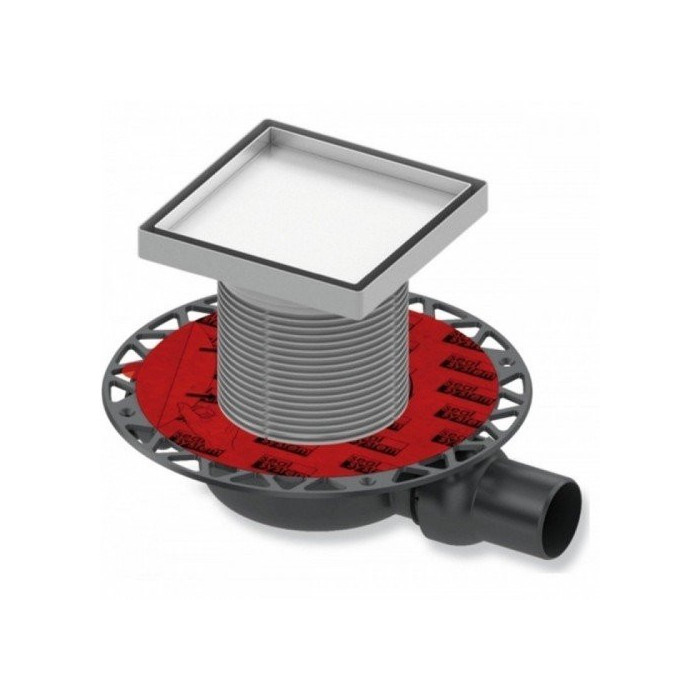

Stainless steel trap sets "''dry'' for tiled ""plate"" TECEdrainpoint S, 150 x 150 mm, standard siphon
SKU:
3601500 + 3660011 + 3695005
112.00 €
/pcs.
vnt. 149.30 €
vnt. 149.30 €
92,56 € (Tax excluded)
-
Safe shopping -
Fast delivery -
Money back guarantee
| LPExpress | 2-3 business days |  |
| Collect in store | Pick up from our pick-up point |  |
| Courier delivery | 2-3 business days |  |

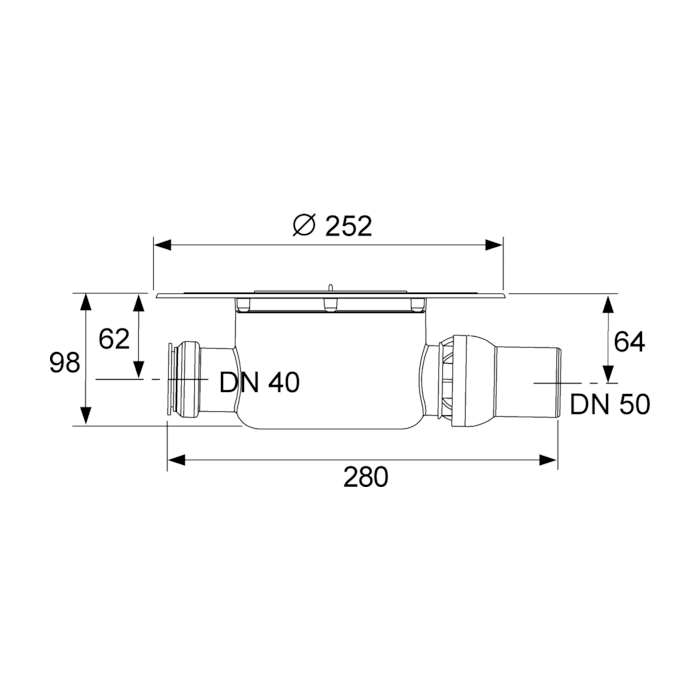

Stainless steel drain set "dry" for tile "plate" TECEdrainpoint S, 150 x 150 mm, with standard siphon, horizontal

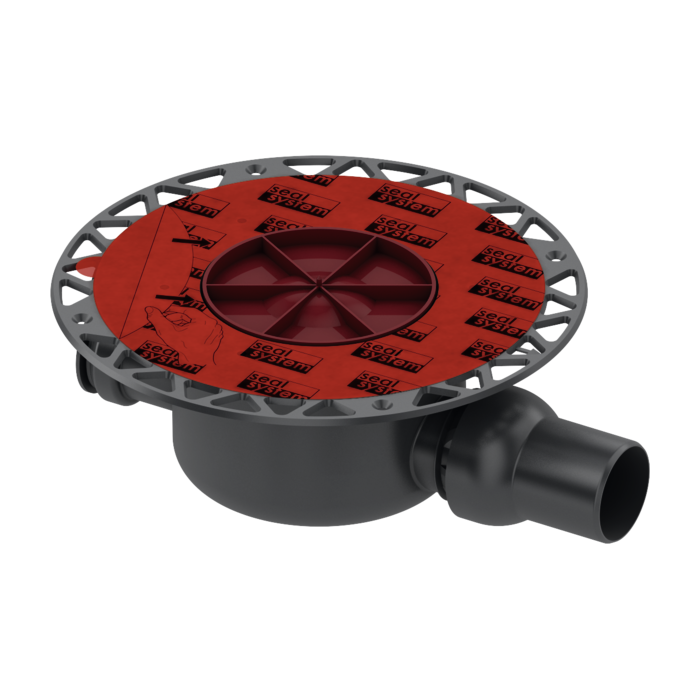

"Dry" type floor drain set TECEdrainpoint S 112, horizontal, with standard siphon, DN 50 for tile installation
Contents:
- Drain body adjustable sideways DN 50, horizontal, with standard siphon, plastic (PP)
- With universal flange for waterproofing
- With ball elbow
- With additional connection DN 40 and cap
- With removable membrane odor trap (already included)
- Flow rate from 0.80 to 1.20 l/s
- Lower water height: 50 mm
- Top part for tile installation
- TECEdrainpoint decorative grate made of stainless steel (1.4301 (304), dimensions: 100 x 100 mm, polished surface, load class K3 (up to 300 kg)
- Purpose: in shower cabins, bathrooms, boiler rooms, effectively protects against foreign odors

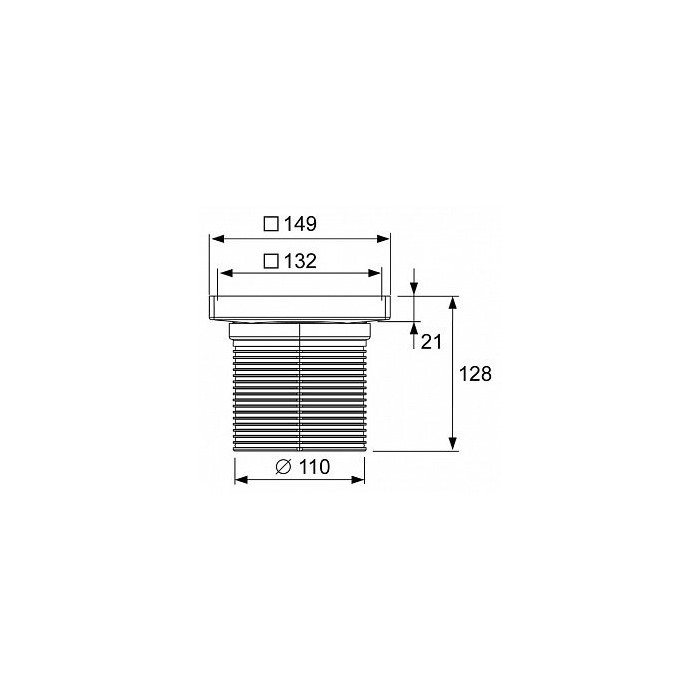

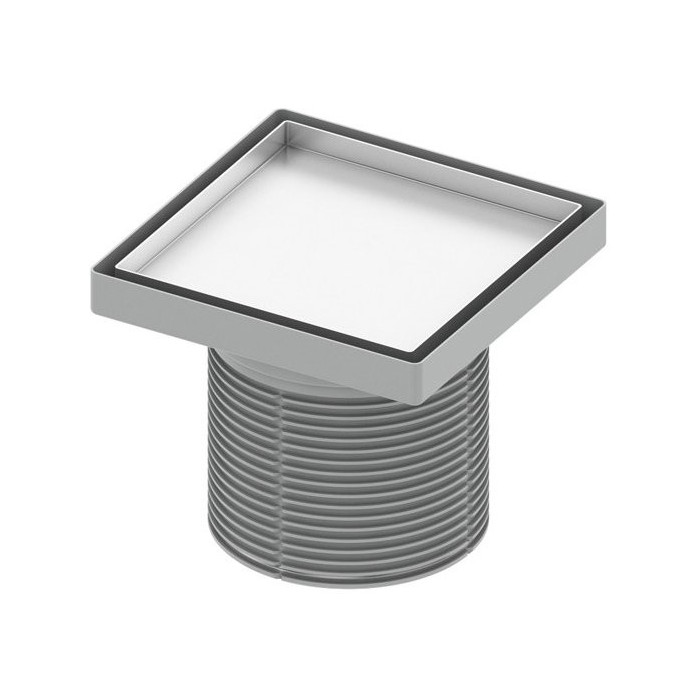

Stainless steel grate for tile "plate" TECEdrainpoint S, 150 x 150 mm
Technical specifications:
- Outer diameter = 110 mm;
- Sealing ring
- Height adjustment = from 23 to 118 mm
- Base made of plastic (ABS)
- Frame made of stainless steel 1.4301 (304)
- Grate made of stainless steel 1.4301 (304), dimensions 142 x 142 mm, polished surface, load class K3 (up to 300 kg)
Membrane odor trap TECEdrainpoint S, for DN 50 and DN 70 drains
Plastic (PP) odor trap with internal sealing membrane.
Protects against evaporation, odors, and parasites
- Suitable for all horizontal and vertical DN 50 and DN 70 drains
- Two-level protection against unpleasant odors - water and sealing membrane.
Ordered separately, depending on the sealing method:
- "Seal System" sealing gasket - tested and certified waterproofing
- Compression ring and sealing gasket for flange connections
Comes with a protective cap, protective film, and installation instructions.
Warranty: 10 years
Manufacturer: TECE (Germany)
